1.2L REVOTRON ENGINE
111

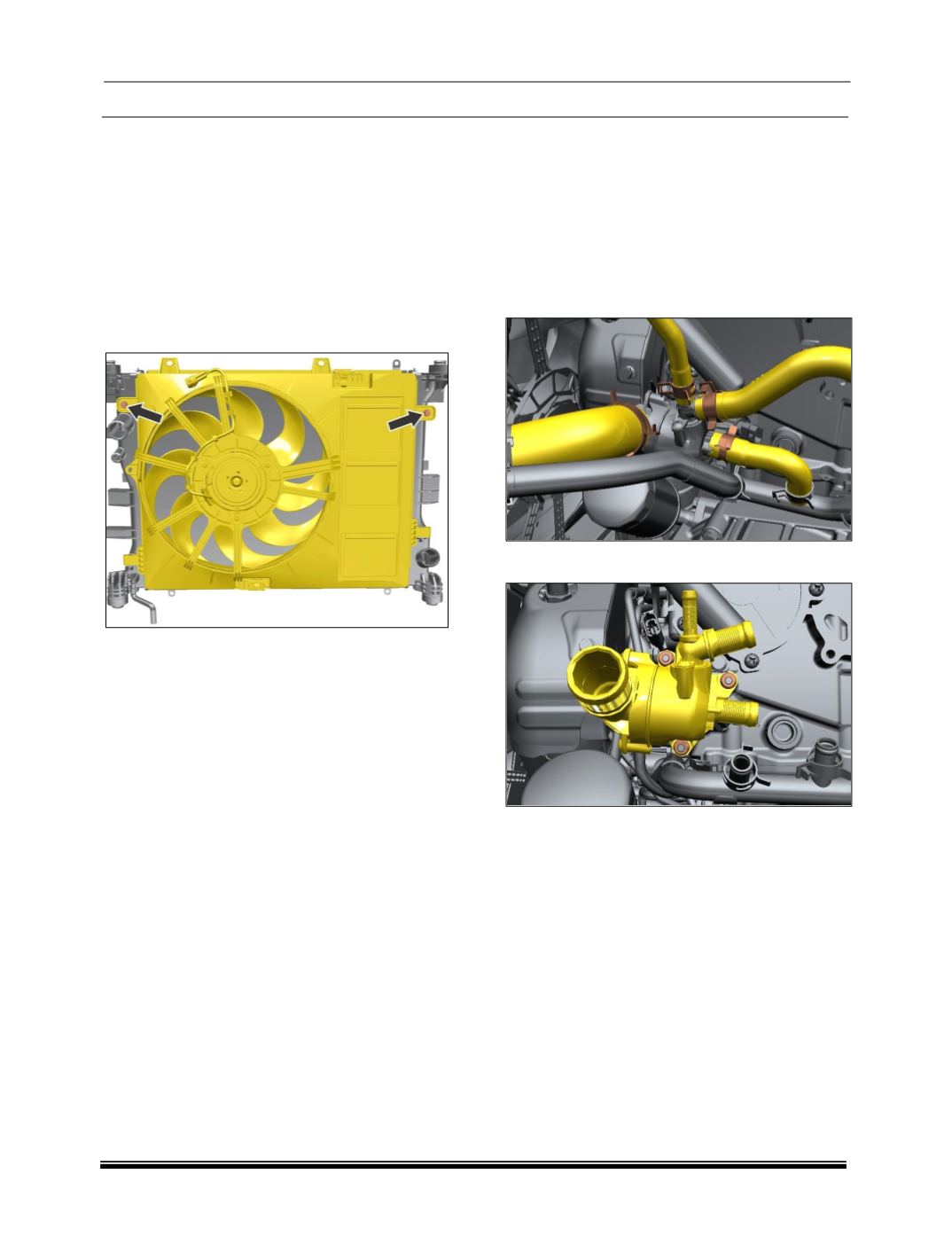

RADIATOR FAN SHROUD
REMOVAL
1.
Drain the coolant and remove the Coolant
tank.
(For procedure refer “Coolant
Replacement” in Engine maintenance section)
2.
Disconnect the electrical connections to the
radiator fan.
3. Remove the two fasteners to separate fan
shroud.
4. Pull out the shroud from the top.
FITMENT
For fitment slide the shroud into the mounts till it
snaps at the top mounts.
THERMOSTAT REMOVAL
1. Drain
the
coolant.
(Refer
“Coolant
Replacement Procedure).
2. Access the thermostat either from front right
wheel side by removing the arch liner or from
top by removing air filter assembly.
3. Remove all the spring band clip and
disconnect all the hose connections
.
4. Remove the cover mounting nuts
.
FITMENT
For fitment follow the reverse order of removal.
Tighten fasteners to the recommended
torque
.
Thermostat cover mounting: M6 Bolt– (1 Kg-m)
Checking procedure of thermostat
1. Remove thermostat element from thermostat
housing.
2. Mount thermostat element in a suitable fixture
and place the fixture in a vessel filled with
water.
3. Fix dial gauge with its spindle on valve surface
with a pretension of 0.5mm
4. Heat the vessel and measure the water
temperature with proper thermometer.
