1.2L REVOTRON ENGINE
109
CAUTION
Never leave the condenser lines open
immediately cover them with caps,
otherwise the desiccant which is in-built in
the condenser may absorb the moisture
from surrounding air and get contaminated

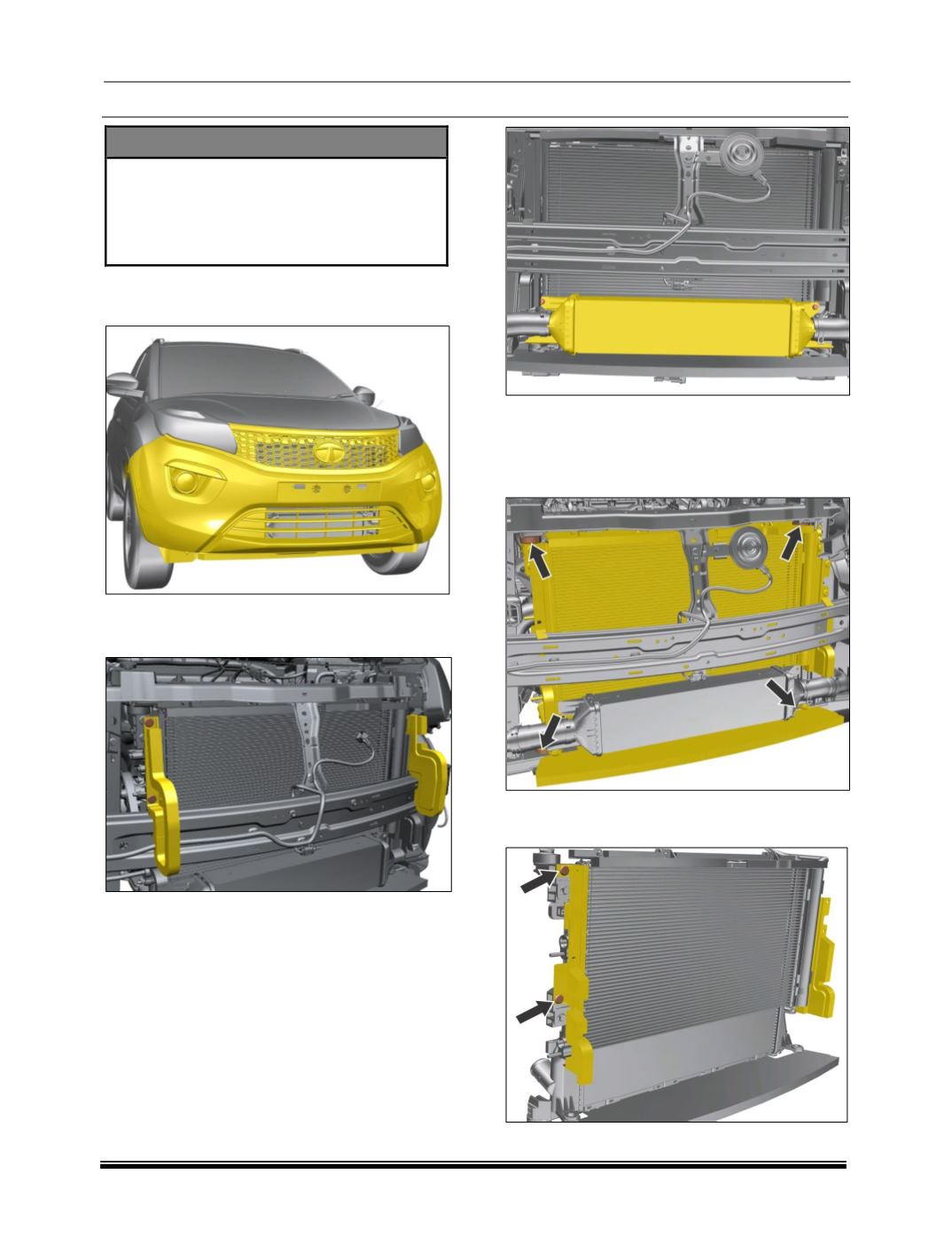

9. Remove front bumper and the splash guard.
(For procedure refer Body section).
10.Pry out the sealing rivets and remove both the
LH and RH front condenser sealing.
11.Remove the intercooler mounting bolts on the
condenser and unmount the intercooler.
12.Tilt the radiator inwards and down the radiator
and condenser assembly from the grommet on
the top mounts, both LH and RH
simultaneously.
13.Pry out the sealing rivets and remove both the
LH and RH side condenser sealing.
