ALTROZ SERVICE MANUAL

SUSPENSION

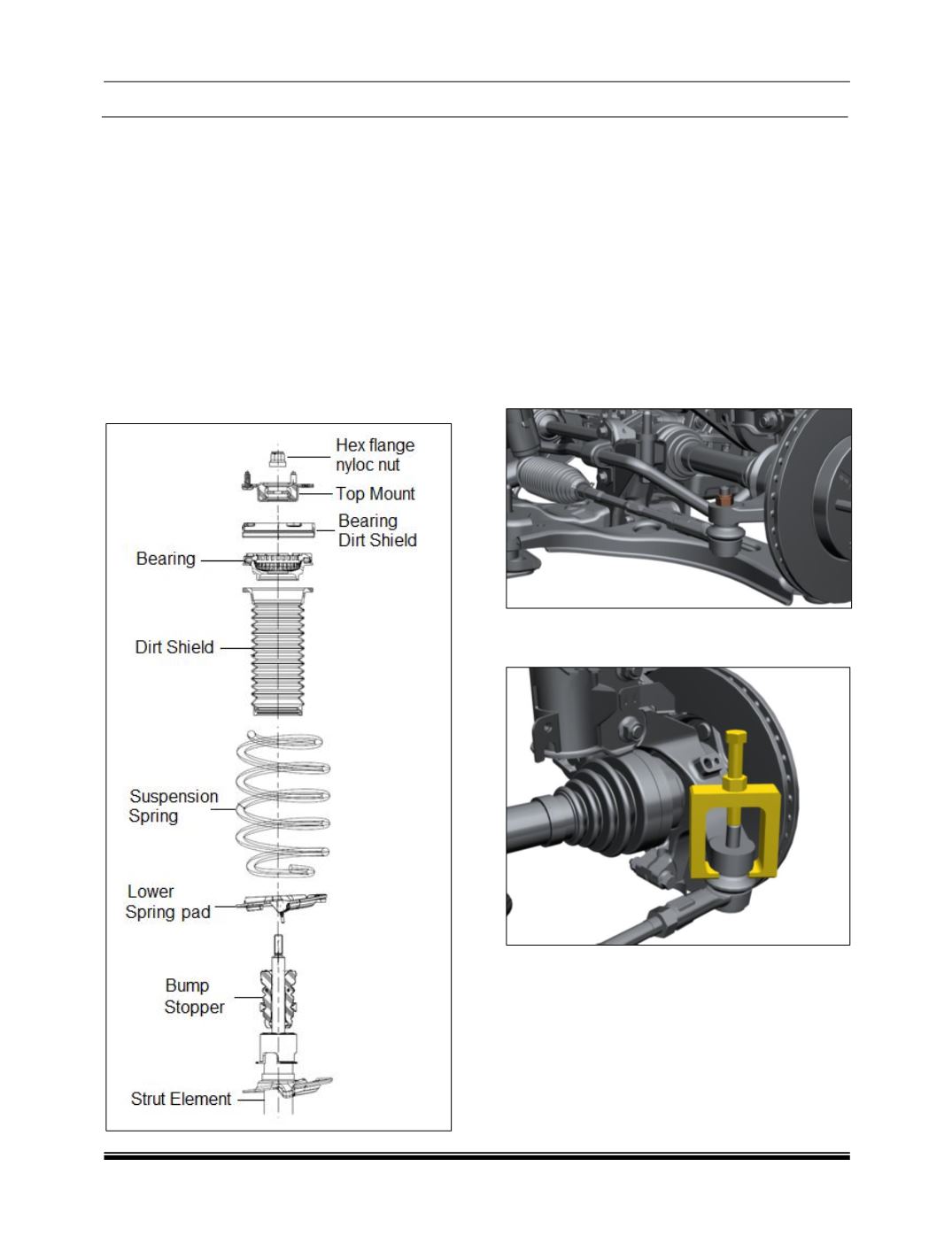

5. Assemble dust cover on the spring (ensure dust

cover is properly located on spring).

6. Assemble bearing on the dust cover.

7. Assemble bearing dust cover on bearing.

8. Assemble top mount on bearing (ensure top

mount M8 bolt head should be placed in the

bearing slots).

9. Fit Hex sp. Flange nut (1) and tighten to 6-7 Kg-

m torque. Hold the piston rod by Allen key (A/F:

6 mm) to stop piston rod rotation during

tightening of nut.

10.Remove spring compression tool carefully.

11.Lock the dust cover with striker cap.

9.3 ON VEHICLE WHEEL HUB REMOVAL AND

ASSEMBLY

REMOVAL

Place the vehicle in the two-post lift and apply

parking brake.

2. Remove wheel rim cover.

3. Loosen the wheel mounting bolts.

4. Lift the vehicle till the front wheels are off the

ground.

5. Unscrew the wheel mounting bolts and remove

the wheel.

6. Unscrew and remove tie rod ball joint nut.

7. Remove tie rod ball joint using puller part No.

2702 5890 4602.

8. Support the lower arm from bottom.

9. Apply Brake.
