SUSPENSION

23

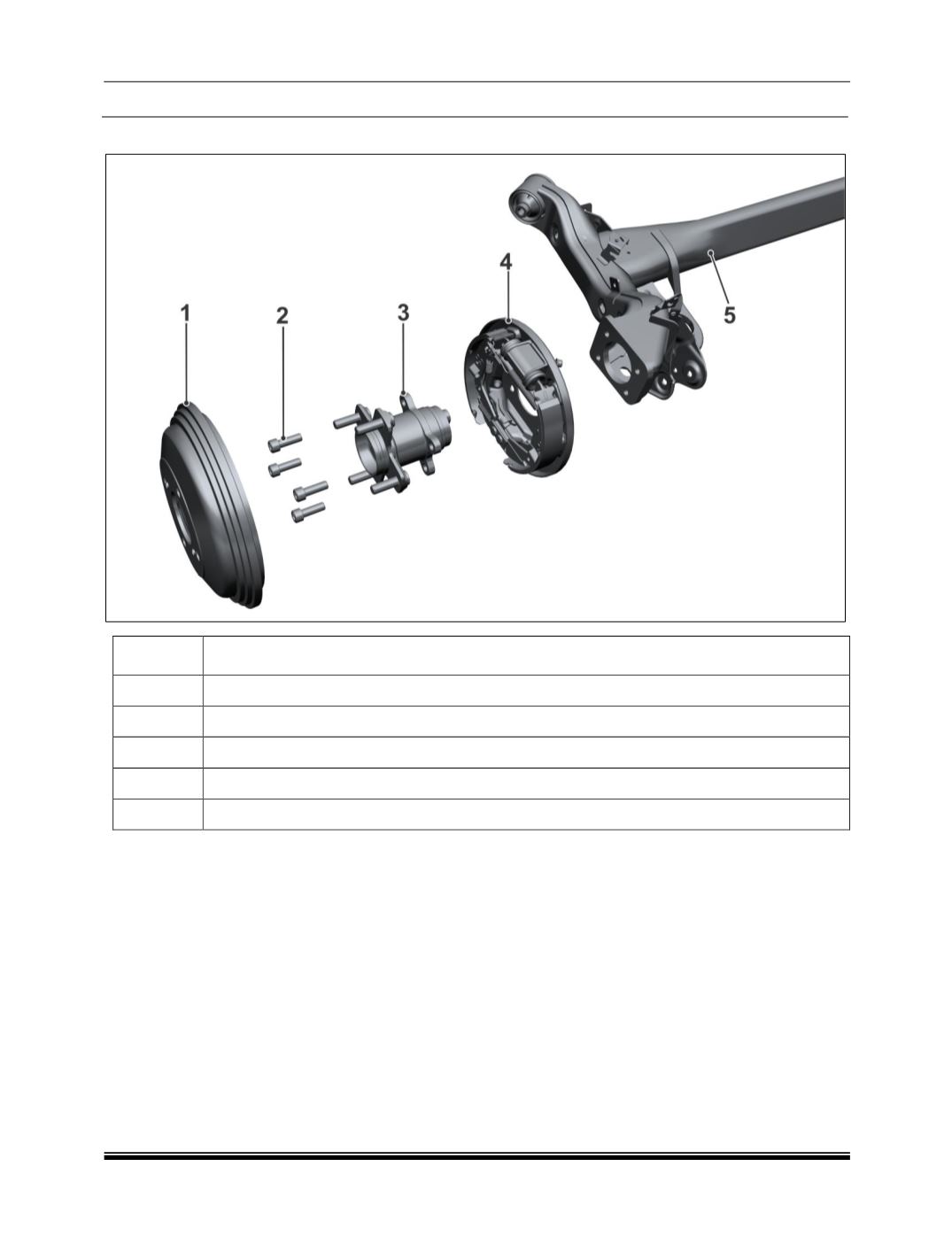

B) REAR HUB ASSEMBLY EXPLODED VIEW

SR. NO.

DESCRIPTION

01

BRAKE DRUM REAR

02

CAP SCREW M10X30

03

GEN 3 BEARING

04

REAR BRAKE DRUM ASSEMBLY

05

REAR TWIST BEAM
