SUSPENSION
30
9.4 ON BENCH SUB ASSEMBLY OF KNUCKLE
AND WHEEL HUB:
Clean all the parts thoroughly and replace damage
/ worn out parts.

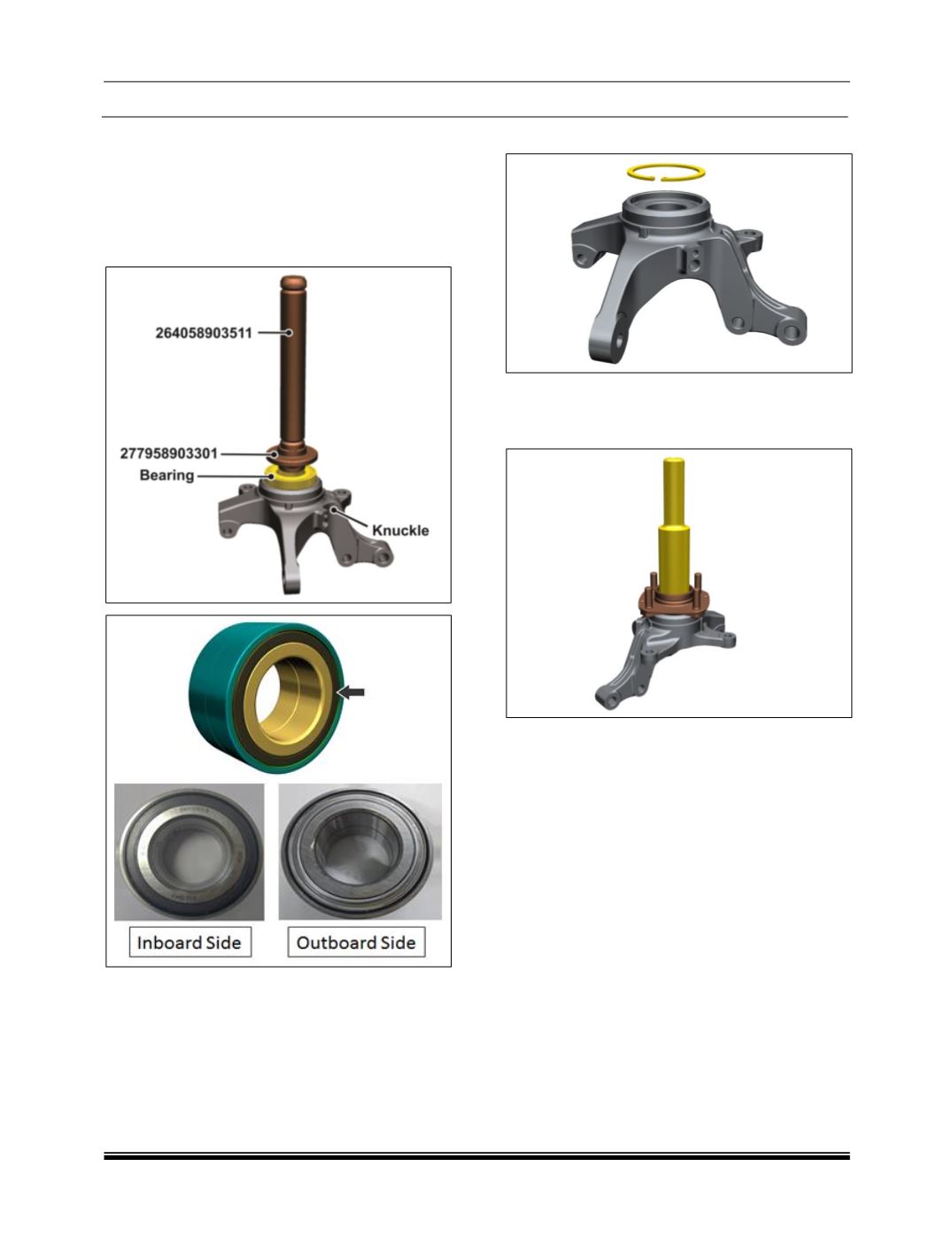

1. With the help of drift part No.
2779 5890 3301
and
2640 5890 3511
fit bearing in the knuckle.
NOTE:
While assembling front Hub bearing magnetic tape
should be at inboard side.
PRECAUTION:
Use a new hub bearing and new circlip. Oil the
bearing housing in knuckle carrier and hub itself.
Old bearing, even if serviceable cannot be reused.
2. Fit the circlip.
3. Place the knuckle assembly over the hub. Using
drift part No. 2576 5890 4401 press the knuckle
assembly on the hub.
NOTE:
Ensure mounting surfaces of bearing on
steering knuckle and hub should be free from
dust, rust, foreign particles, oil and grease etc
prior to assembly.
Handle bearing with clean, dry hands and
never use hand glove while assembling.
Never hammer the bearing while assembly
and removal.
No damages to bearing is permitted.
During pressing the bearing into knuckle,
ensure marking to be at inboard Side of
vehicle.
