SUSPENSION
22
8. EXPLODED VIEWS REAR SUSPENSION

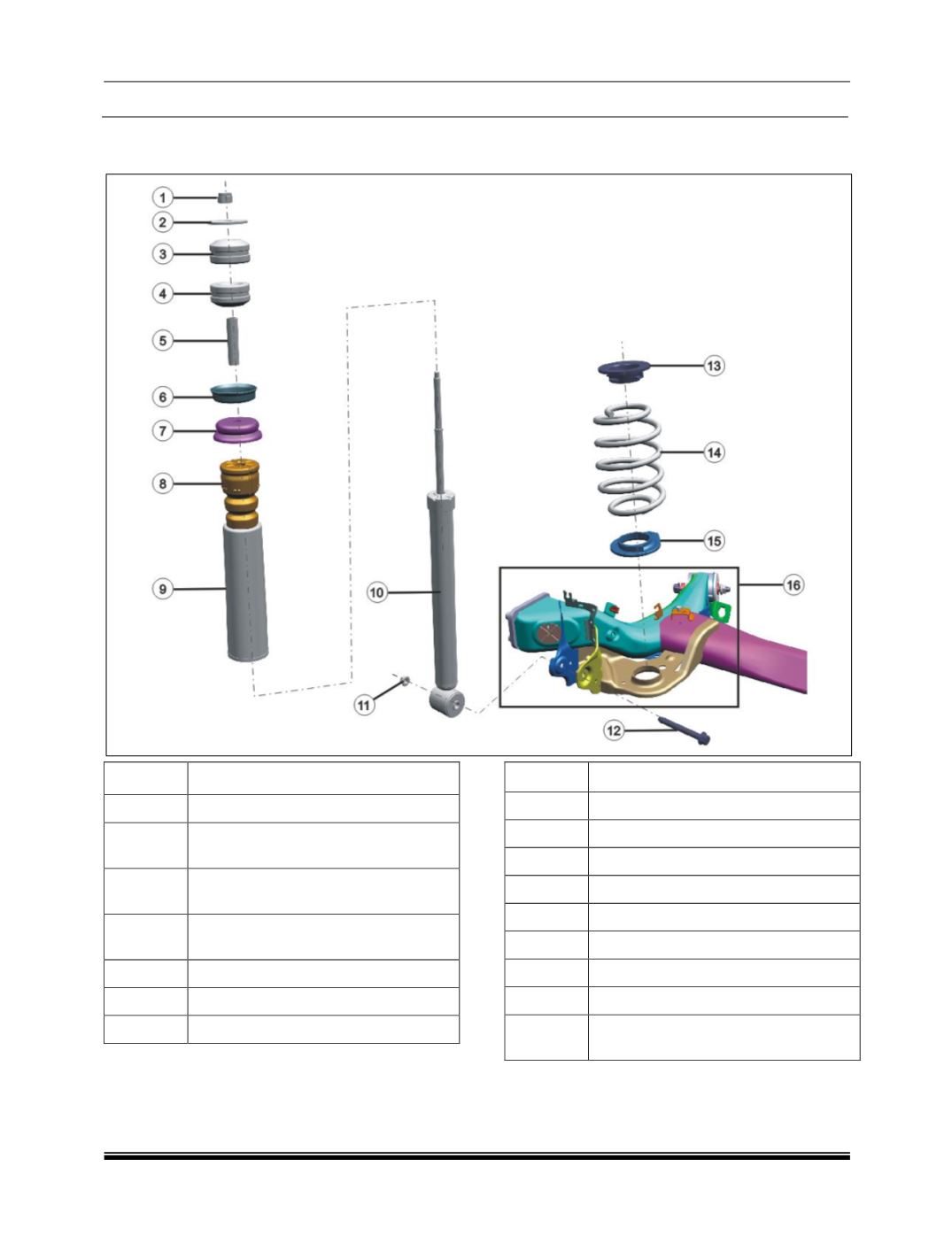

A) REAR SHOCK ABSORBER AND SPRING EXPLODED VIEW
SR. NO.
DESCRIPTION
01
NYLOC NUT M10
02
WASHER
REAR
SHOCK
ABSORBER
03
TOP RUBBER REAR SHOCK
ABSORBER
04
TOP RUBBER REAR SHOCK
ABSORBER
05
SLEEVE REAR SHOCK ABSORBER
06
CUP REAR SUSPENSION TOWER
07
CUP BUMP STOPPER
SR. NO.
DESCRIPTION
08
BUMP STOPPER,
09
DUST COVER
10
DAMPER ASSEMBLY
11
HEXFL NUT AM10X1.25
12
HEX FLANGE BOLT
13
NATURAL RUBBER
14
REAR SPRING
15
RUBBER SEAT
16
ASSY TWIST BEAM WELDED
STRUCTURE
