9. ON VEHICLE AND ON BENCH REMOVAL
AND ASSEMBLY PROCEDURE

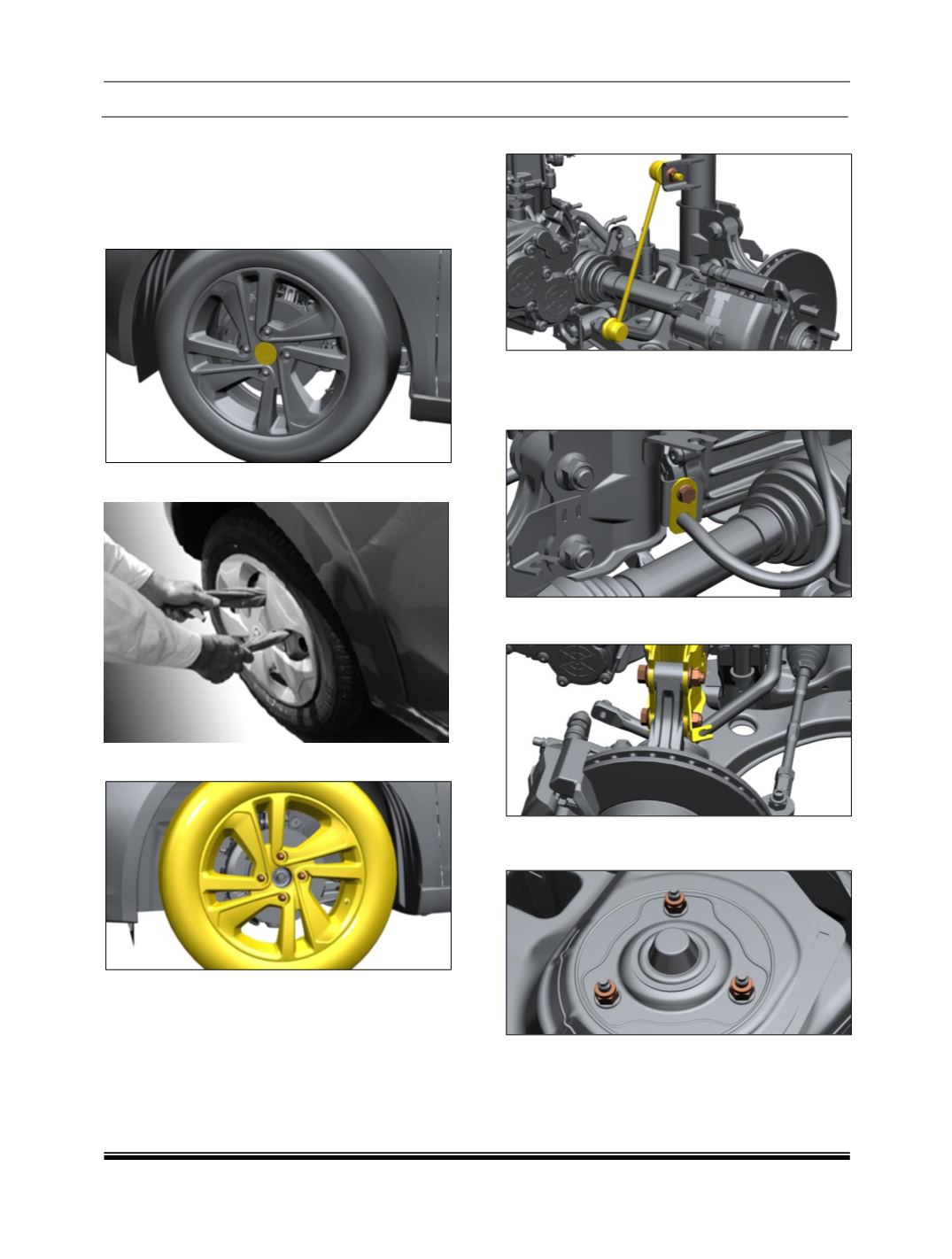

9.1 ON VEHICLE FRONT STRUT REMOVAL
AND ASSEMBLY
1. Remove wheel cap.
2. Remove wheel rim cover (if fitted).
3. Loosen wheel nuts.
4. Lift the vehicle using two-post lift allowing the
front suspension to hang freely.
5. Unscrew wheel-mounting bolts and remove the
wheel.
6. Remove ABS wheel speed sensor harness
mounting bolt (if equipped).
7. Remove the Stab link
8. Remove the brake hose mounting from the
strut.
9. Remove the clamp on front brake hose.
10.Unscrew the strut holding bolts (Camber bolt)
from the Knuckle.
11.Remove the Leaf screen Cover.
12.Loosen & Remove strut top mounting Nuts.
13.Remove strut assembly from bottom.
ASSEMBLY:
1. Carry out the
above
step in reverse order for its
assembly.
