1.2L REVOTRON ENGINE
95

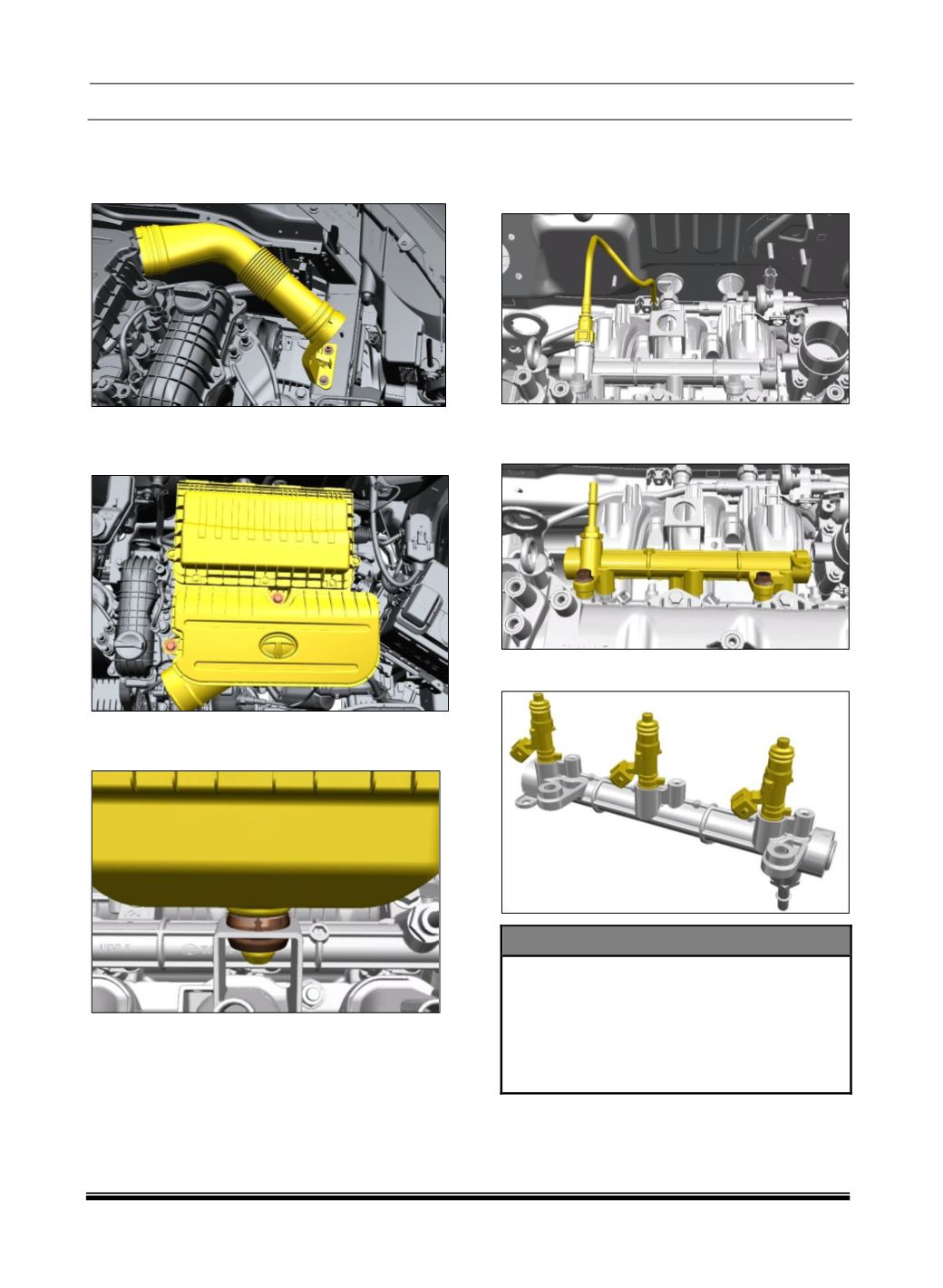

C. AIR FILTER ASSEMBLY
1. Remove the snorkel from snorkel mounting
bracket.
2. Disconnect the all hose clips.
3. Remove the Air filter mounting bolts (2 nos.).
4. Remove the air filter from grommet in upward
direction
and remove out from vehicle.
FITMENT
For fitment follow the reverse order of removal.
D
.
INJECTION SYSTEM
1. Remove Air filter.
2. Remove the fuel supply connection.
3. Remove the fasteners of rail and remove out
the rail along with injector.
4. Disconnect the injector from rail.
NOTE
Injector should be tagged as soon as it is
removed to avoid chances of it being
interchanged. Since the code of each
injector is calibrated to the EMS, whenever
an injector is replaced it codes of the
respective injectors should be fed in the
EMS ECU using diagnostic tool.
FITMENT:
Follow the reverse order of removal for fitment.
Vacuum clean the injectors.
