1.2L REVOTRON ENGINE
101
FITMENT
Follow the reverse order of removal for fitment.

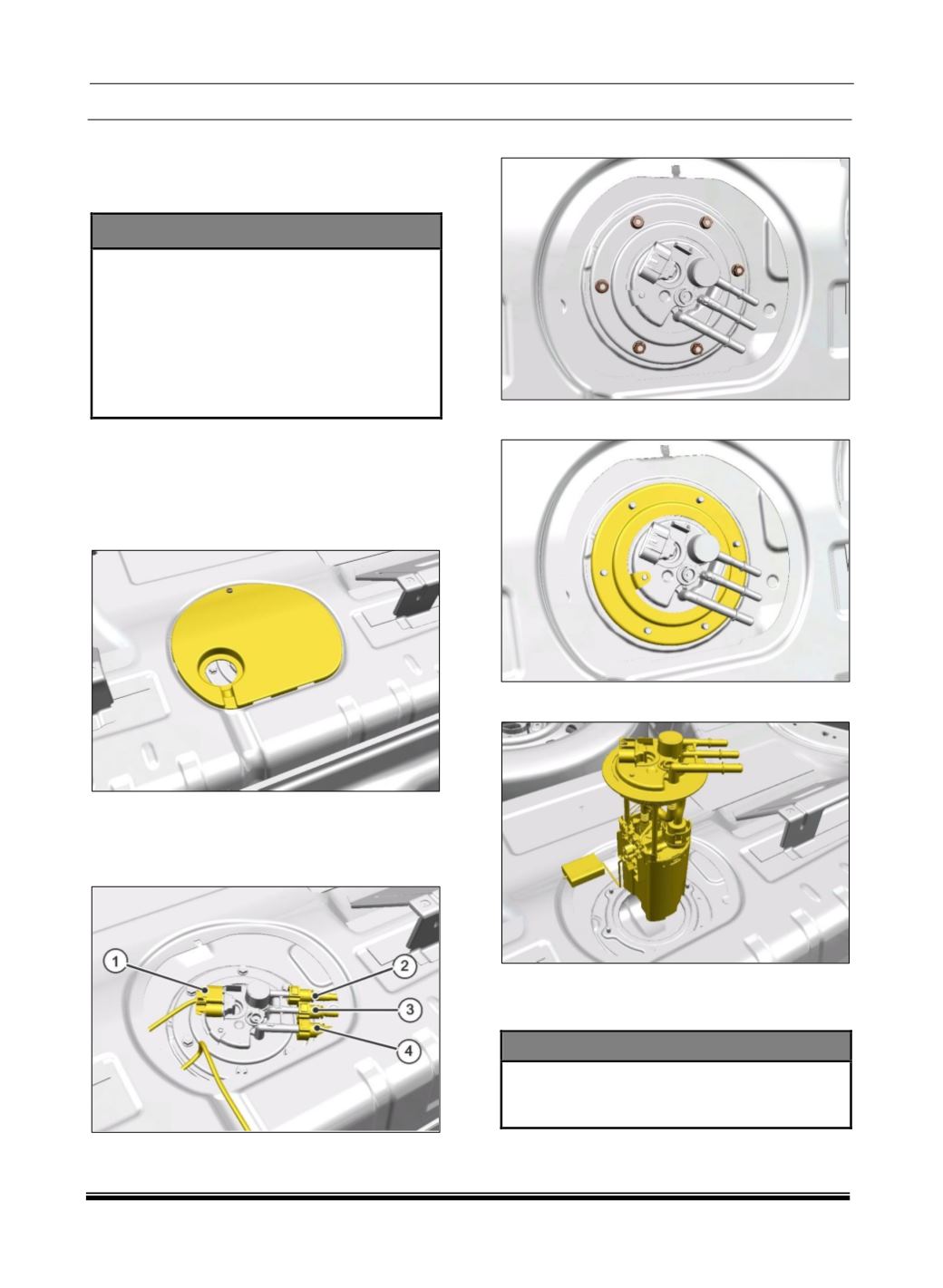

TANK UNIT REMOVAL
CAUTION
Unless replacement is necessary, Tank unit,
fuel level sensor should not be removed
from the tank since the rubber parts i.e.
gasket, seals etc. may harden when
exposed to air and light.
Never apply an excessive force to the tank
unit nipple or lead wire. This may result in
bent or poor contact.
1. Fold the 2
nd
row Seat and somersault it to
access the in tank pump cut out.
2. Lift the carpet with foam at the cutout.
3. Loosen and remove the four screws of the
cutout cover and remove it.
4. Disconnect the connecter (1) and then
disconnect the fuel lines i.e. Delivery line (2),
Return Line (3) and the Tank pressure valve
line (4).
5. Loosen and remove the 6 mounting nuts.
6. Remove the locking ring.
7. Lift the in-tank pump carefully out from the tank.
FITMENT
Follow the reverse order of removal for fitment.
INSPECTION
Use multimeter to confirm that the resistance of
the fuel level sensor changes with the level of
float position.
