1.2L REVOTRON ENGINE
100

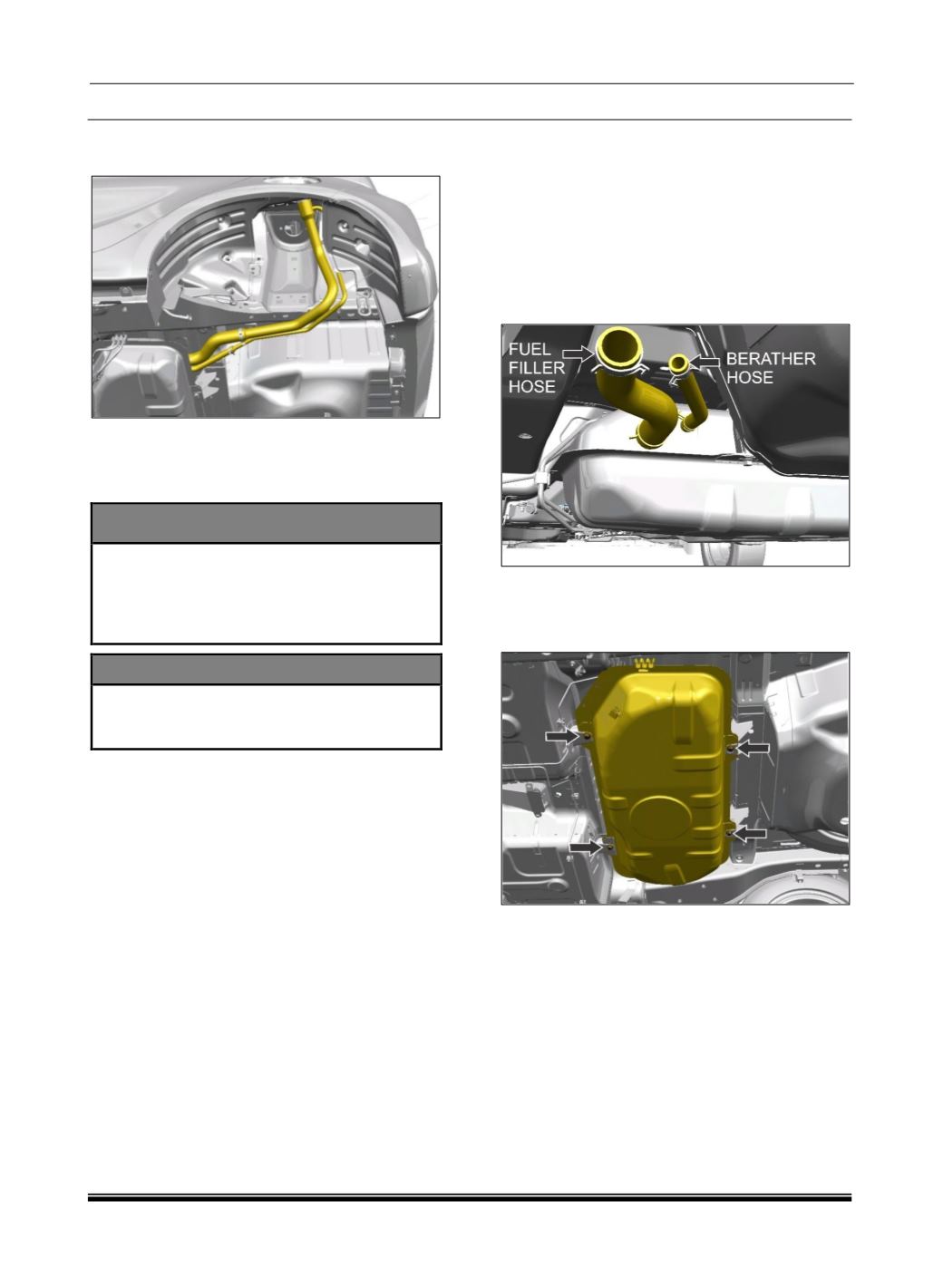

6. Take out fuel filler assembly along with breather
from body shell.
INSPECTION
Check if dust has blocked the 2 way cap, change
cap if found defective.
WARNING
A small amount of fuel may be released after
fuel lines are disconnected. To avoid the
chance of injury, cover the pipe to be
disconnected with cotton cloth. Do not use
cotton waste..
CAUTION
To avoid damage to vapour hoses while
disconnecting, slide back the clamps then
twist the lines as you pull.
FITMENT
Follow the reverse order of removal for fitment.
FUEL TANK
REMOVAL
1. Place the vehicle in a 2 poster lift.
2. Disconnect the electrical connections of the in-
tank pump and the fuel lines. Refer In-tank
pump removal process.
3. Disconnect the fuel filler hose and the breather
hose.
4. Support the fuel tank from below.
5. Remove the four mounting bolts from tank and
lower the tank carefully.
INSPECTION
Check all hoses and pipes connected to fuel
tank for leaks, loose connections, deterioration
or damage. Replace if necessary.
Check fuel pump and fuel level gauge gaskets
for leaks, cracks etc. Replace if necessary.
Visually inspect fuel tank for leaks and
damage. Replace if necessary.
Check TPV for dust accumulation. Clean if
required.
