Appendix 2 - Reading Input Output Resistance value using Service tool

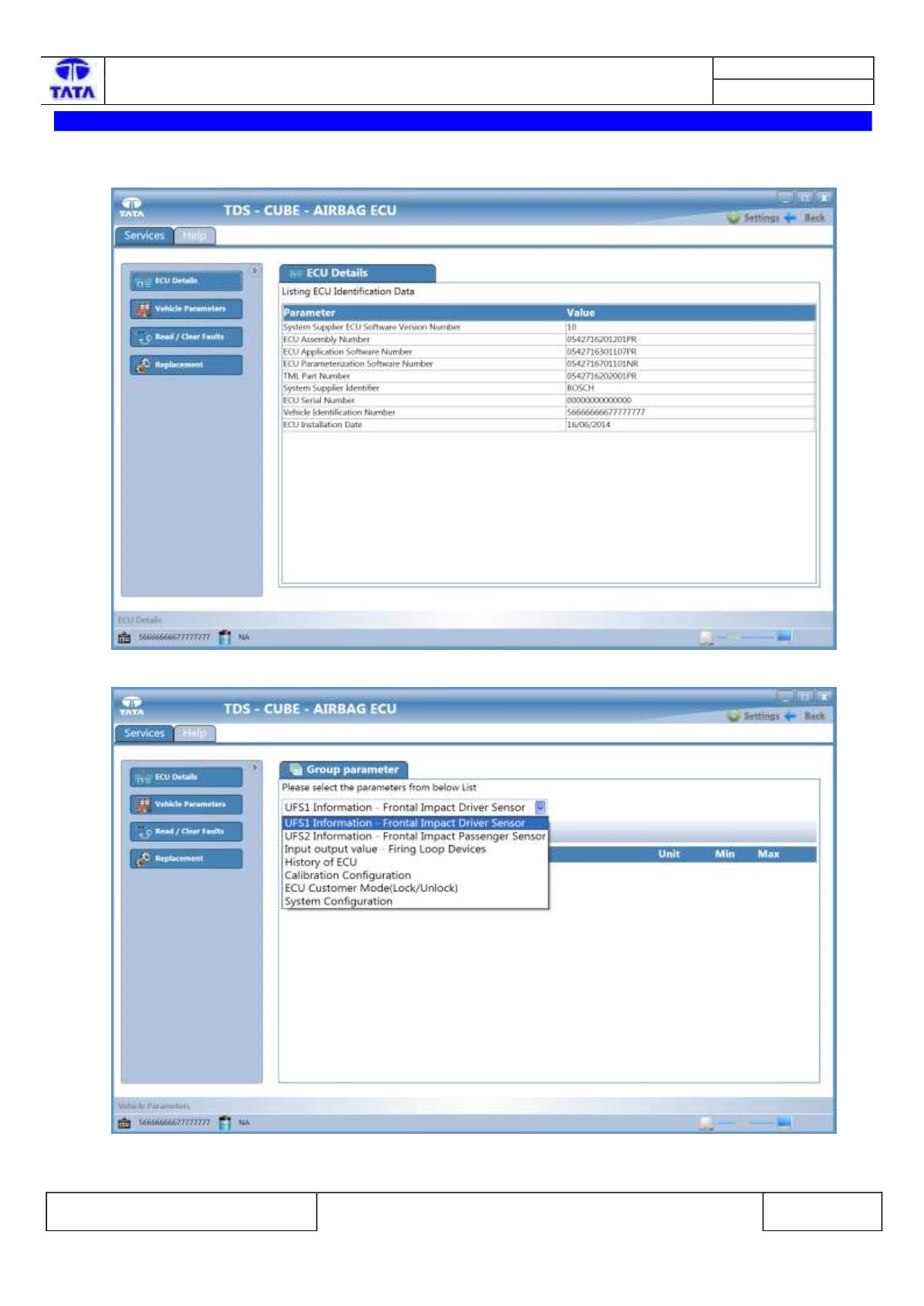

Please follow the below steps to read Input Output resistance value of Firing Loop Devices using Service tool:-

1. Select “

Vehicle Parameters

” tab.

2. Select “

Input output value – Firing Loop Devices

” from the drop down menu

3. Read the Resistance “

Value

” of the respective Firing Loop.
