Transponder & CAN based Immobilizer (Continental)
Part Replacement handling – Service Documentation
TITLE
: Immobilizer (Conti) Service Manual-Aria Eagle
xxxx
Date
: 28-08-2015
Version
: 0.1
Page
:
5 of 25
Prepared :
Amanulla Bugga
Approved: Dinesh G Dodmane
This specification is the exclusive property of Tata Motors Limited. Without their consent it may not be
reproduced or given to third parties
.
The above specifications are subject to change and therefore
suppliers are requested to refer the latest one.
CONTROLLED COPY FOR RESTRICTED CIRCULATION
1.2.

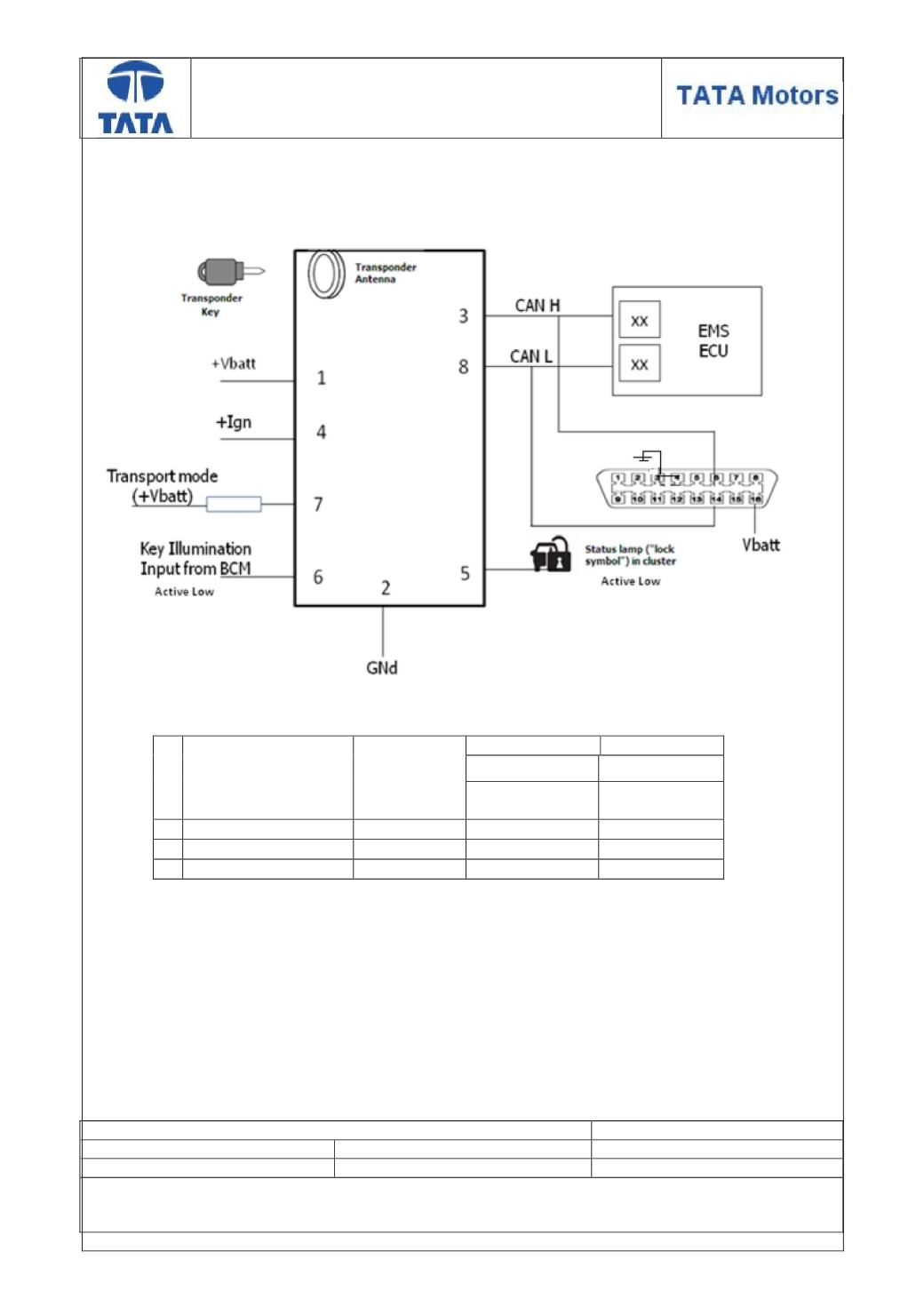

Connection Diagram
# Description
Immobilizer
pin
Zest/Bolt
Zest/Bolt
SDE
Xeta Turbo
6T4 ecu (MM)
pin no.
CUBE (Bosch)
pin no.
1 CAN High
3
64
132
2 CAN Low
8
40
144
3 Status LED
9
NA
NA
