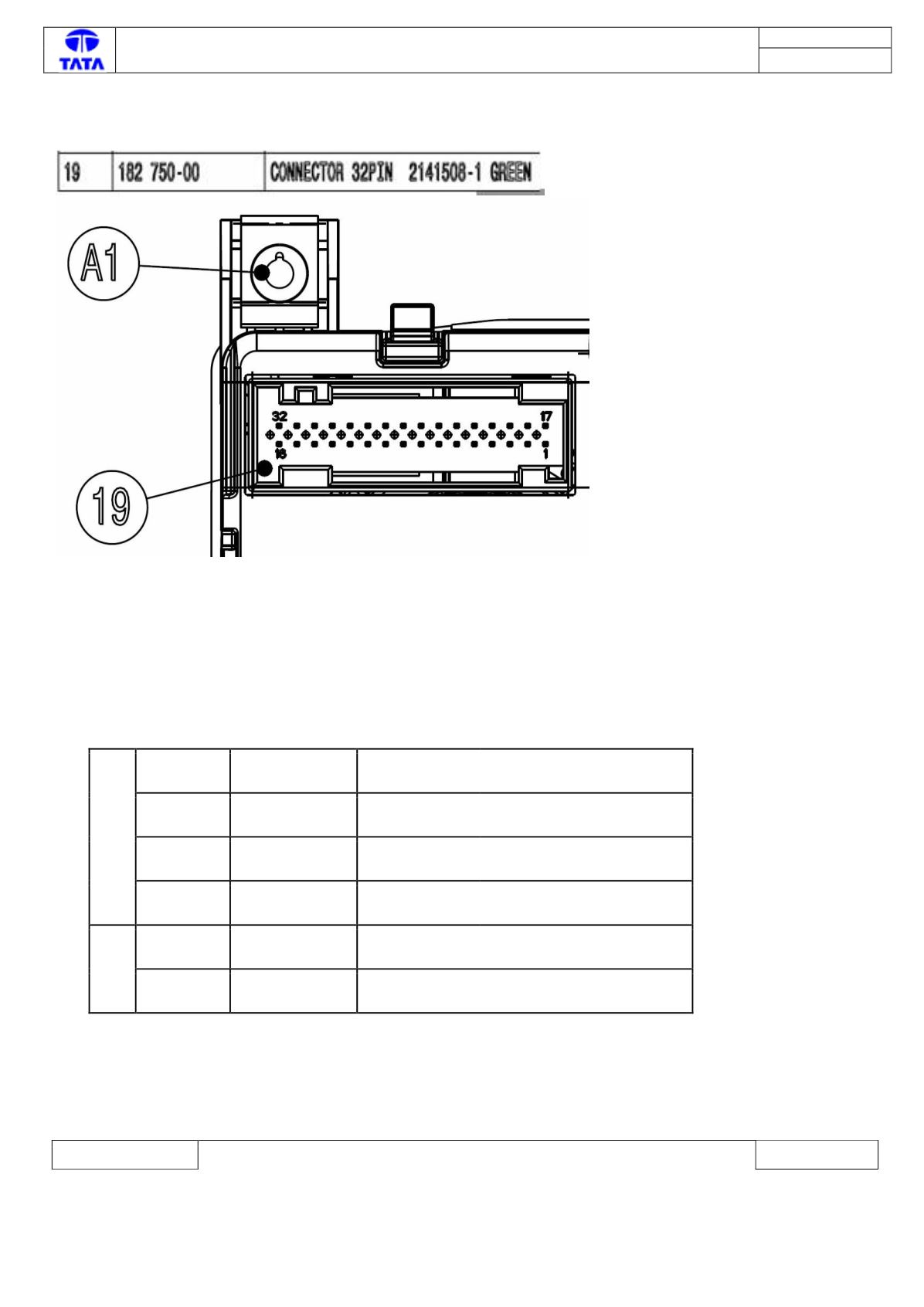

Connector View & Information: -
HVAC ECU side Connector
HVAC ECU Pin assignment
Pin No.
Pin Name
Description
24
CAN_H
CAN High
22
CAN_L
CAN Low
11
Ign
Ignition
15,16
Vbat
Supply Voltage Battery
1,2
GND
Battery GND
