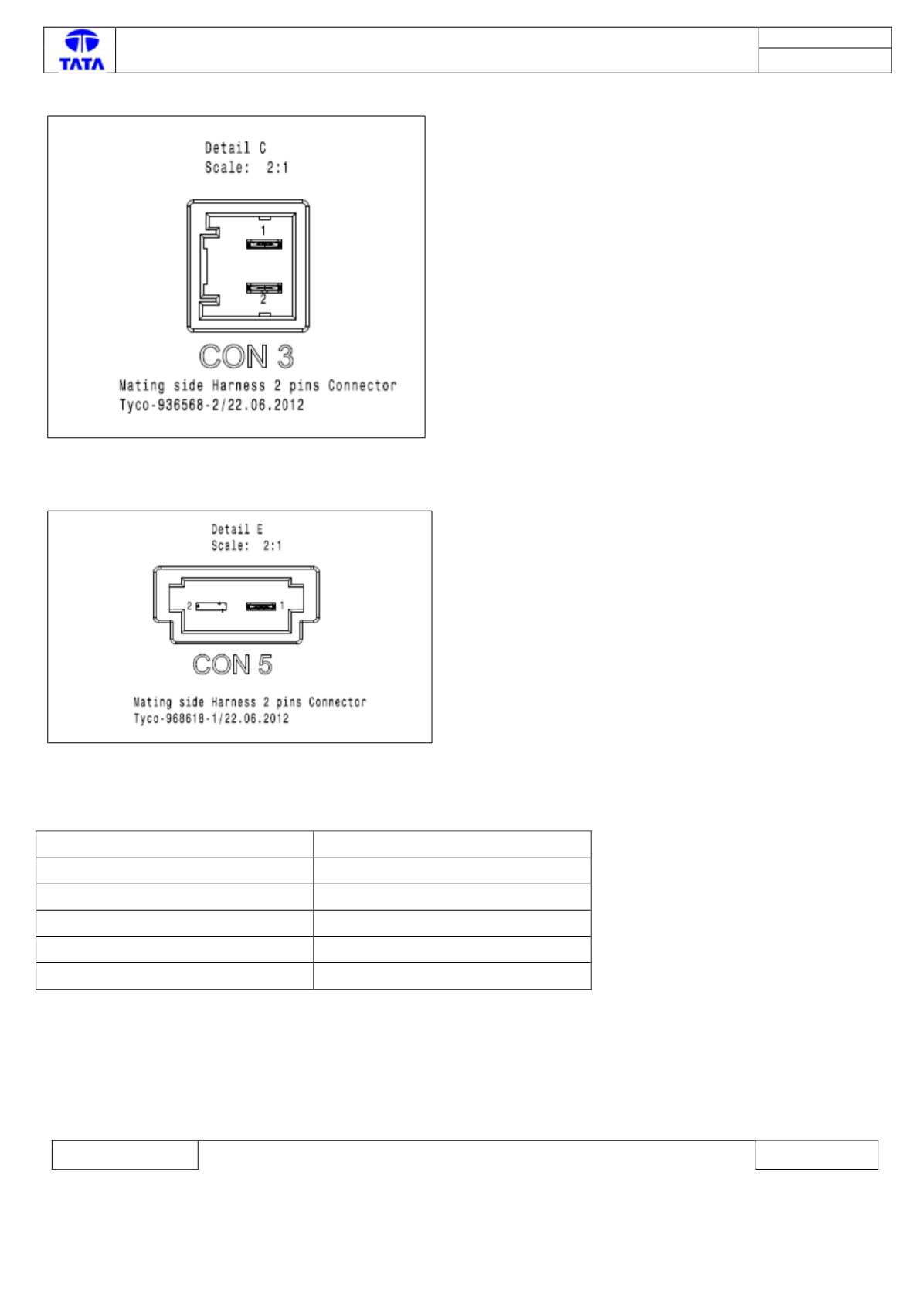

BCM Connector E ECU side pin out
Description
ECU pin
CAN_H chassis
A48
CAN_L chassis
A49
Battery
C1,C2 and E1
Ignition input
A9
Battery ground
A34, A47 and B26
IPC ECU side connector diagram
BCM ECU pin details:-
