a)
Check whether HVAC ECU is communicating with diagnostic Tool or not.
b)
DTC should not be present in ECU memory.
Circuit Schematic
Diagram:-N.AComponent Location & Image:- N.A
Connector Location: N.A
Connector View & Information: - N.A
Inspection Method: - N.A

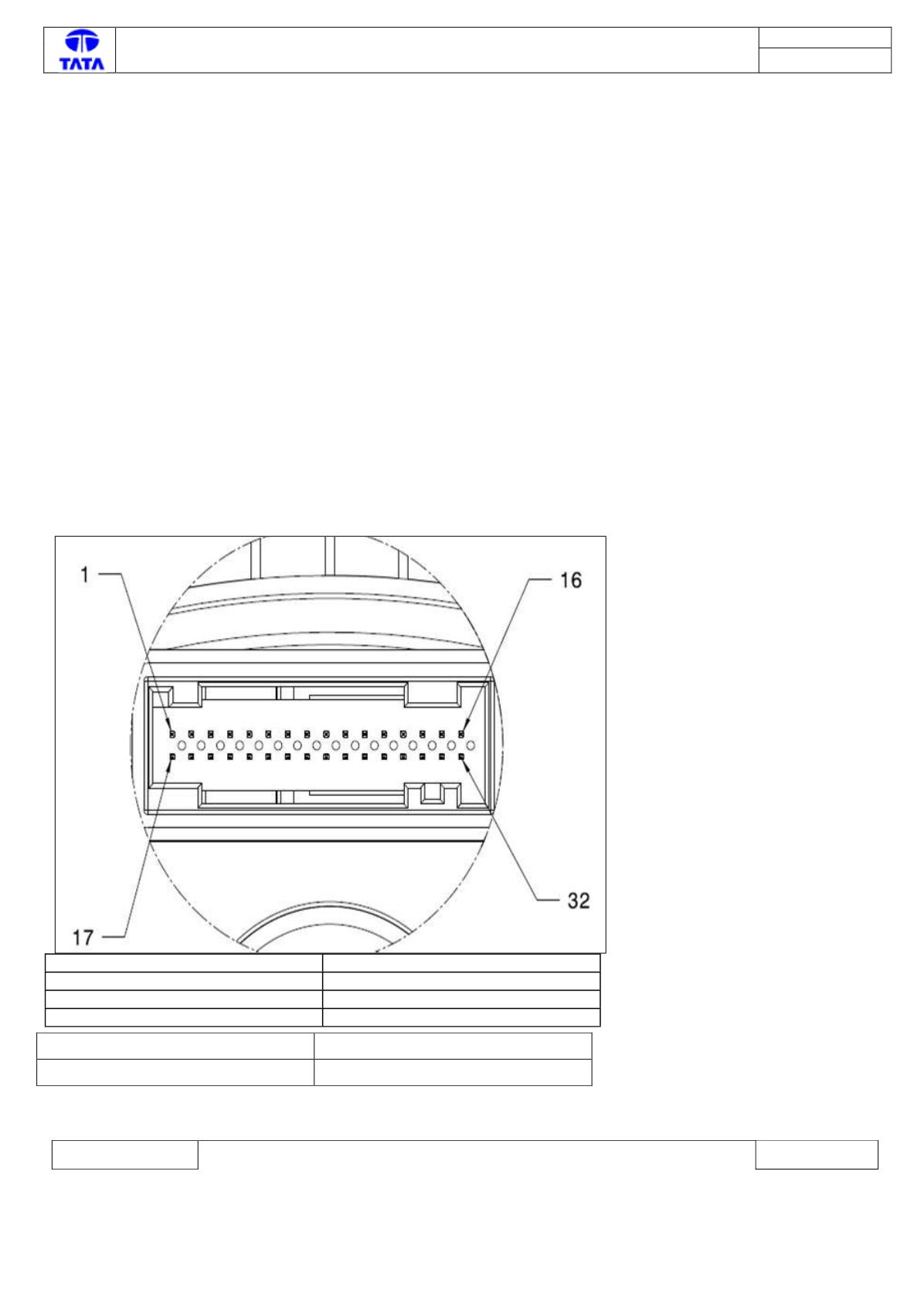

IPC ECU side connector diagram
ECU Side Connector:
Ignition input
22
Battery ground
24
IPC ECU Pin assignment:-
Description
ECU pin
CAN_H chassis
6
CAN_L chassis
5
Battery
1
