X2 Eagle
ESP DTC Troubleshooting Data
Version: 1.0
Date: 23-Oct-15
Author: ERC, Chassis E&E CoC
Page: 221 of 224
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

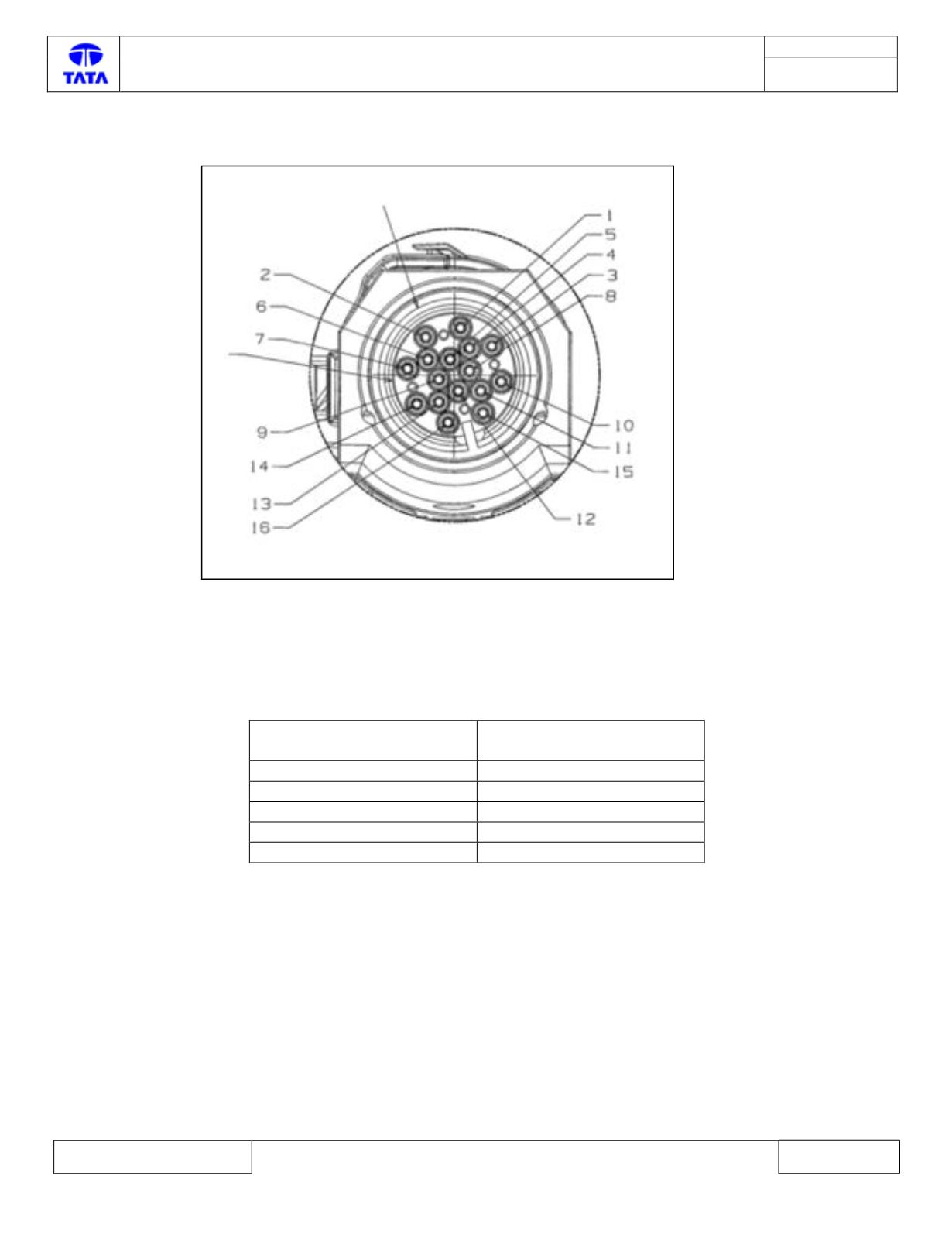

TCM ECU connector schematic
Pin details:
Pin description
Pin No
Battery
4
GND
5
IGN
9
CAN_H
10
CAN_L
11
