X2 Eagle
ESP DTC Troubleshooting Data
Version: 1.0
Date: 23-Oct-15
Author: ERC, Chassis E&E CoC
Page: 217 of 224
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

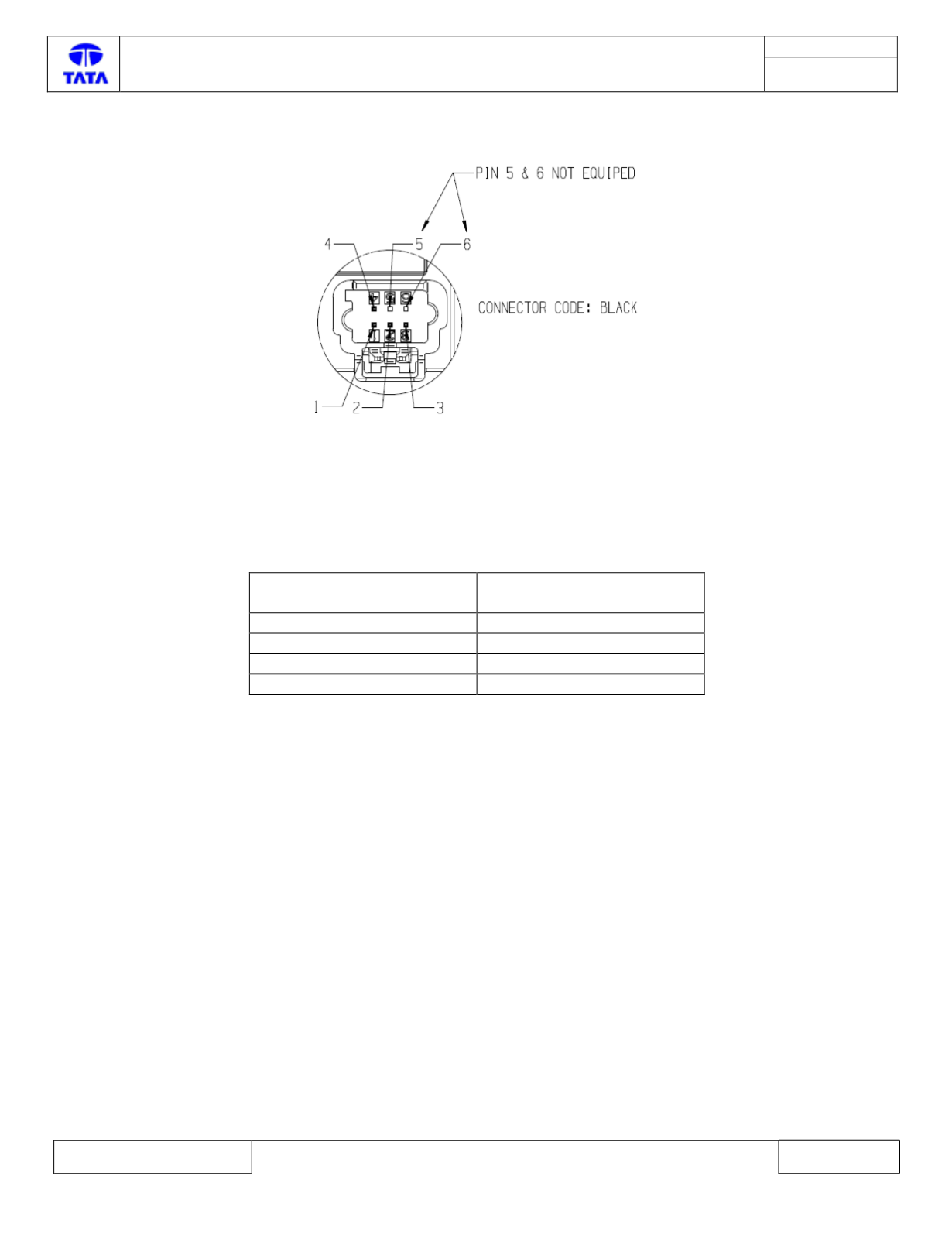

SAS connector schematic
Pin details:
Pin description
Pin No
CAN_L
1
CAN_H
2
GND
3
VCC
4
