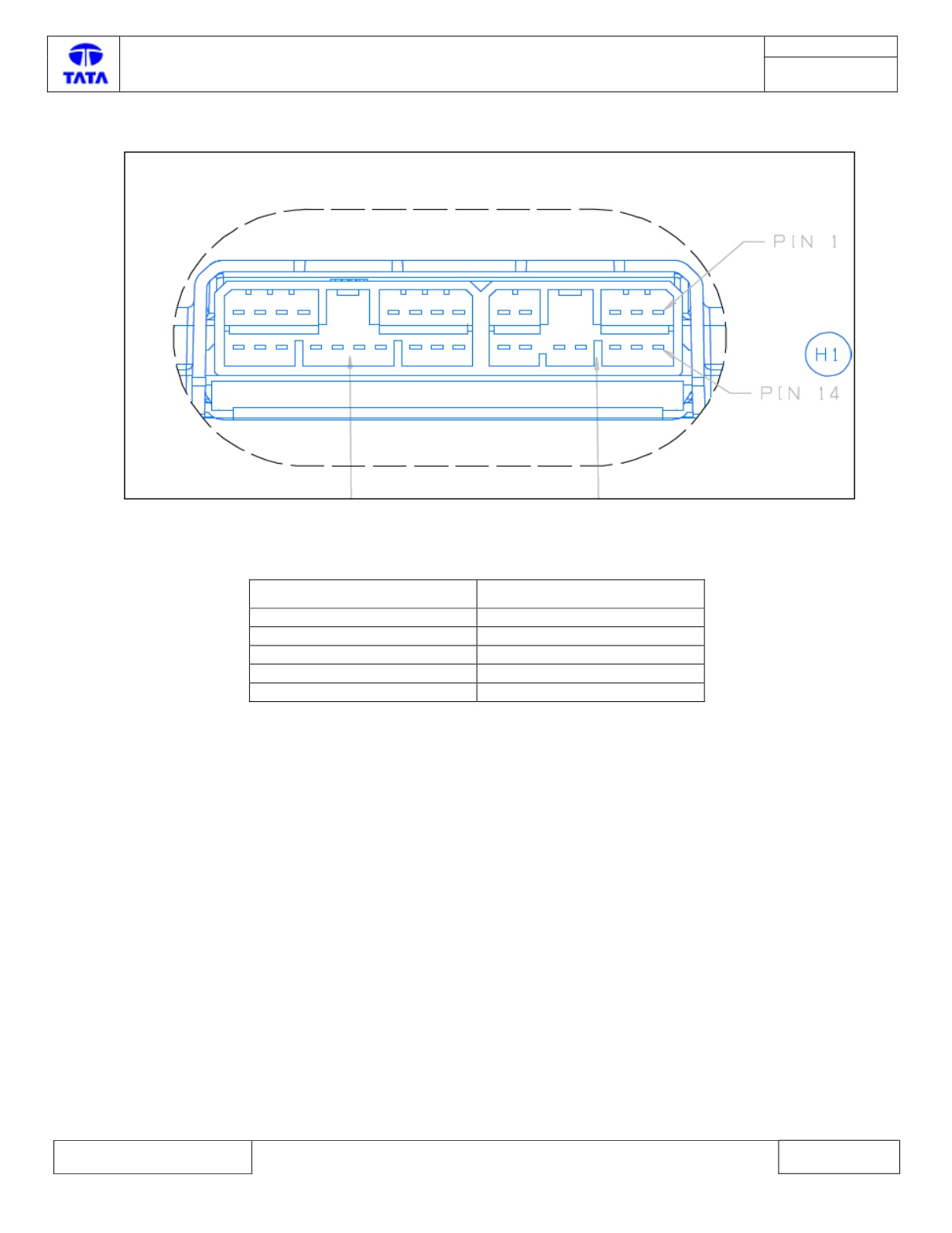

TCC ECU Schematic:
Pin Details:
Pin Description
Pin No
Battery
4, 19
GND
17, 18
IGN
5
CAN_H
22
CAN_L
23
