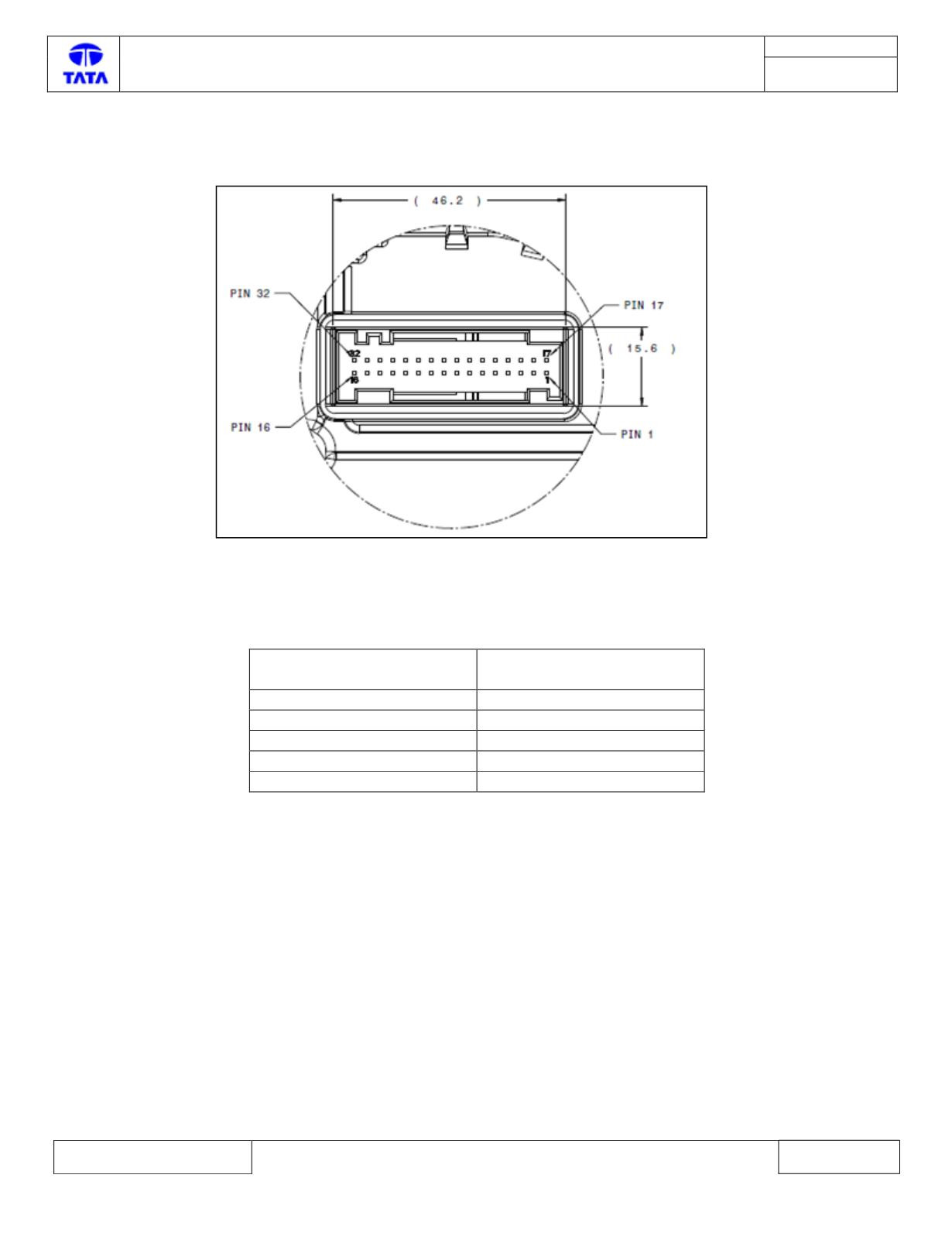

IPC ECU connector schematic
Pin details:
Pin description
Pin No
Battery
1
GND
23
IGN
18
CAN_H
5
CAN_L
4
