Automated Manual Transmission
51
carry out the following operations:
Bleed air of hydraulic system for gearbox
with hydraulic selection
Clutch self-calibration enablement.
Grid self tuning - service.
New actuators (only if the hydraulic actu-
ation unit is being replaced).
Remove the car from the lift.
Hydraulic Selection Gearbox Speed Selection
Position Sensor Removal
1.
Place the car on a lift.
2.
Position the gear lever at N.
3.
Connect the diagnosis equipment and car-
ry out the accumulator depressurization
procedure.
4.
Remove protection/guard under engine.
5.
Remove battery.
6.
Remove battery support/drip tray.
7.
Remove wiring for manual gearbox hy-
draulic selection system on hydraulic
selection unit
8.
Remove hydraulic speed selection hydrau-
lic actuator unit and clutch.
9.
Loosen and remove the screws and re-
move the electro-hydraulic selection
gearbox gear selection position sensor.
10. Remove the driver complete with O-ring.

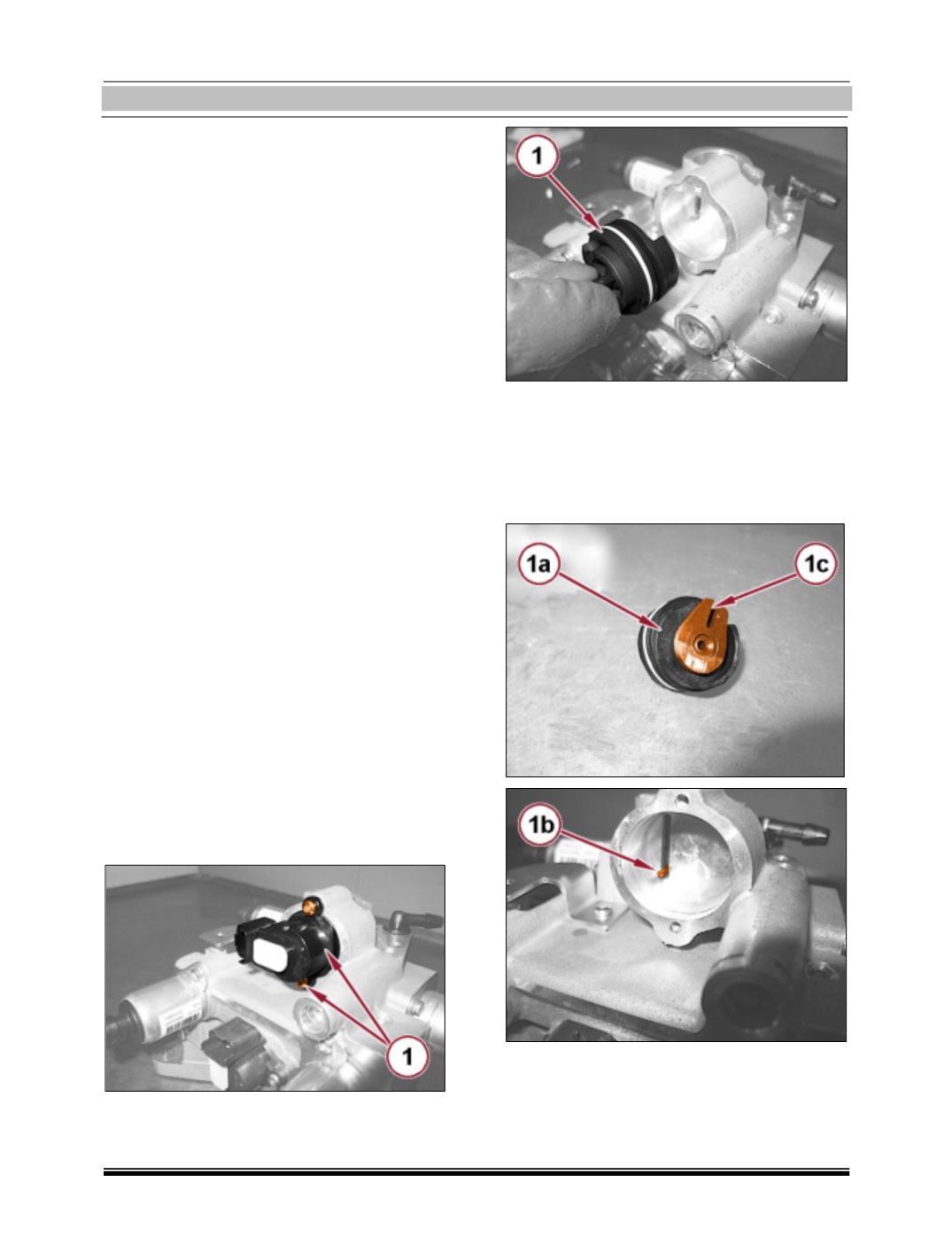

Hydraulic Selection Gearbox Speed Selection
Position Sensor Fitment
1.
Place the driver (1a) back in its housing,
complete with O-ring, taking care to at-
tach the pin (1b) with the fork (1c).
2.
Place the electro-hydraulic selection gear-
box gear selection position sensor (1a)
back in its housing, inserting the driver pin
(1b) in the Sensor (1c).
