Automated Manual Transmission
47

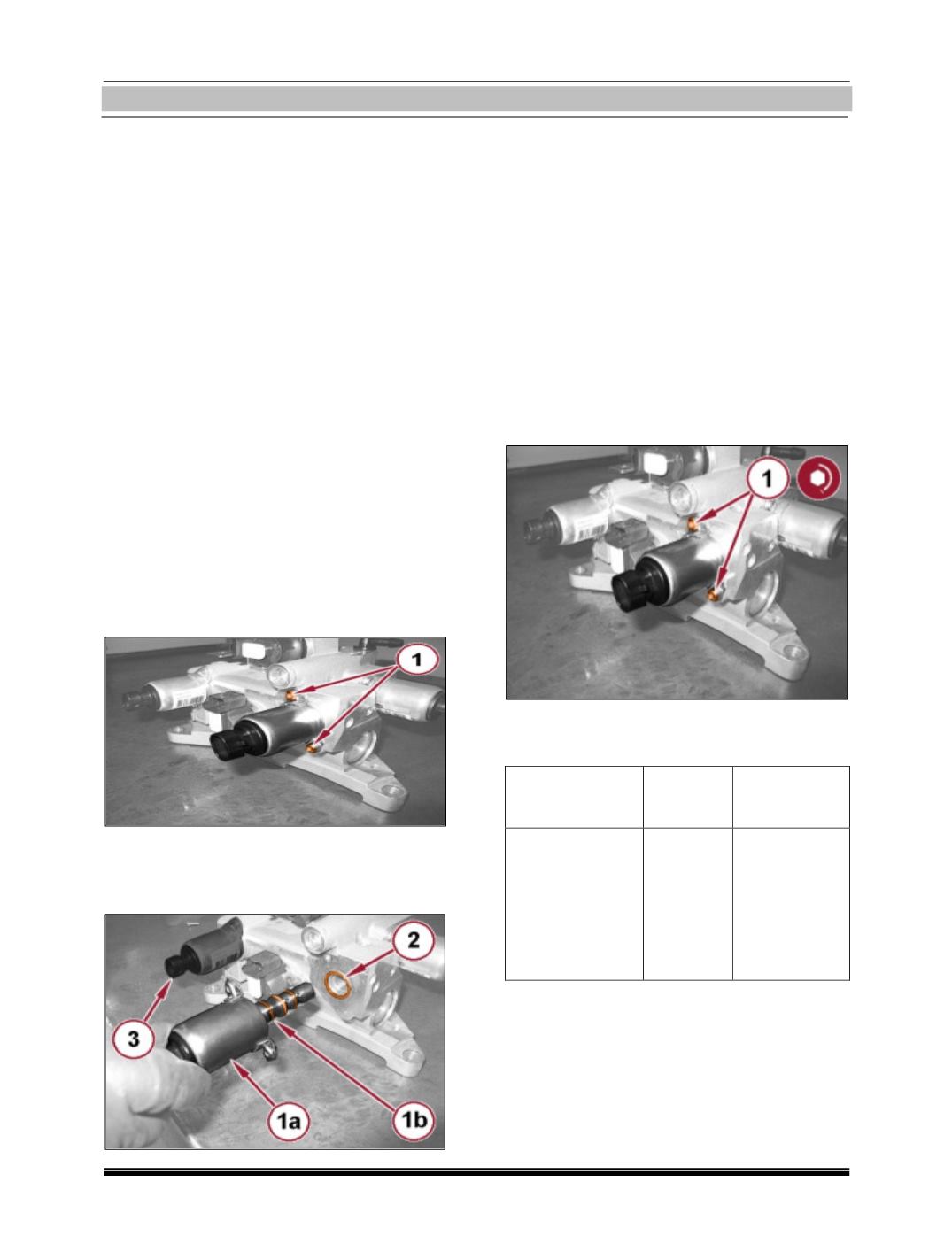

Odd and Even Gear Engagement Solenoids
Removal:
1.
Place the car on a lift.
2.
Position the gear lever at N.
3.
Connect the diagnosis equipment and car-
ry out the accumulator depressurization
procedure.
4.
Remove protection/guard under engine
5.
Remove left front wheel.
6.
Remove battery.
7.
Remove battery support/drip tray.
8.
Remove wiring for manual gearbox hy-
draulic selection system on hydraulic
selection unit
9.
Remove hydraulic speed selection hydrau-
lic actuator unit and clutch
10. Loosen and remove the fixing screws for
the odd gear engagement solenoid valve.
11. Remove the odd gear engagement sole-
noid valve (1a) complete with O-rings
(1b).
12. Remove the O-ring from the odd gear en-
gagement solenoid valve seat.
13. Proceed in the same way to remove the
even gear engagement solenoid valve.
Odd and Even Gear Engagement Solenoids
Fitment:
1.
Fit a new O-ring in the odd gear engage-
ment solenoid valve seat.
2.
Place the odd gear engagement solenoid
valve in its seat complete with new O-
rings and tighten the screws to the pre-
scribed torque.
3.
Proceed in the same way for the even gear
engagement solenoid valve.
Component
Fixing
value
(Nm)
Odd and even
gear
engage-
ment solenoid
valves
Screw
3 – 4.2
4.
Fit hydraulic speed selection hydraulic ac-
tuator unit and clutch
5.
Fit wiring for manual gearbox hydraulic
selection system on hydraulic selection
unit
6.
Fit left front wheel
