Automated Manual Transmission
49
10. Remove the O-ring from the 1st and 2nd
gear selection solenoid valve seat.
11. Remove the oil filter.
12. Proceed in the same way to remove the
5th/R selection solenoid valve.
Gear Selection Solenoids Fitment:
1.
Place the oil filter back in its housing.
2.
Fit a new O-ring in the 1st and 2nd gear
selection solenoid valve seat.
3.

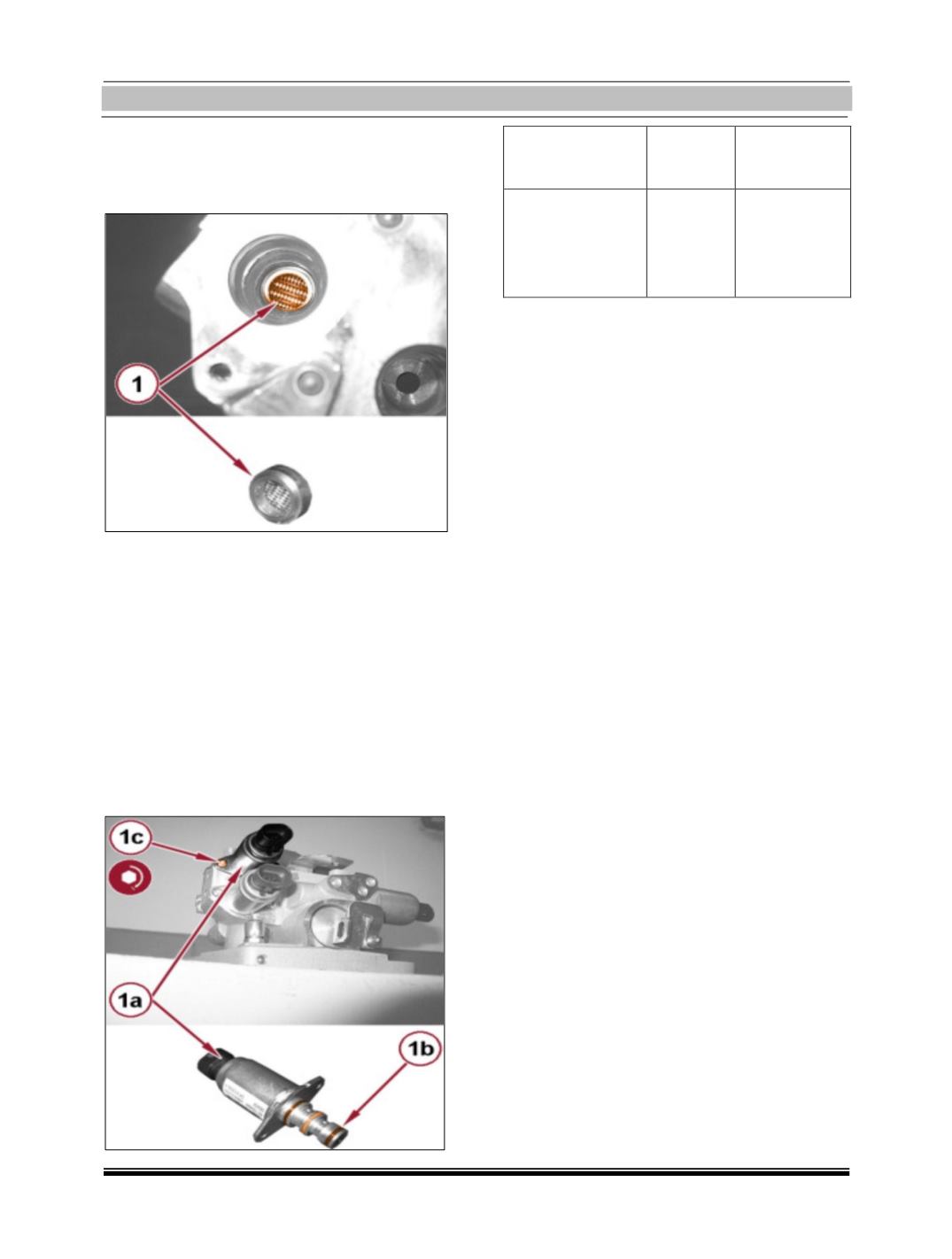

Place the 1st and 2nd gear selection sole-
noid valve (1a) in its seat complete with
new O-rings (1b) and tighten the screws
(1c) to the prescribed torque.
Component
Fixing
value
(Nm)
Gear
selection
solenoid valves
Screw
3 – 4.2
4.
Fit hydraulic speed selection hydraulic ac-
tuator unit and clutch
5.
Fit wiring for manual gearbox hydraulic
selection system on hydraulic selection
unit
6.
Fit protection/guard under engine.
7.
Refill the electro-hydraulic selection gear-
box hydraulic control system, with
reference to
8.
Check level of hydraulic system fluid for
gearbox with hydraulic selection and top
up, if necessary.
9.
Fit battery support/drip tray.
10. Fit battery.
11. Connect the diagnosis equipment and
carry out the following operations:
Bleed air of hydraulic system for gearbox
with hydraulic selection
Clutch self-calibration enablement.
Grid self tuning - service.
New actuators (only if the hydraulic actu-
ation unit is being replaced).
Remove the car from the lift.
