Automated Manual Transmission
57
Electro-Hydraulic Selection Gearbox Wiring
Mounting Bracket Fitment
1.
Place the electro-hydraulic selection gear-
box wiring mounting bracket back in its
housing and fit the fixing rivets using a
suitable tool.
2.
Engage the wiring with the retaining clip.
3.
Fit battery support/drip tray.
4.
Fit battery.
Wiring For Manual Gearbox Hydraulic Selec-
tion System on Hydraulic Selection Unit
Removal
1.
Place the car on a lift.
2.
Remove protection/guard under engine.
3.
Remove battery.
4.
Remove battery support/drip tray.
5.

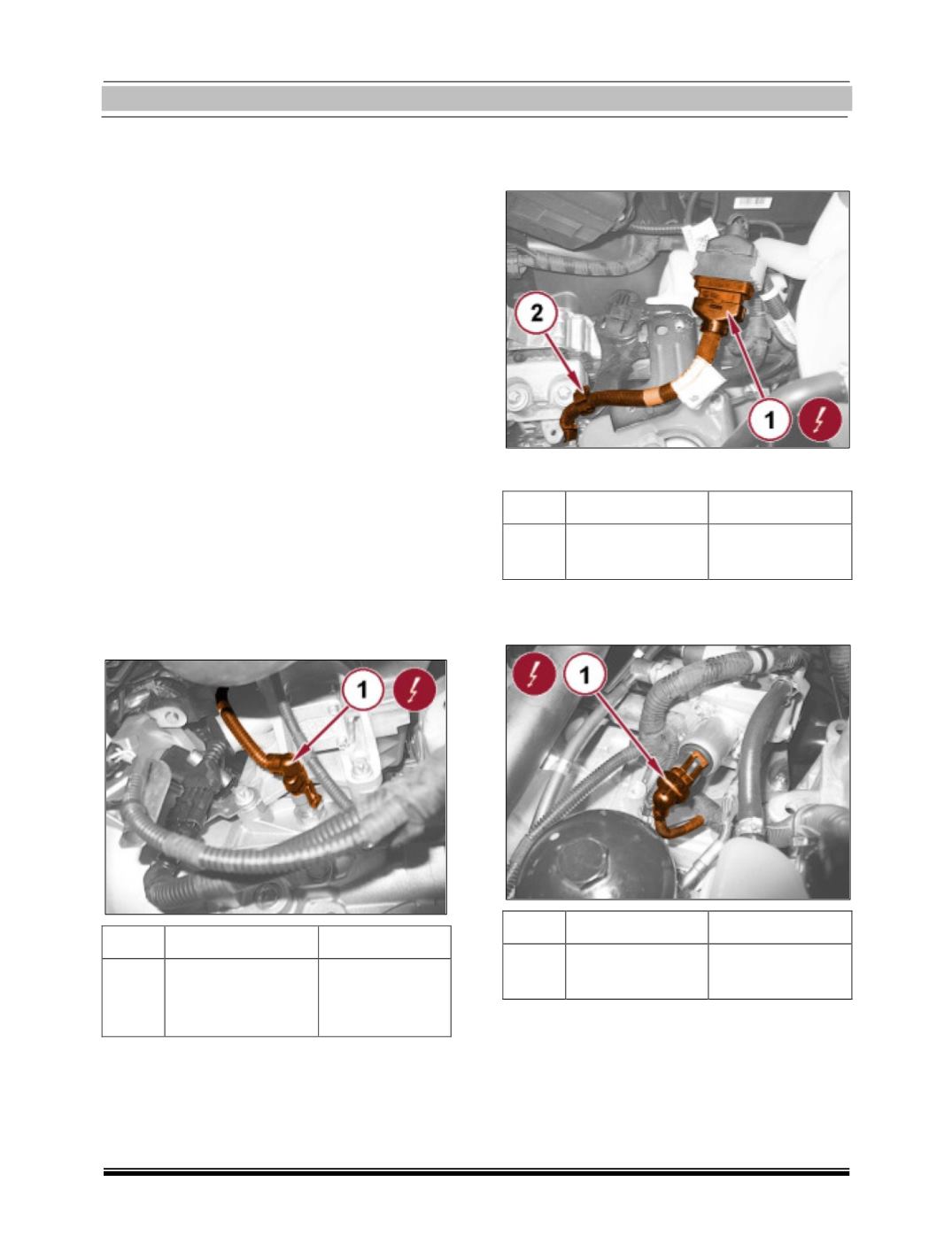

Disconnect the electrical connection for
the gearbox input speed sensor and re-
lease the wiring from the tank.
Sr. No Name
Connector
1
Gearbox
input
speed sensor
Transmission
output speed
sensor
6.
Disconnect the electro-hydraulic selection
system wiring coupling.
7.
Open the clip and release the wiring.
Sr. No Name
Connector
1
Gearbox sensor
coupling
Transmission
sensors coupling
8.
Disconnect the electrical connection for
the clutch control solenoid valve.
Sr. No Name
Connector
1
Clutch control
solenoid valve
clutch
control
solenoid
