Automated Manual Transmission
56

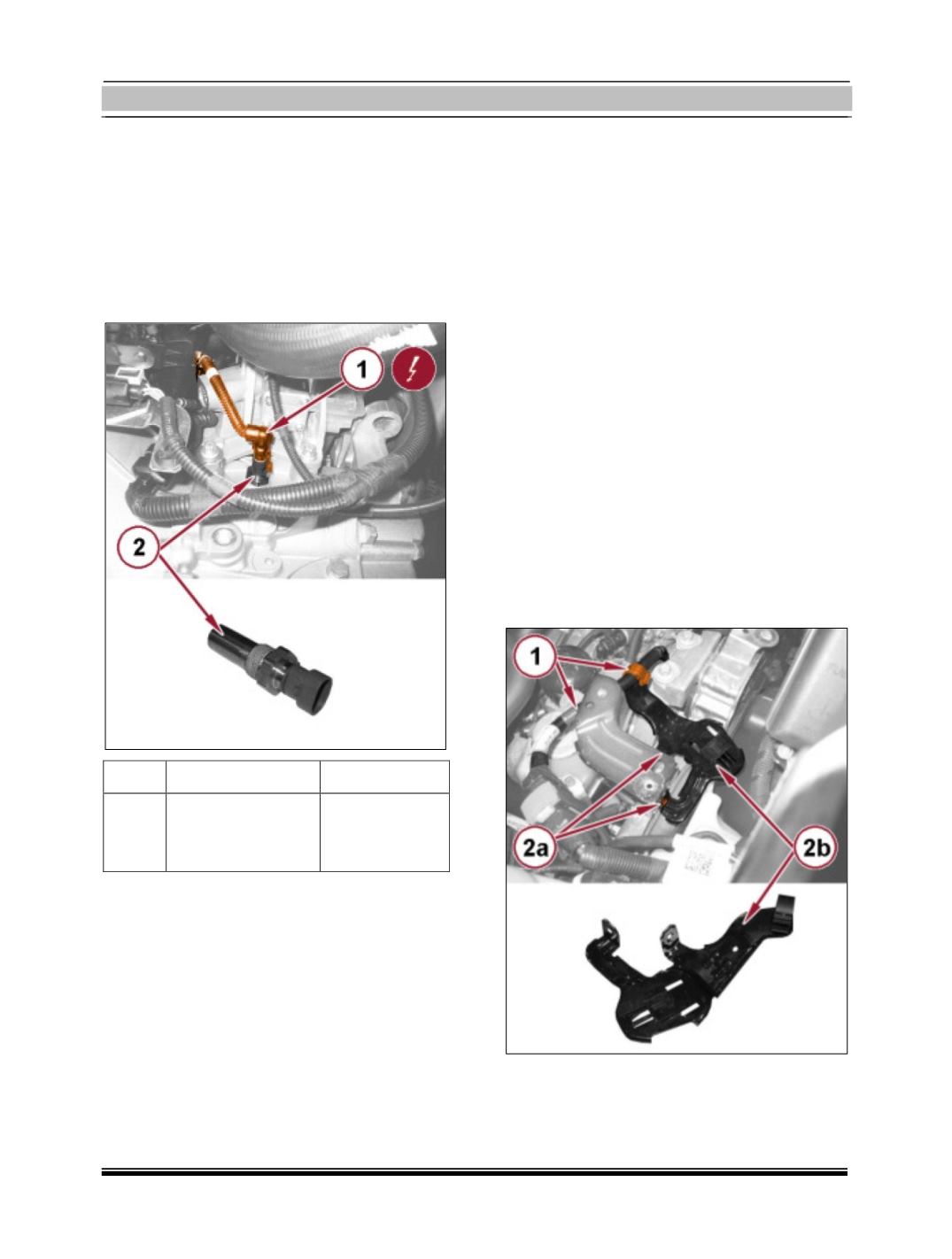

Hydraulic Selection Gearbox Input Shaft
Speed Sensor Removal
1.
Place the car on a lift.
2.
Remove Protection/guard under engine.
3.
Disconnect the electrical connection for
the electro hydraulic selection gearbox in-
put shaft speed sensor.
Sr. No Name
Connector
1
Gearbox
input
speed sensor
Transmission
output speed
sensor
4.
Loosen and remove the electro-hydraulic
selection gearbox input shaft speed sen-
sor.
Hydraulic Selection Gearbox Input Shaft
Speed Sensor Fitment
1.
Place the electro-hydraulic selection gear-
box input shaft speed sensor in its housing
and tighten it.
2.
Connect the electrical connection for the
electro-hydraulic selection gearbox input
shaft speed sensor.
3.
Fit Protection/guard under engine.
4.
Remove the car from the lift.
Electro-Hydraulic Selection Gearbox Wiring
Mounting Bracket Removal
1.
Remove battery.
2.
Remove battery support/drip tray.
3.
Open the clip and release the wiring.
4.
Using a suitable tool, remove the rivets
(2a) and the electro-hydraulic selection
gearbox wiring mounting bracket (2b).
