54
3.

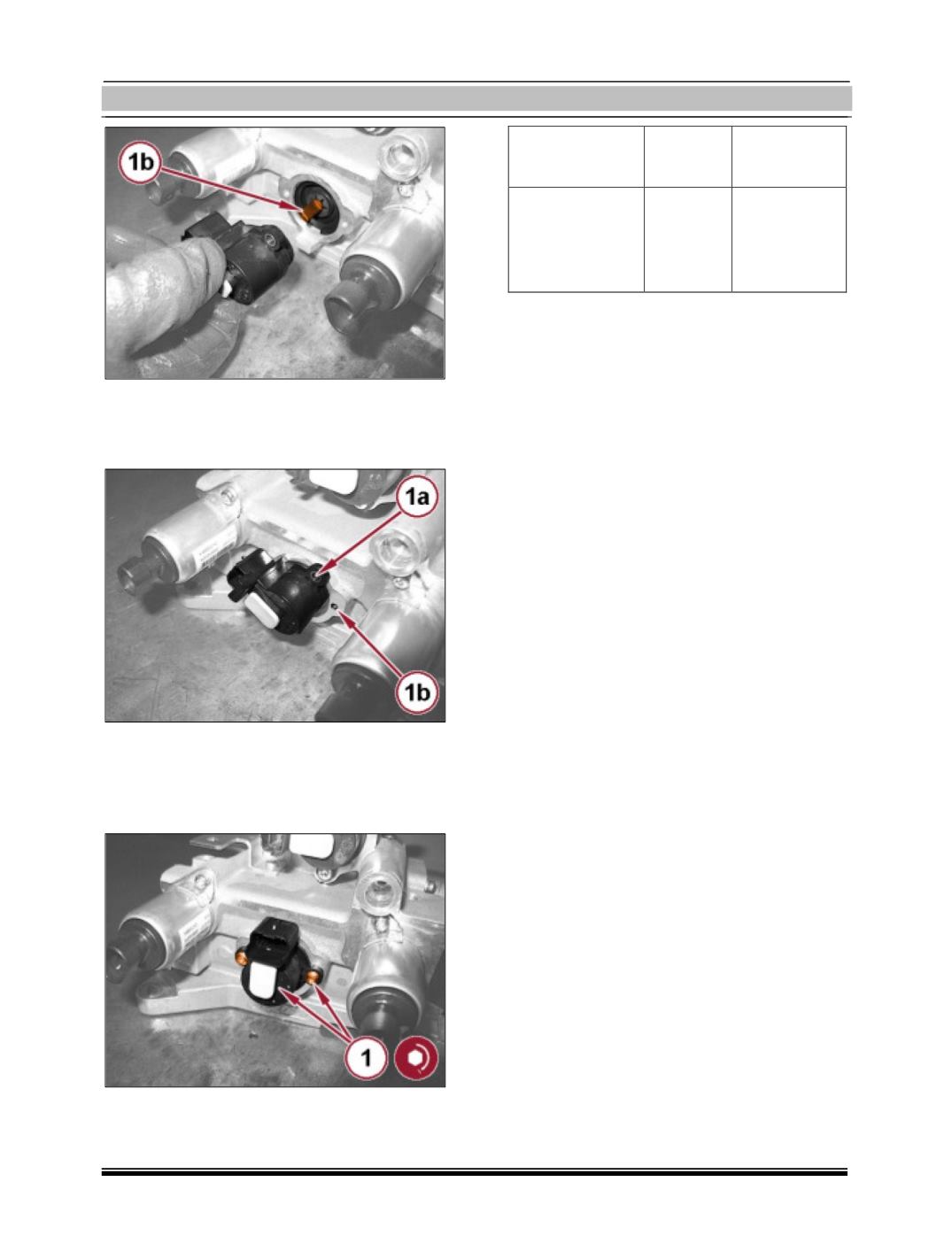

Pre-load the sensor’s Sensor, rotating
clockwise until fixing holes (1a) and (1b)
are aligned.
4.
Tighten the screws fixing the electro-
hydraulic selection gearbox gear engage-
ment position sensor to the prescribed
torque.
Component
Fixing
Value (Nm)
Gear
engage-
ment position
sensor
Screw
3 – 4.2
5.
Fit hydraulic speed selection hydraulic ac-
tuator unit and clutch
6.
Fit wiring for manual gearbox hydraulic
selection system on hydraulic selection
unit
7.
Fit protection/guard under engine.
8.
Refill the electro-hydraulic selection gear-
box hydraulic control system, with
reference to
9.
Check level of hydraulic system fluid for
gearbox with hydraulic selection and top
up, if necessary.
10. Fit battery support/drip tray.
11. Fit battery.
12. Connect the diagnosis equipment and
carry out the following operations:
Bleed air of hydraulic system for gearbox
with hydraulic selection
Clutch self-calibration enablement.
Grid self tuning - service.
New actuators (only if the hydraulic actu-
ation unit is being replaced).
Remove the car from the lift.
