8 TRANSMISSION CONTROL UNIT (TCU)
REMOVAL AND RE-FITMENT ON BENCH:-

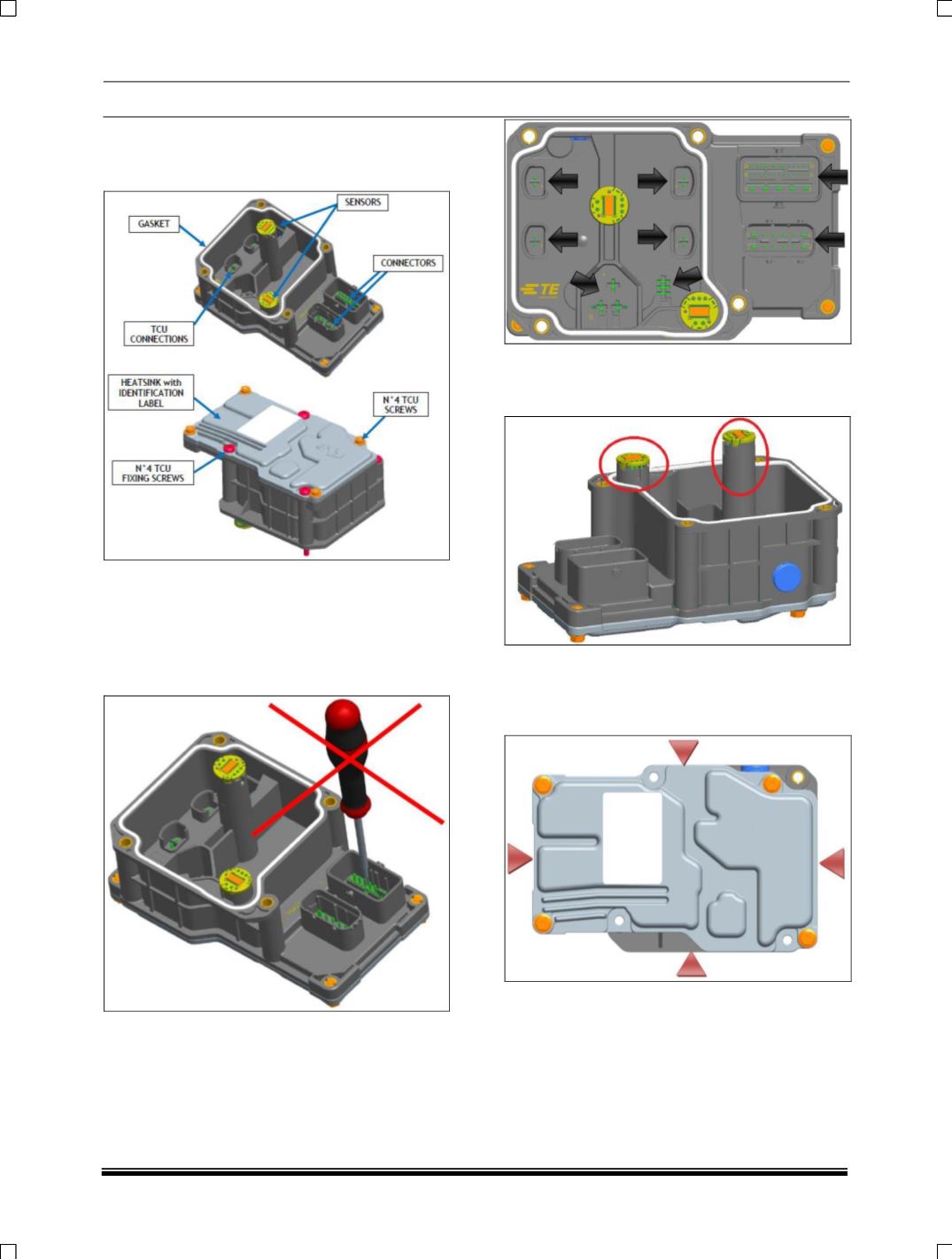

Transmission Control Unit Overview:
Precautions:
The pins of the ‘Transmission Control Unit’
connections and sensors must be protected from
accidental contact (hands, tools, etc.) to avoid
electrostatic
discharges
and
mechanical
damages.
Arrows shows ‘Transmission Control Unit’
connections pin and gasket (white colour). Must
be protected from any accidental contacts
especially metal tools) that could damage the
gasket itself.
Absolutely do not handle the ‘Transmission
Control Unit’ using the two sensors pivots marked
by circle in the image below.
Always handle the ‘Transmission Control Unit’
(when possible) keeping it from lateral sides,
without touching the gasket, as shown on the
image below.
Seal the ‘Transmission Control Unit’ in correct
ESD compliant bag closed by thermal welding and
containing Silica Gel unit (for humidity
absorbability).
Place the ‘Transmission Control Unit’ in an ESD
proof package designed to protect connections,
sensors and gasket from accidental contact.
