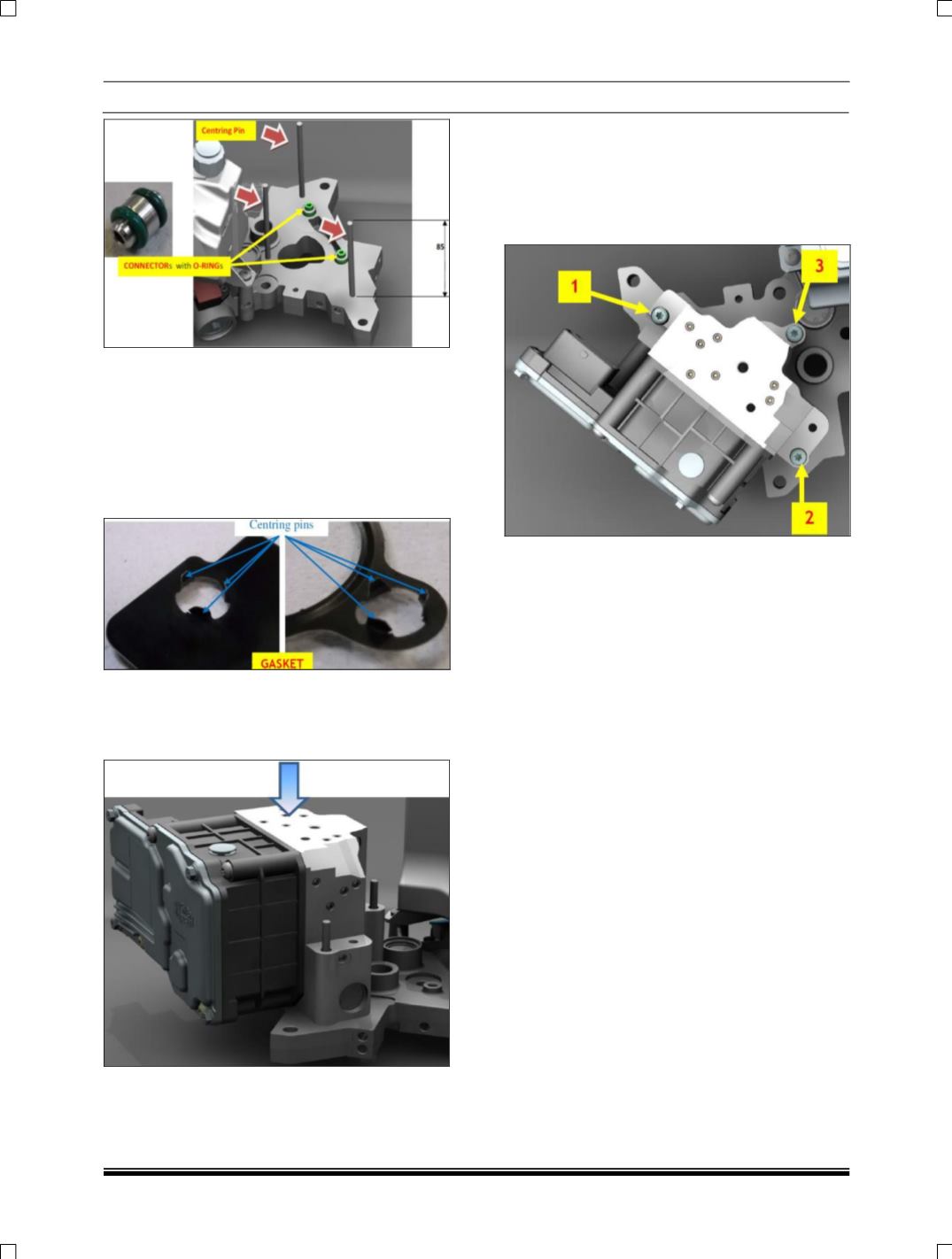

Lubricate with new ‘CS Speed’ oil the
“Mechatronic Gear Actuator” seats for connectors
with O-rings.
Assemble the spare part gasket on the spare part
“Mechatronic Gear Actuator” with the correct
orientation, inserting the centering pins into the
fixing holes of the “Mechatronic Gear Actuator”
body.
Position the “Mechatronic Gear Actuator” with
gasket over the “Power Unit Base Plate”, using for
reference the threaded rods and moving it parallel
towards the mating surface.
When the “Mechatronic Gear Actuator” body seats
come in contact with O-rings push it slowly with
appropriate load to complete the assembly.
Unscrew the rods and screw without tighten the
three spare parts screws for fixing the
“Mechatronic Gear Actuator” on “Power Unit Base
Plate”.
Tighten screw at the right torque 10 ± 1 Nm,
following the order shown in the image below.
Connect the connector of the wiring harness on
the ‘Transmission Control Unit’.
Fill the ‘Oil Tank’ with new ‘CS Speed’ oil, up to
the Max. Level “@ 0 bar” (no pressure in the
hydraulic circuit) and restore it after the purge
procedure. Screw the ‘Oil Tank Cap’ at the right
torque 2 - 0.5 ± 1 Nm.
