TA6300 AMT KIT

16

Installation:

Assemble the spare parts ‘Power Unit Base Plate’

on the fixture.

In order to guarantee right ‘Mechatronic Gear

Actuator’ translation during the mounting, to avoid

O-rings damages, screw three rods φ6x100 mm

length, with 15 mm threaded M6, in the ‘Power

Unit Base Plate’ holes used by ‘Mechatronic Gear

Actuator’ fixing screws.

Assemble the spare parts O-rings on the spare

parts connectors.

Mount the spare parts connectors with O-rings in

their seats on spare part ‘Power Unit Base Plate’,

after lubrication with new ‘CS Speed’ oil also

lubricate the ‘Mechatronic Gear Actuator’ seats.

Remove traces of oil from the ‘Mechatronic Gear

Actuator’ seal surface in contact with gasket with

care to avoid contamination from foreign materials

(dust, metal burrs, etc.) or surface damages.

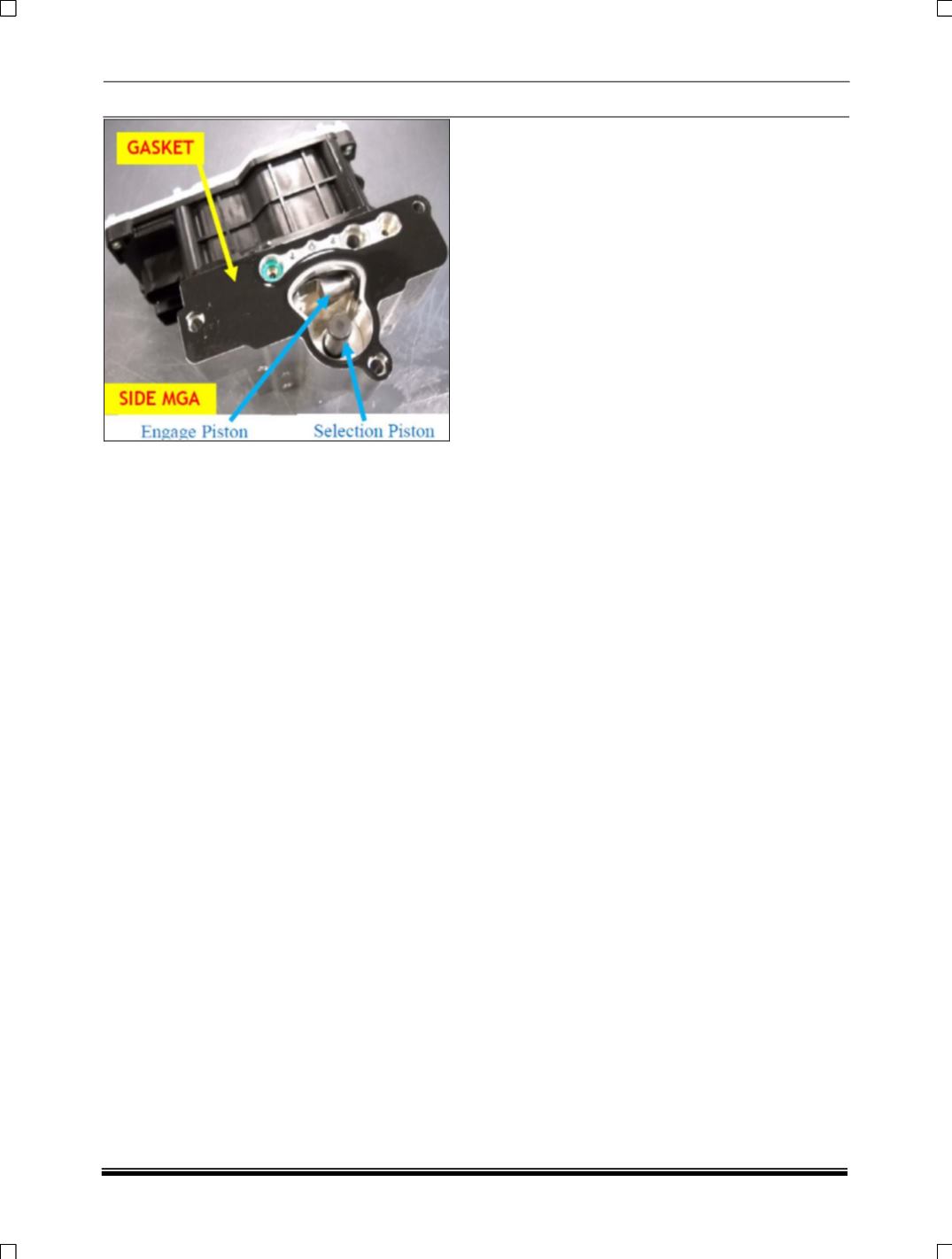

Assemble the spare part gasket on the

‘Mechatronic Gear Actuator’ with the correct

orientation, inserting the centering pins into the

fixing holes of the ‘Mechatronic Gear Actuator’

body.

Position the ‘Mechatronic Gear Actuator’ with

gasket over the ‘Power Unit Base Plate’ using the

threaded rods for reference and moving it parallel

towards the mating surface.

When the ‘Mechatronic Gear Actuator’ body seats

came in contact with O-rings, push it slowly, with

appropriate load to complete the assembly.

Unscrew the rods and screw the three spare parts

screws for fixing the ‘Mechatronic Gear Actuator’

on ‘Power Unit Base Plate’ at the right torque 10 ±

1 Nm.

Connect the connectors of the wiring harness on

the ‘Transmission Control Unit’ and ‘Cultch

Position Sensor’.

Insert the plastic clip into its threaded hole on the

‘Power Unit Base Plate’ body and connect the

connector of wiring harness on the DC Motor.

Fill the ‘Oil Tank’ with new ‘CS Speed’ oil, at the

Max. Level “@ 0 bar” (no pressure in the

hydraulic circuit) and restore it after the purge

procedure.

Screw the ‘Oil Tank Cap’ at the right torque.
