HEXA

GEAR BOX

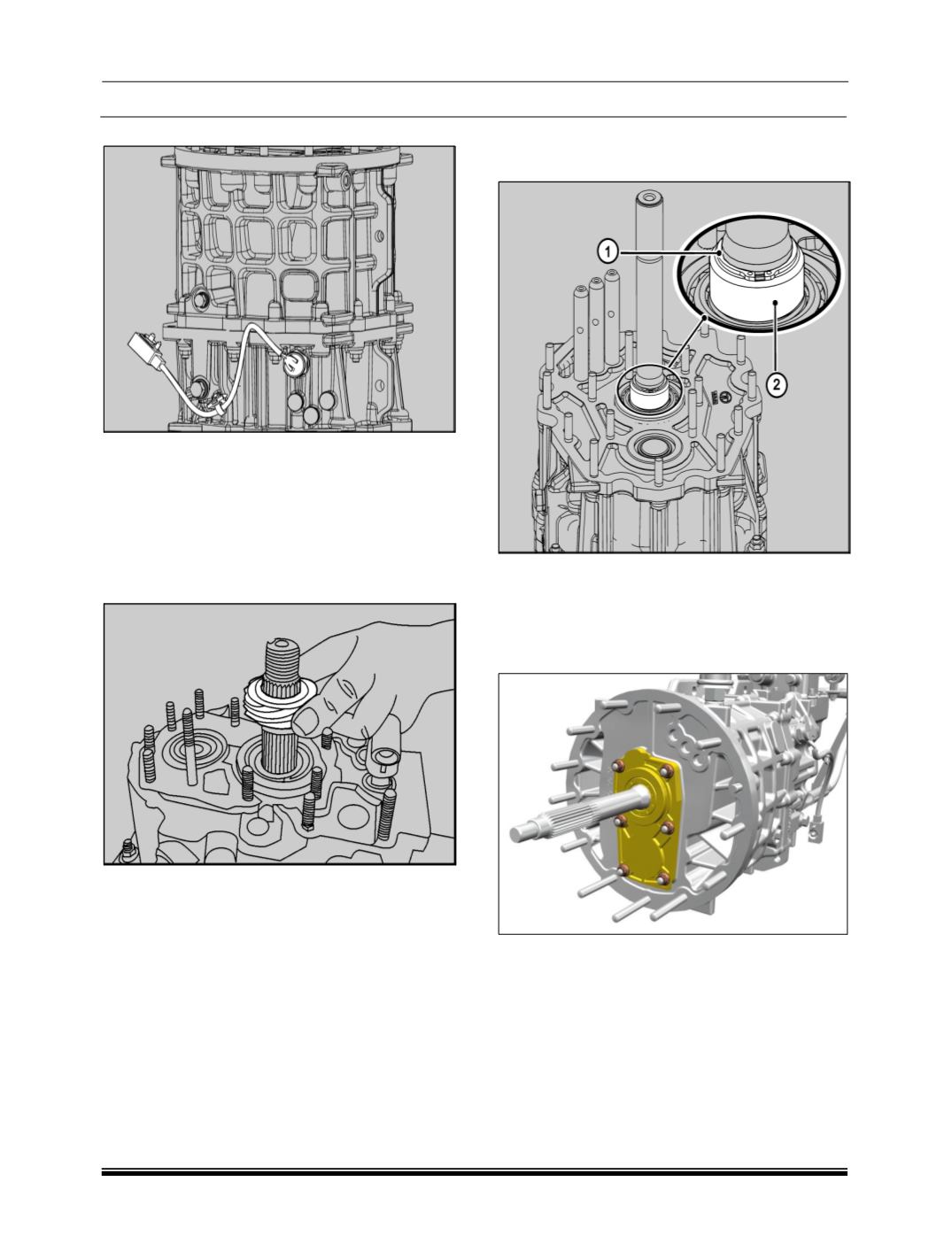

13.Remove the reverse light switch.

NOTE

For further details of reverse light switch refer electri-

cal section.

14.Rotate the stand such that the rear end of gear

box facing upwards.

15. Take out the speedo gear assembly from the

main shaft.

(For 4X2 Version only)

16a. Remove the external circlip

(1)

then take out the

spacer

(2)

from the main shaft.

(For 4X4 Version

only)

16.Rotate the stand such that the drive shaft face is

in upward direction.

17.Loosen and remove nuts and take out the front

cover assembly along with the oil seal and re-

move the cover gasket.
