GEAR BOX
29
MAIN SHAFT (4X4) (If applicable)

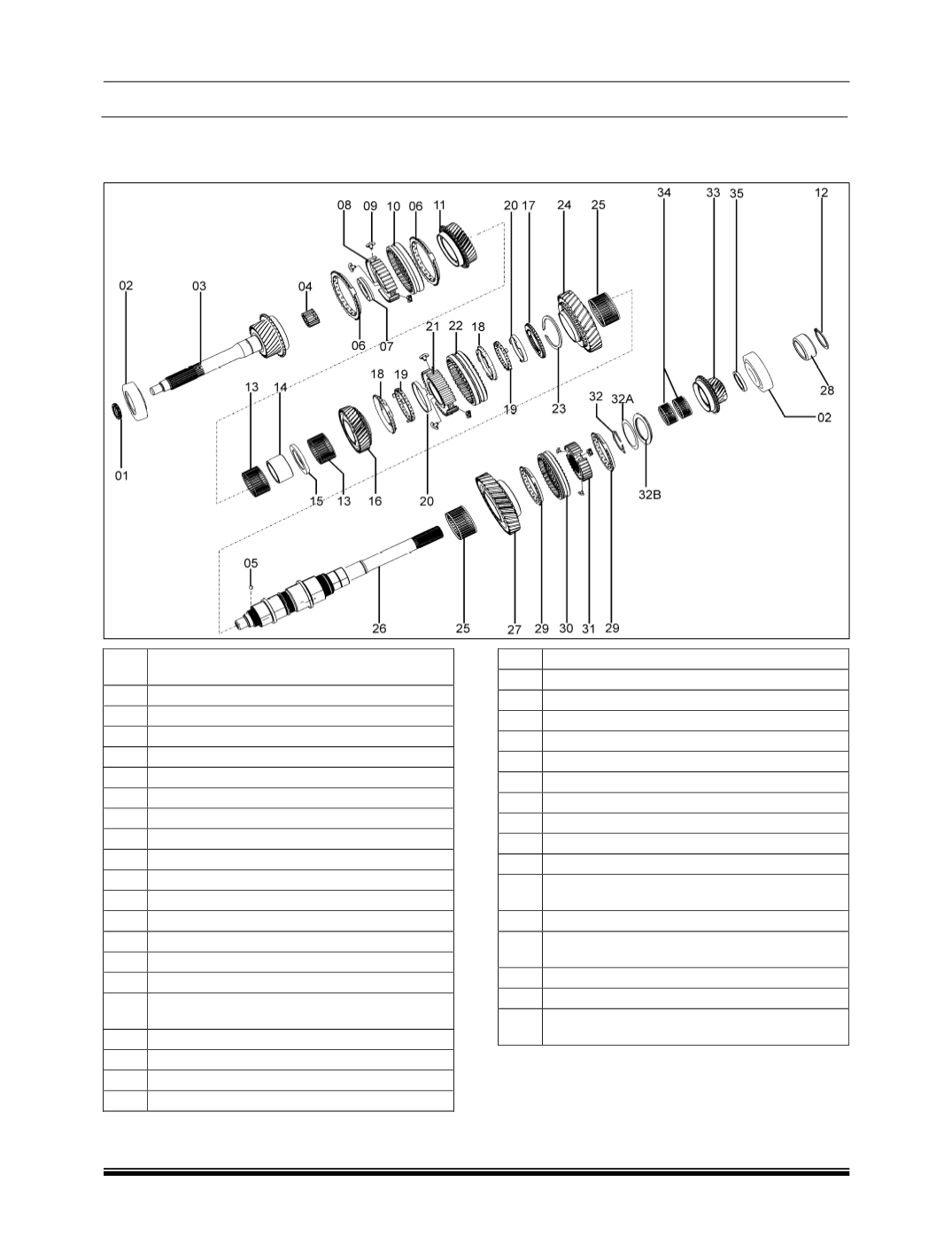

EXPLOADED VIEW
SR
NO
DESCRIPTION
01 Double lip oil seal(d/shaft)
02 Taper roller bearing
03 Assembly drive shaft
04 Needle cage reverse idler gear
05 Ball 3mm Diameter
06 Synchro cone (3rd/4th speed gear)
07 Axial thrust bearing with thrust washer
08 Engaging gear (3rd/4th speed)
09 Interlocking ball cage assembly
10 Shifter sleeve (3rd/4th)
11 Sub assembly helical gear 3rd speed
12 External circlip 30X1.5
13 Needle cage
14 Bush 3rd speed
15 Spacer (Between 2nd & 3rd gear)
16
Sub assembly helical gear (2nd speed
2.22 ratio)
17 Synchro ring (1st/2nd gear)
18 Outer synchro cone 1st/2nd speed
19 Intermediate cone 1st/2nd speed
20 Synchro cone 1st/2nd speed inner ring
21 Engaging gear (1st/2nd)
22 Shifter sleeve (1st/2nd gear)
23 Snap ring (2.05 -0.04 thick)
24 1st speed gear (4.1)
25 Needle cage 1st/2nd speed
26 Main shaft
27 Assembly reverse speed gear
28 Spacer (Oil seal)
29 Synchro cone (5th/rev speed gear)
30 Shifter sleeve
31 Engaging gear
32
Snap ring (Reverse outer diameter) 1.85
thick
32A Belleville spring
32B
Spacer (Belleville spring-outer diameter
gear)
33 Assembly over drive gear (0.73 ratio)
34 Needle cage
35
Spacer (Between outer diameter gear &
TRB)
