GEAR BOX

20

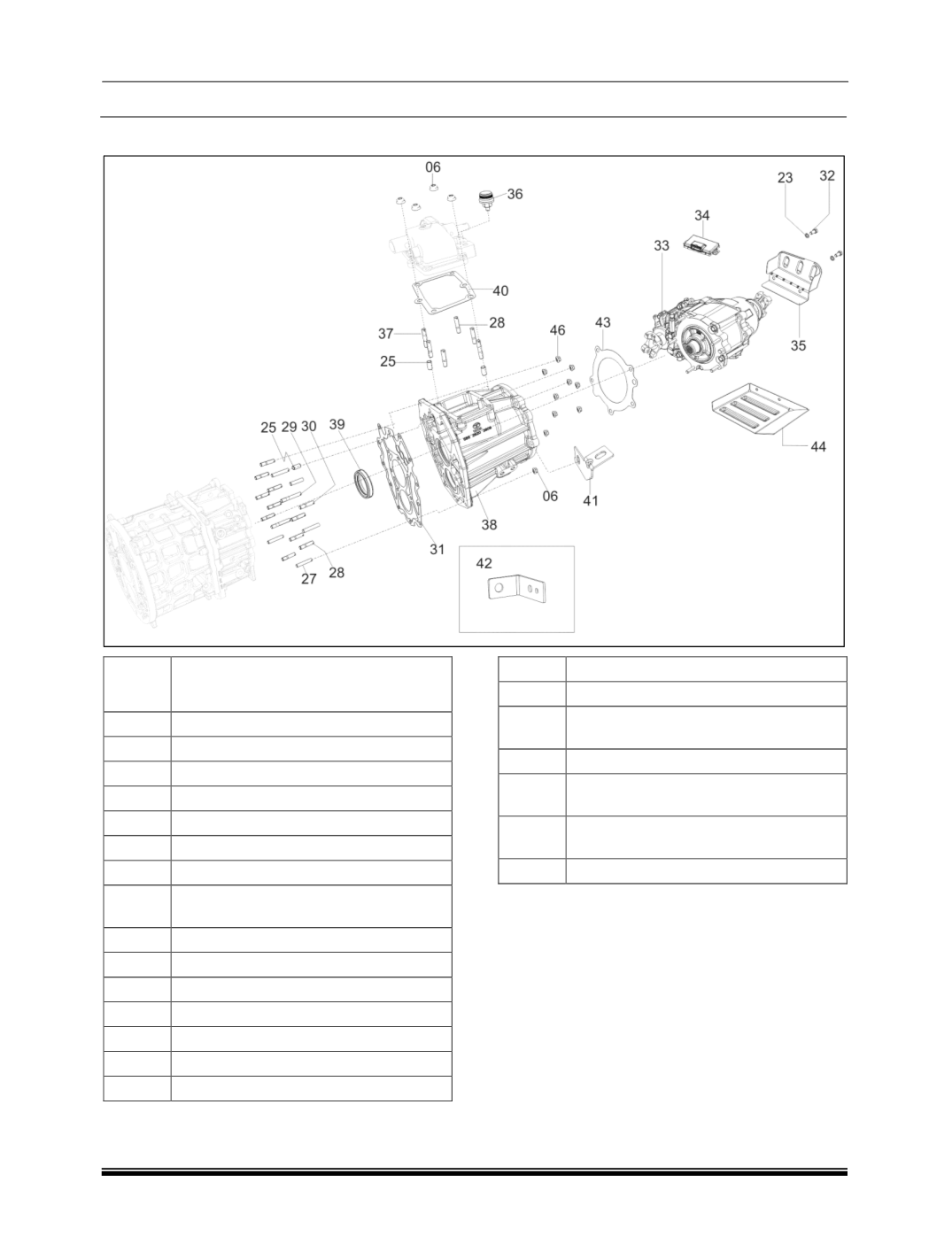

ADAPTOR ASSEMBLY

(4X4) (If Applicable)

SR.

NO

DESCRIPTION

06

Hex FL nut am8

23

Spring washer

25

Dowel sleeve

27

Stud transportation BKT MTG

28

Stud

29

Stud

30

Stud

31

Gasket 4x4 (between rear HSG and

adaptor HSG)

32

Hex screw M10x20

33

Transfer case w/o ECU

34

Transfer case controller with fad.

35

Protective cover (for electrical motor)

36

Assembly breather

37

Stud

38

Adaptor housing 4wd

39

Oil seal main shaft

39

Oil seal (main shaft)

40

Gasket (top cover and rear cover /

adaptor HSG)

41

Mtg_bracket_wh_chassis_on_gearbox

42

Reverse switch connector parking

bracket

43

Gasket - between adaptor housing

4x4 and transfer

44

Shield on transfer case
