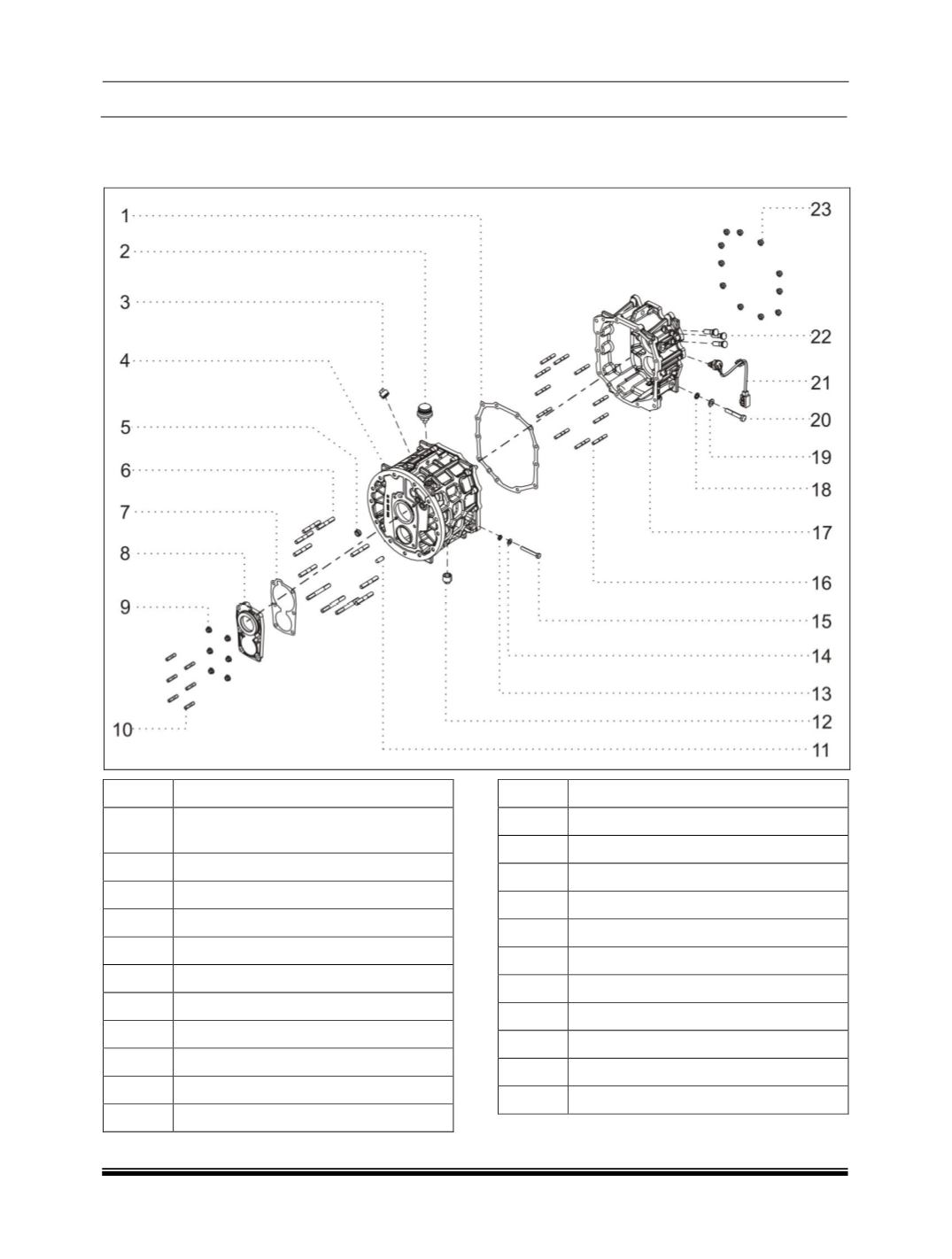

GEAR BOX
18
C. CONSTRUCTIONAL DETAILS
GEAR BOX
SR NO DESCRIPTION
01
Gasket
(Between front housing and
rear housing)
02
Assembly breather
03
Screw plug oil filling
04
Front housing
05
Cap
(Shifter shaft)
06
Stud
07
Gasket
(Gear case cover front)
08
Assembly front cover
09
Hexagonal flange nut AM8
10
Stud
11
Pin
(Gearbox housing joint)
12
Assembly magnetic plug
13
Bright washer 8.4
14
Spring washer B8
15
Hexagonal bolt M8X60
16
Stud M8X35
17
Rear housing
18
Bright washer 10.5
19
Spring washer B10
20
Hexagonal bolt M10X60
21
Reverse light switch
22
Shifter shaft detent
23
Hexagonal flange nut AM8
