46

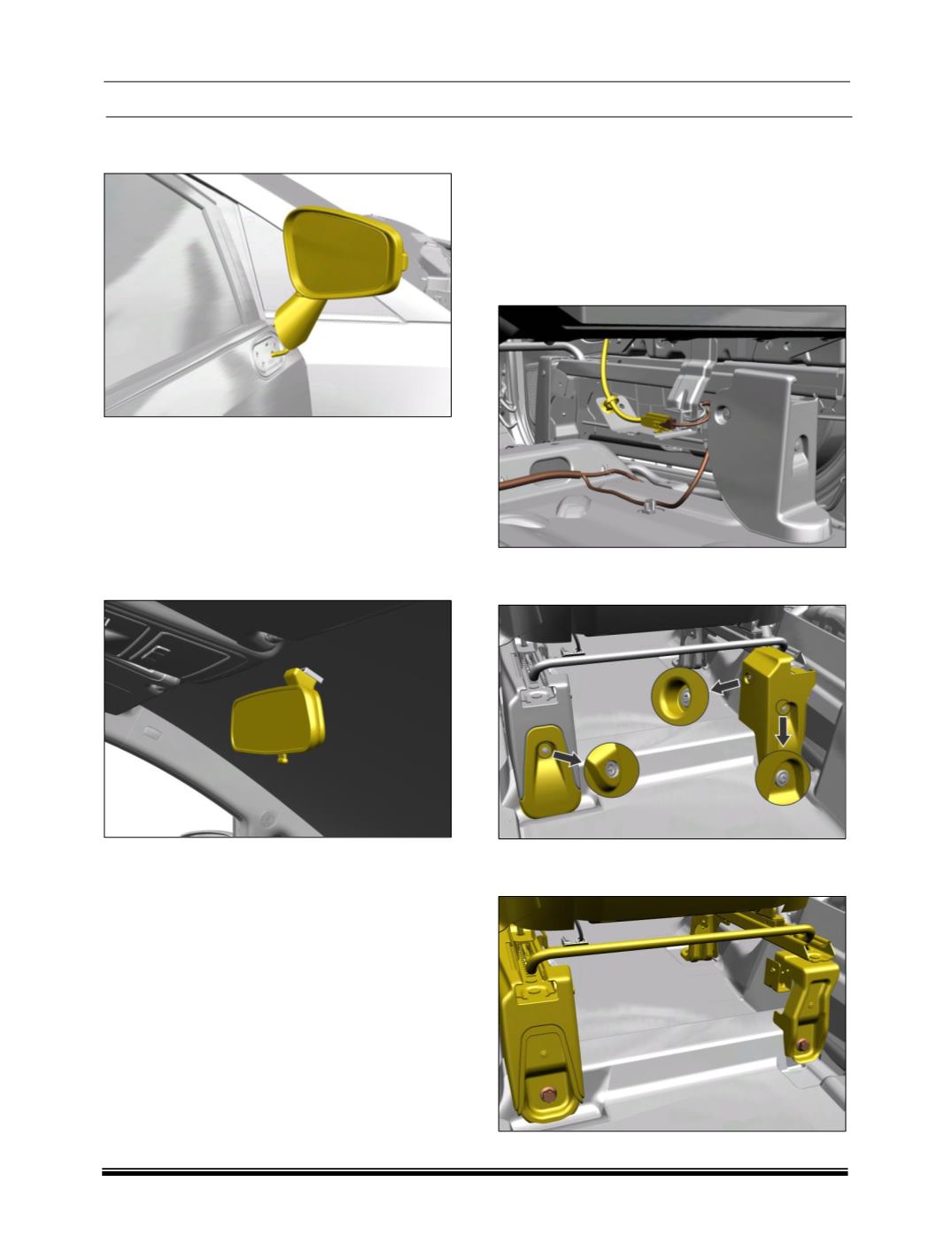

5. Disconnect the electrical connection and

remove the OVRM assembly.

ASSEMBLY:

For assembly follow the reverse procedure of

removal.

II.

INNER REAR VIEW MIRROR:

REMOVAL:

1. Push the mirror in the upward direction along

the windshield to remove the same.

ASSEMBLY:

For assembly follow reverse procedure of removal.

J. SEATS

I. FRONT SEAT

REMOVAL

NOTE:

The procedure for seat removal is applicable for

both i.e. driver and co-driver seat.

1.

Disconnect

the micro switch connector.

2. Loosen and remove two screws of front shoe

cover inboard RH and LH.

3. Loosen and remove two mounting bolts from

the front end.
