51

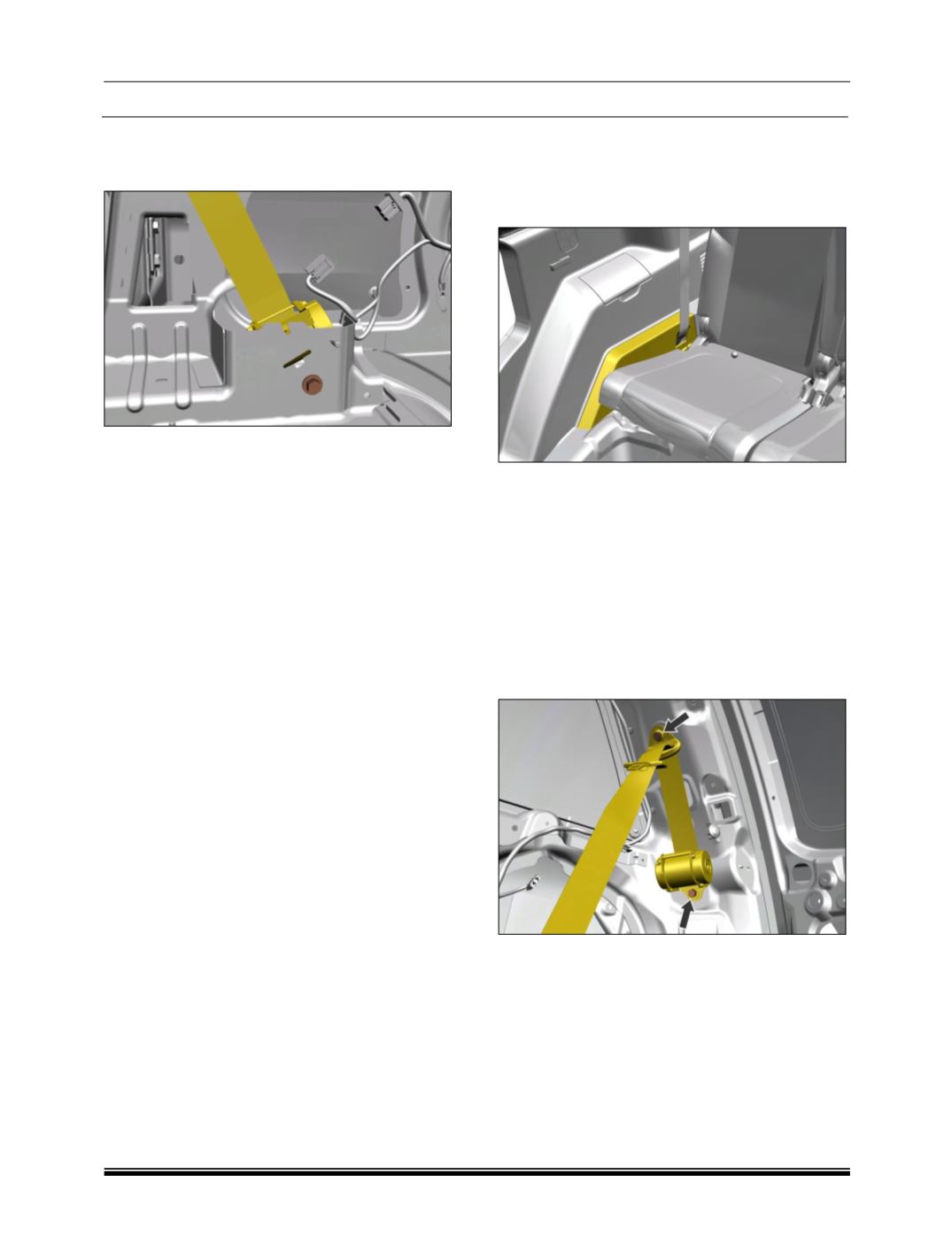

6. Remove the lower mounting bolt of bottom

anchorage and take out the seat belt

assembly.

FITMENT:

For fitment follow the reverse procedure of

removal.

NOTE:

Proper tightening torques need to be maintained

while installing the seat belt on the vehicle.

V.

THIRD ROW SEAT BELT:

REMOVAL:

1. Remove the third row seat mounting cover

trim.

2. Loosen and remove the lower mounting bolt of

seat belt.

3. Remove third row seat for easy access.

(For

procedure refer third row removal process.)

4. Remove the “D” pillar trim then take out bottom

anchorage assembly from “D” pillar cut out.

5. Remove the rear quarter trim.

(For procedure

refer

third row removal process.)

6. Loosen and remove the mounting bolts and

separate the third seat belt from the vehicle.

FITMENT:

For fitment follow reverse procedure of removal.
