1776 / 1906
BODY
41

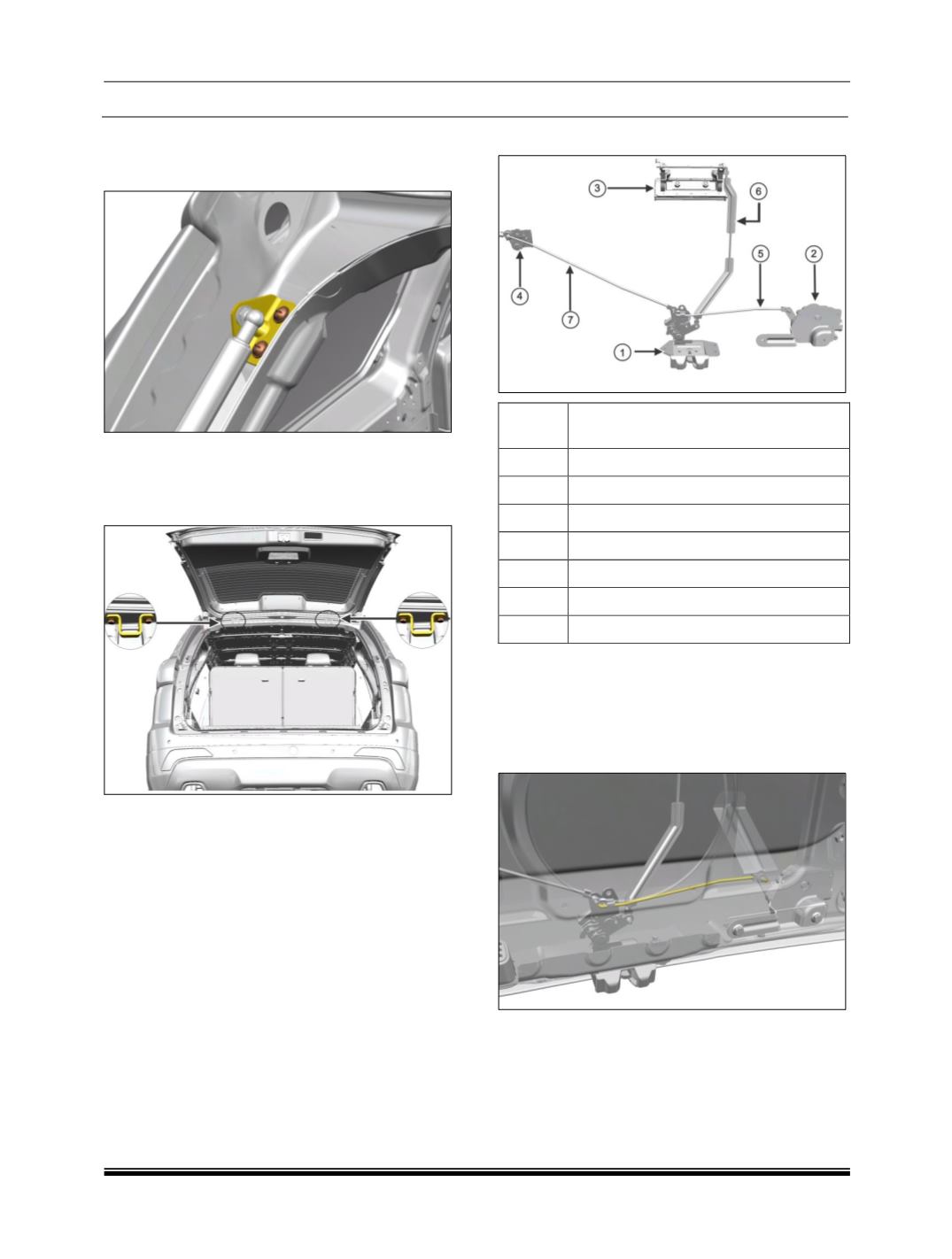

6. Support the tailgate assembly, loosen and
remove the mounting bolts and disconnect the
balancer from the shell.
7. Remove the top hinge mounting of the tail gate
by removing two mounting bolts. Follow the
same procedure at the other end and separate
the tail gate from the vehicle.
ASSEMBLY:
For assembly follow the reverse procedure of
removal.
II. TAIL GATE LATCH
SR.
NO
DESCRIPTION
1
Tailgate latch for centre lock
2
Tailgate actuator
3
Tailgate unlatch handle
4
Tailgate lock barrel
5
Link between latch and actuator
6
Link between latch and unlatch handle
7
Link between latch and lock barrel
REMOVAL
1. Remove the tail gate trim.
(For procedure refer
tail gate trim removal procedure.).
2. Disconnect the link between latch and the tail
gate actuator.
