HEXA

BODY

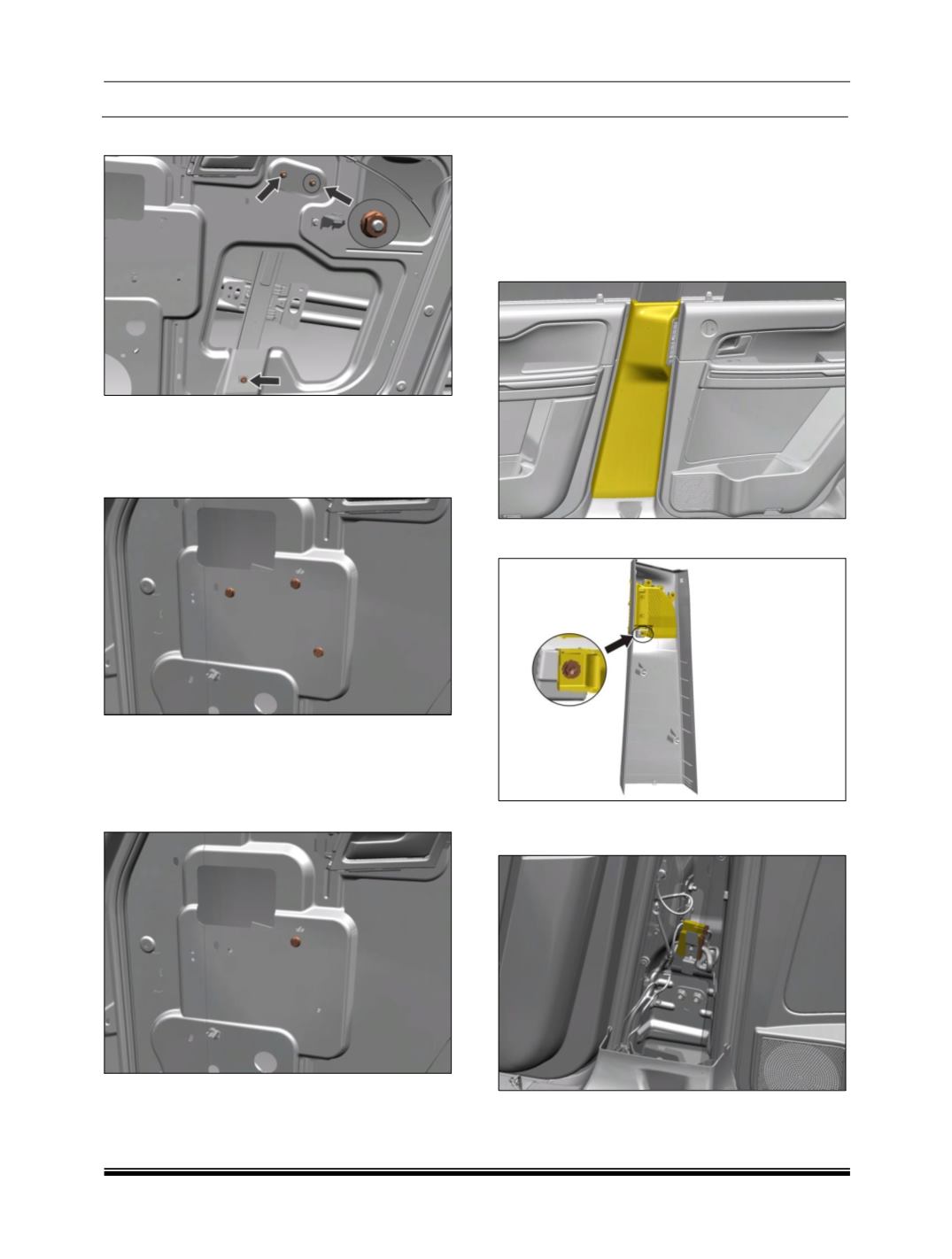

7. Loosen the window winding mountings.

8. Remove electrical connection of window

winding motor.

9. Remove two mounting bolts of winder

(

Motor

)

and loosen the third bolt.

10. Remove mounting nuts of winding mechanism

which were loosened earlier.

11. Remove third mounting bolt and support the

motor and remove the window winding

mechanism along with motor.

ASSEMBLY:

For assembly follow the reverse procedure of

removal.

NOTE:

While fitment fit the window winding motor first.

VII.

REAR DOOR

REMOVAL:

1. Remove the “B” pillar trim.

(For procedure refer

“B” pillar trim removal process.)

2. Remove the AC duct from “B” pillar trim.

3. Pull out the wiring harness from the “B” pillar

and disconnect the electrical connector.

4. Remove the door trim (For procedure refer

Door trim removal section).
