HEXA

ELECTRICAL

312

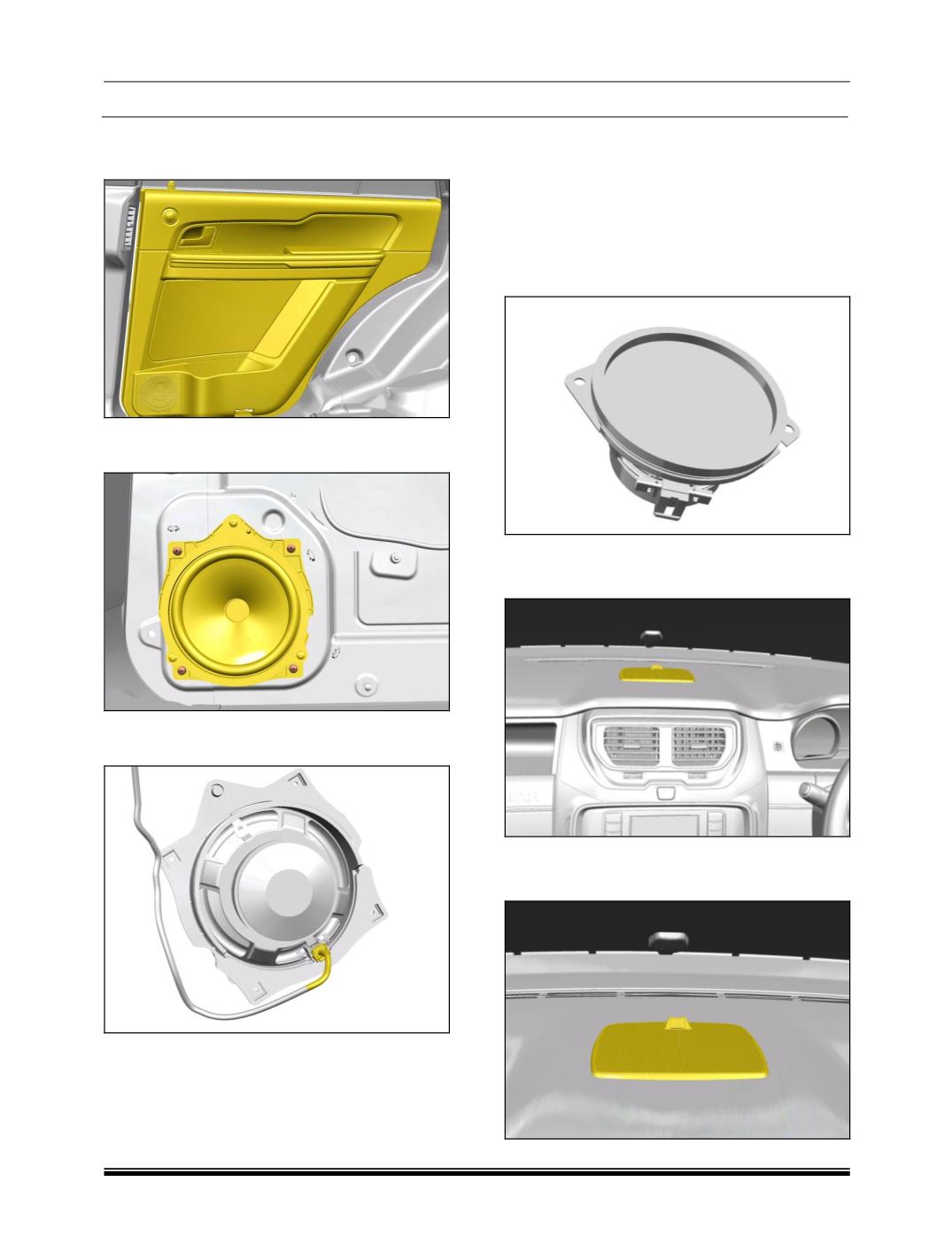

REMOVAL

1. Remove the door trim (

refer Body section

2. Loosen and remove the four mounting screws of

speaker.

3. Pull out the speaker. Disconnect the connection

and take out the speaker.

REFITMENT

1. Connect the electrical connection.

2. Fit the speaker on speaker spacer and tighten

the three mounting screws of speaker.

Tightening torque for screws – 0.3 Kgfm

3. Refit the door trim.

NOTE:

Same procedure is applicable for other door speak-

ers. Speakers should not be interchanged.

CENTRE SPEAKERS

Center Speaker is a full range speaker produces

mid frequencies.

LOCATION

Center Speaker is mounted on dashboard.

REMOVAL

1. Remove the speaker grille (Refer body section).
