ELECTRICAL
318
REFITMENT
1. Assemble the bracket and amplifier together with
four self-tapping screws.
2. Connect the electrical connections.
3. Fit the Audio Amplifier with four screws on floor
and one on quarter panel.
Tightening torque for screws – 0.3 Kgfm
4. Fit the rear quarter door trim LH (Refer body sec-
tion).

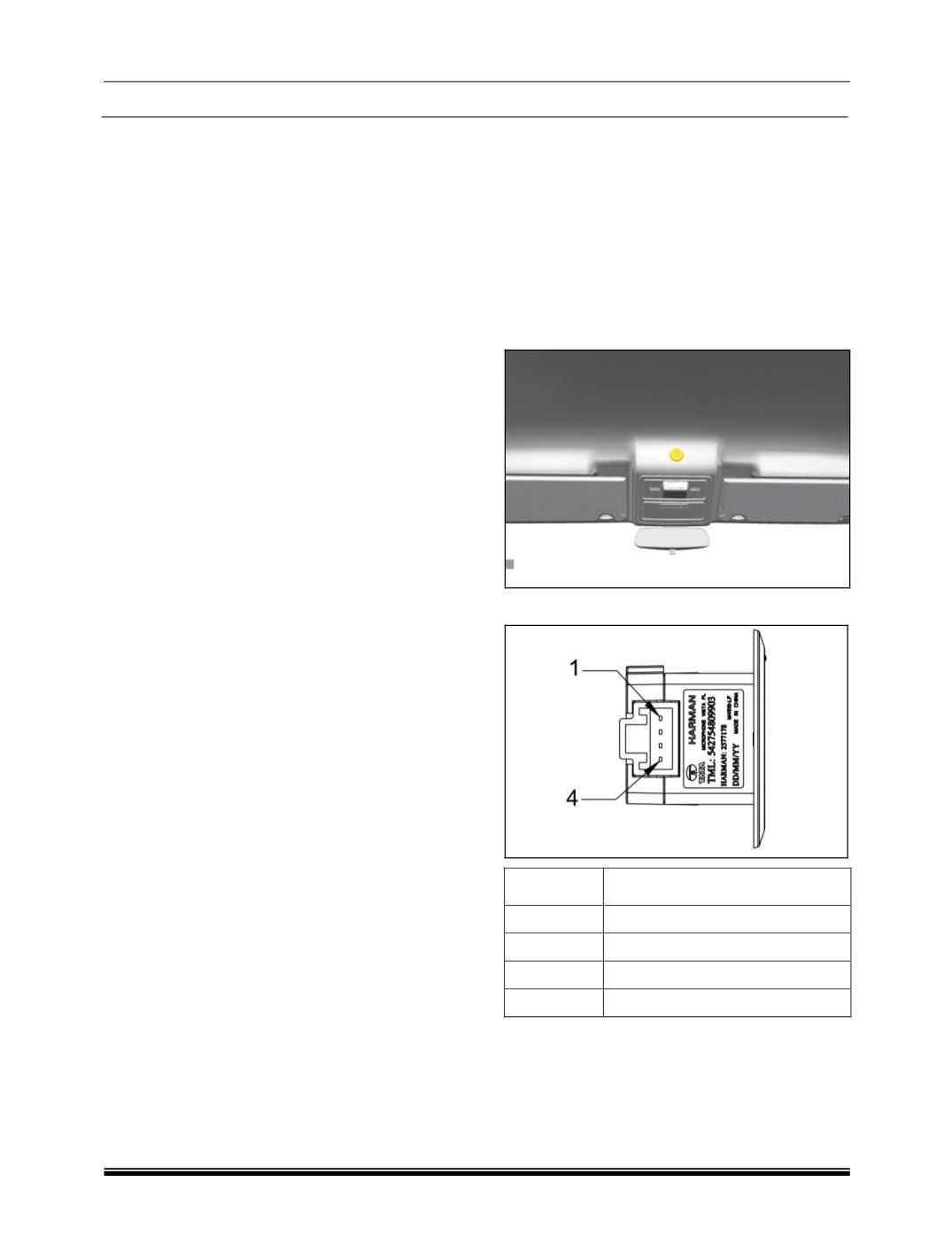

8.17.5 MICROPHONE
A microphone is an acoustic-to-electric transducer
or sensor that converts sound into an electrical sig-
nal.
Themicrophone helps communicate calls through the
infotainment system. In some models provision is giv-
en for fitment.
LOCATION
It is fitted at front center on the headlining next to
front roof console.
PINOUT DETAILS
PIN
DESCRIPTION
1
MIC -
2
MIC +
3
NC
4
NC
