ELECTRICAL
317

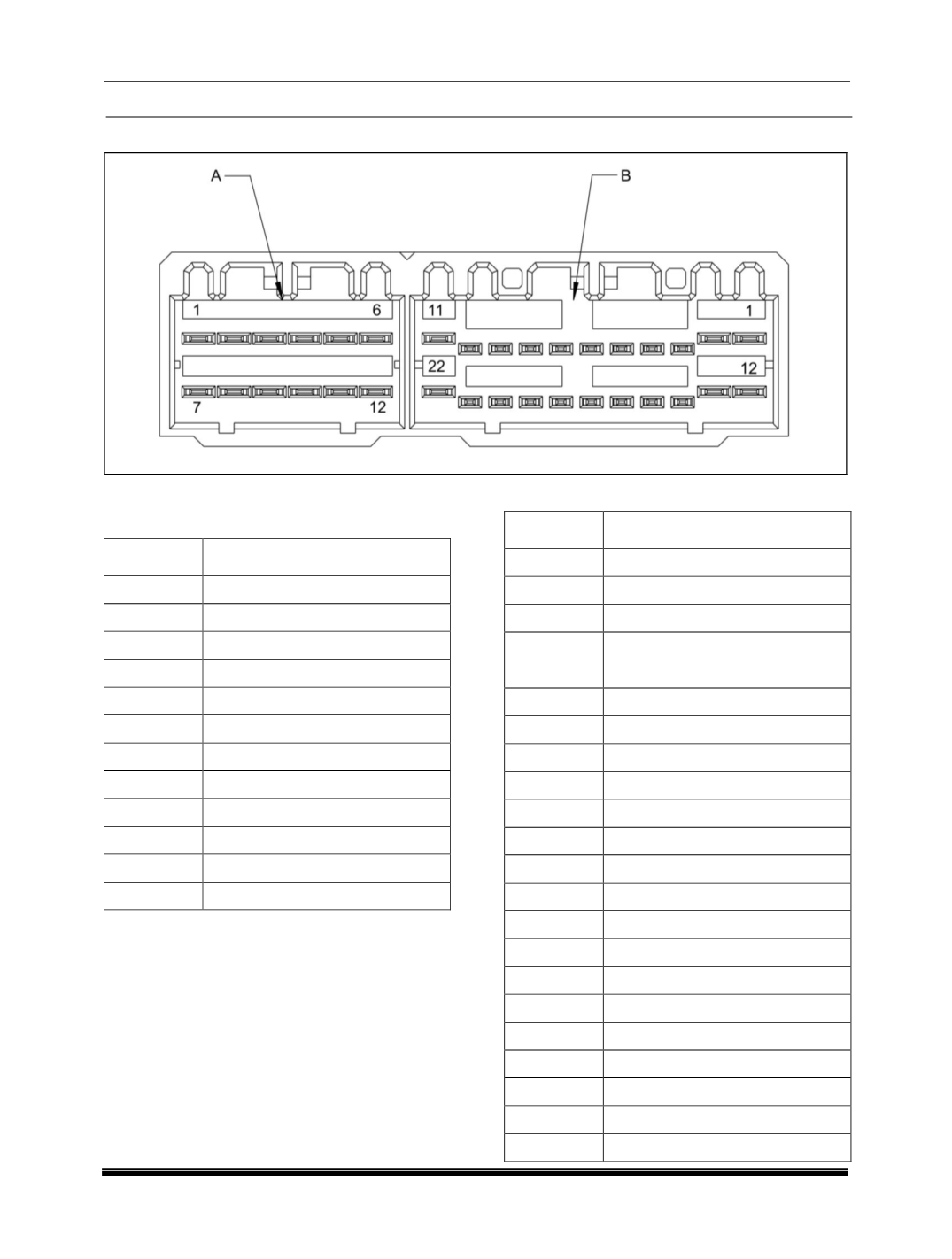

CONNECTOR DETAILS
PINOUT DETAILS
Connector A
PIN
DESCRIPTION
1
VBAT
2
VBAT
3
SUB LEFT +
4
SUB RIGHT +
5
LEFT FRONT +
6
RIGHT FRONT +
7
GND
8
GND
9
SUB LEFT -
10
SUB RIGHT -
11
LEFT FRONT -
12
RIGHT FRONT -
Connector B
PIN
DESCRIPTION
1
ACC
2
RESERVED
3
RR IN +
4
LR IN +
5
RF IN +
6
LF IN +
7
RESERVED
8
RIGHT REAR +
9
LEFT REAR +
10
RESERVED
11
CENTRE +
12
MUTE
13
RESERVED
14
RR IN -
15
LR IN -
16
RF IN -
17
LF IN -
18
RESERVED
19
RIGHT REAR -
20
LEFT REAR -
21
RESERVED
22
CENTRE -
