1610 / 1906
ELECTRICAL
308
PIN DETAILS OF B:
POSITIONDETAIL DESCRIPTION
1
NC
2
GND
3
Remote_TFT_EN
4
RVc Video Signal
5
RVc Video Sheild
6
RVC_PWR
7
Aux In Video Shield
8
Aux In Video Sig
9
NC
10
NC
11
ProtectGPIO2
12
ProtectGPIO1
13
RVc Video GND
14
USB2_5V
15
USB2GND
16
Aux In Video GND
PIN DETAILS OF C:
POSITION DETAIL DESCRIPTION
1
USB1_D-
2
USB2_D-
3
USB1_D+
4
USB2_D+
SPECIFICATIONS:
Operating voltage: 9-16V
Test voltage: 13.5V
Operating current: 1.5A 4×0.5@4 ohm load
Maximum current: 15A
Operating temperature: -30ºC-70ºC
Storage temperature: -40ºC-90ºC
Leakage current: 0.6mA

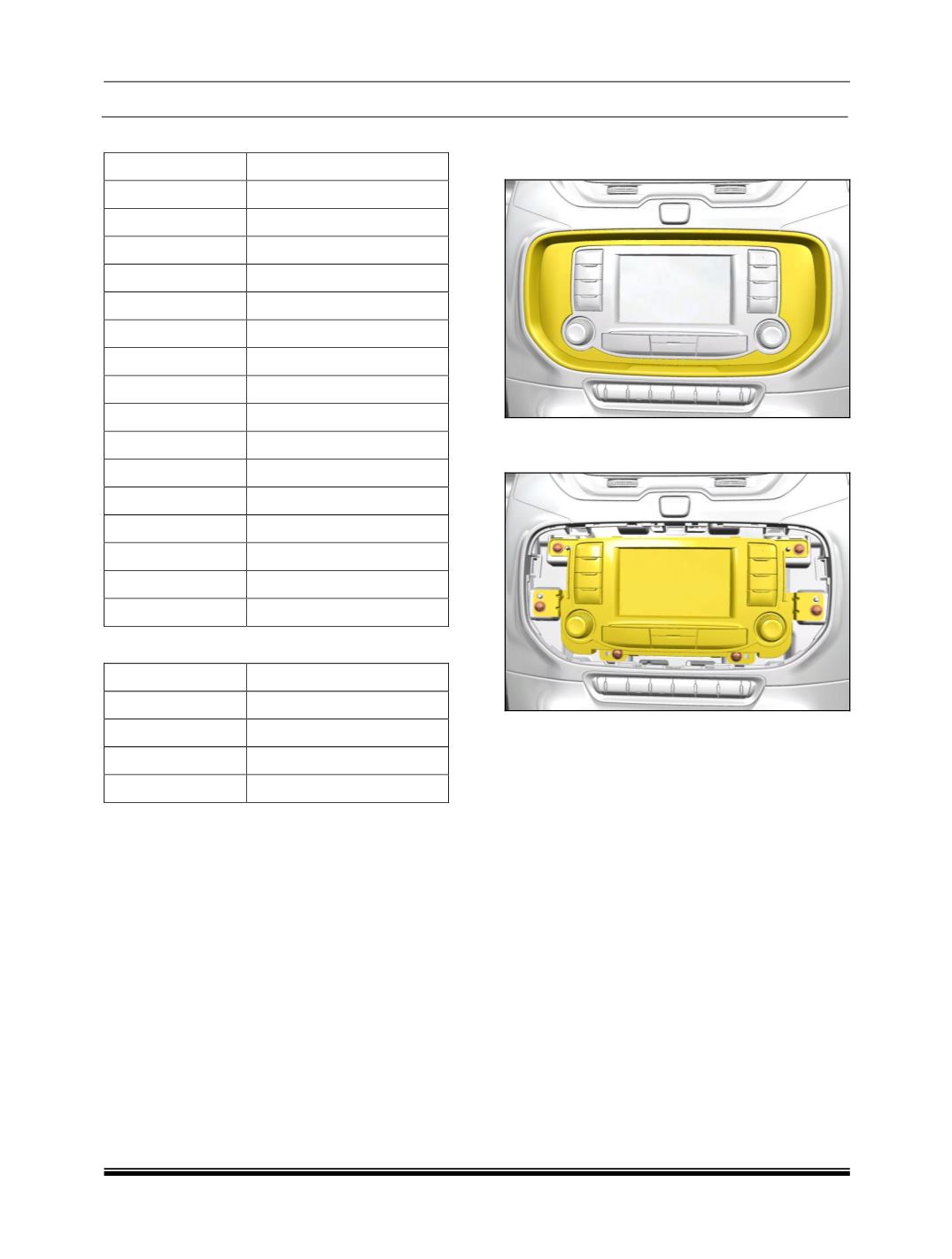

REMOVAL
1. Carefully pry out the infotainment cover.
2. Remove the 6 mounting screw and gently pullout
the unit.
3. Disconnect all the electrical connections.
REFITMENT
For refitment follow the procedure in reverse.
