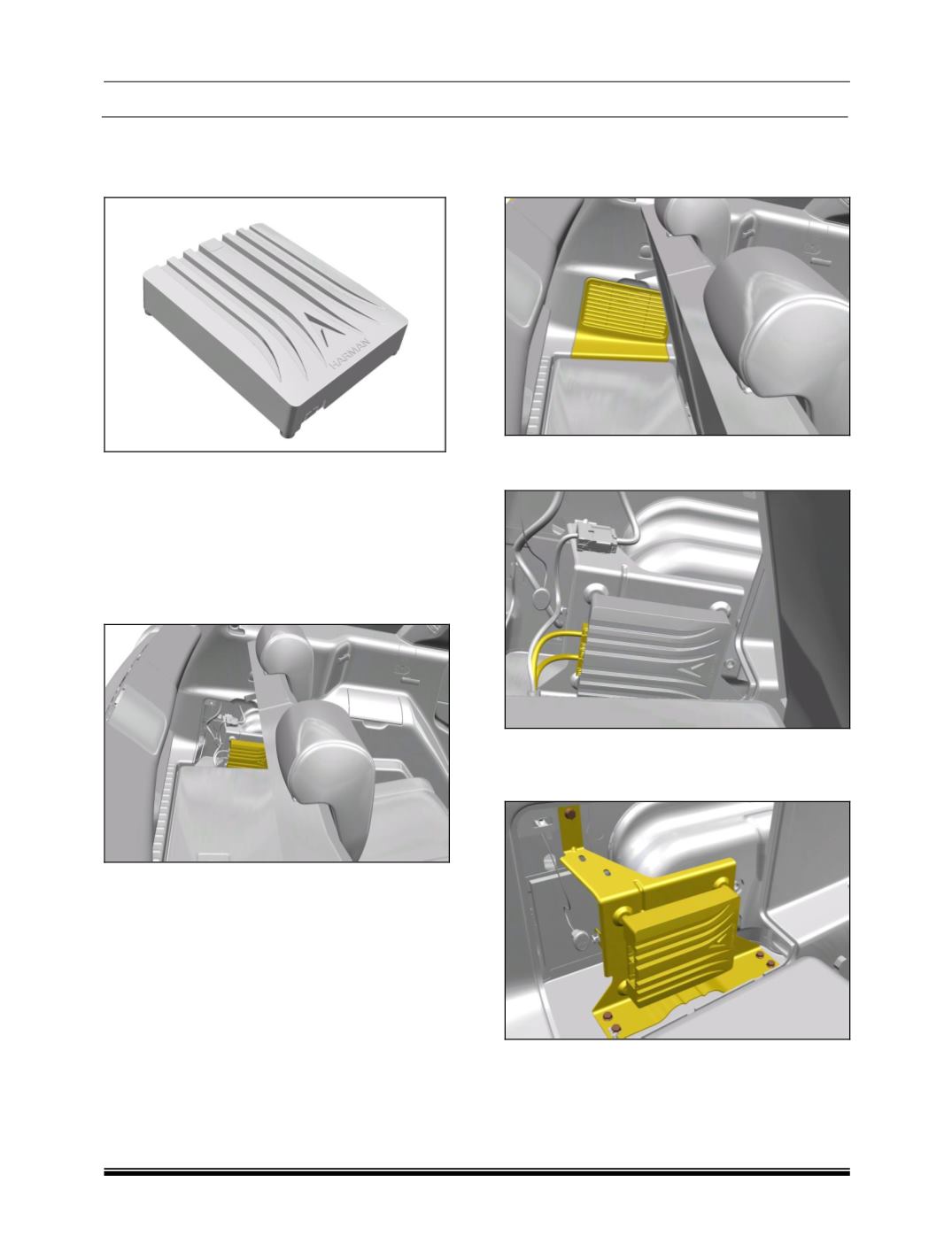

8.17.4 AUDIO AMPLIFIER

Amplifier provides processed amplified Outputs to

all speakers, tweeter and subwoofer.

SPECIFICATIONS:

Operating voltage: 9 to 16 V

Nominal Voltage: 12V

Operating Temperature: - 20°C to +70°C

LOCATION:

Amplifier is mounted behind rear quarter trim LH.

REMOVAL

1. Remove the rear quarter trim LH (Refer body

section).

2. Disconnect the electrical connection of audio am-

plifier.

3. Loosen and remove the four mountings screws

on Floor and one on rear quarter panel LH to take

out the amplifier with bracket.
