HEXA

ELECTRICAL

311

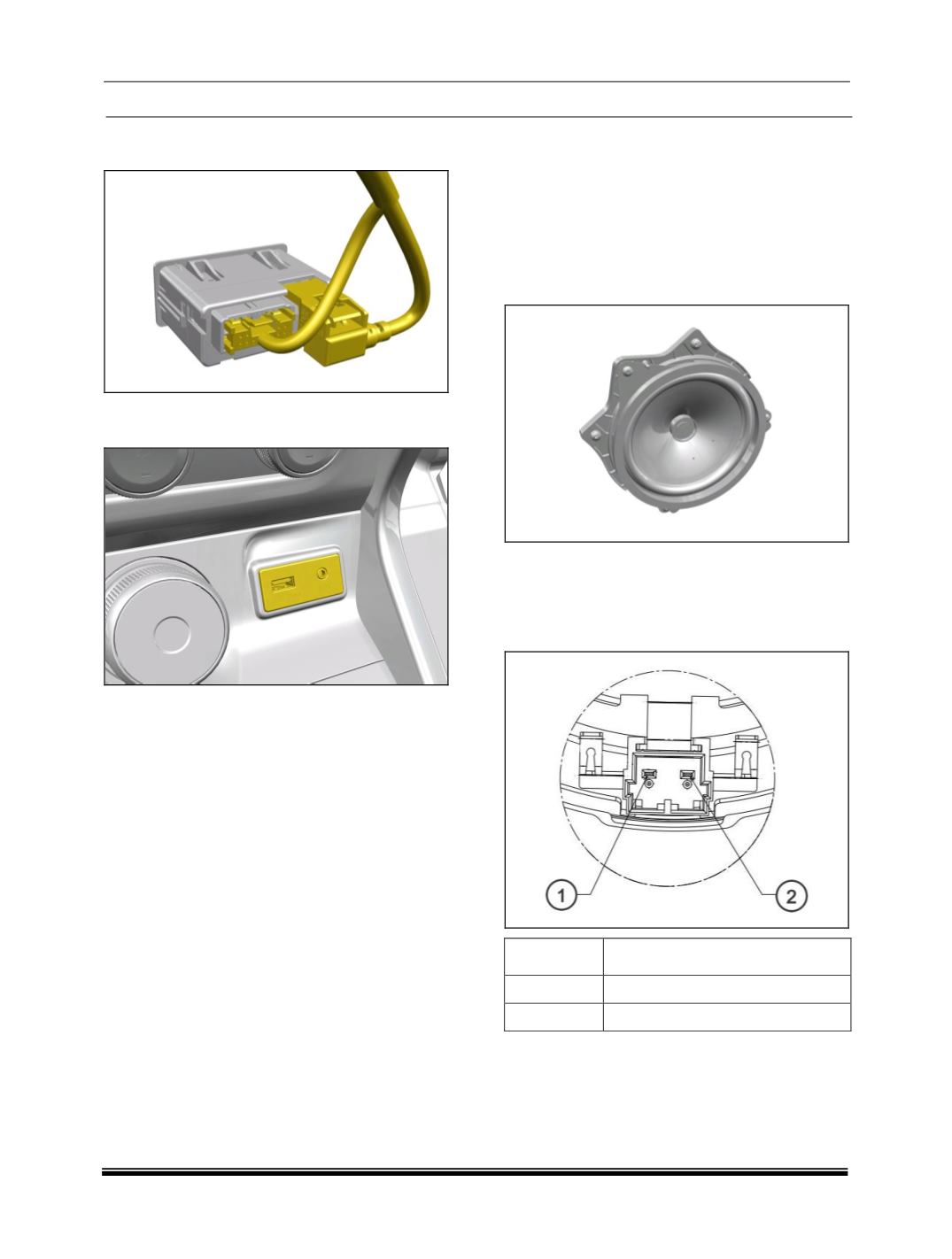

2. Disconnect the electrical connections. take out

the switch assy.

3. Press snaps of USB module and push it out from

mounting cutout.

REFITMENT

For refitment follow the procedure in reverse.

8.17.2 SPEAKERS

FRONT AND REAR DOOR SPEAKERS

Front and rear door and speakers are component

speaker which consist of woofer only

Speakers and tweeters are provided on models with

infotainment system. Provisions are given for music

system and speakers on models without infotainment

system.

LOCATION

Front & rear door speakers are mounted on all four

doors inner panel.

PINOUT DETAILS

PIN

DESCRIPTION

-ve

+ve
