Anti-lock Braking System(ABS)
23

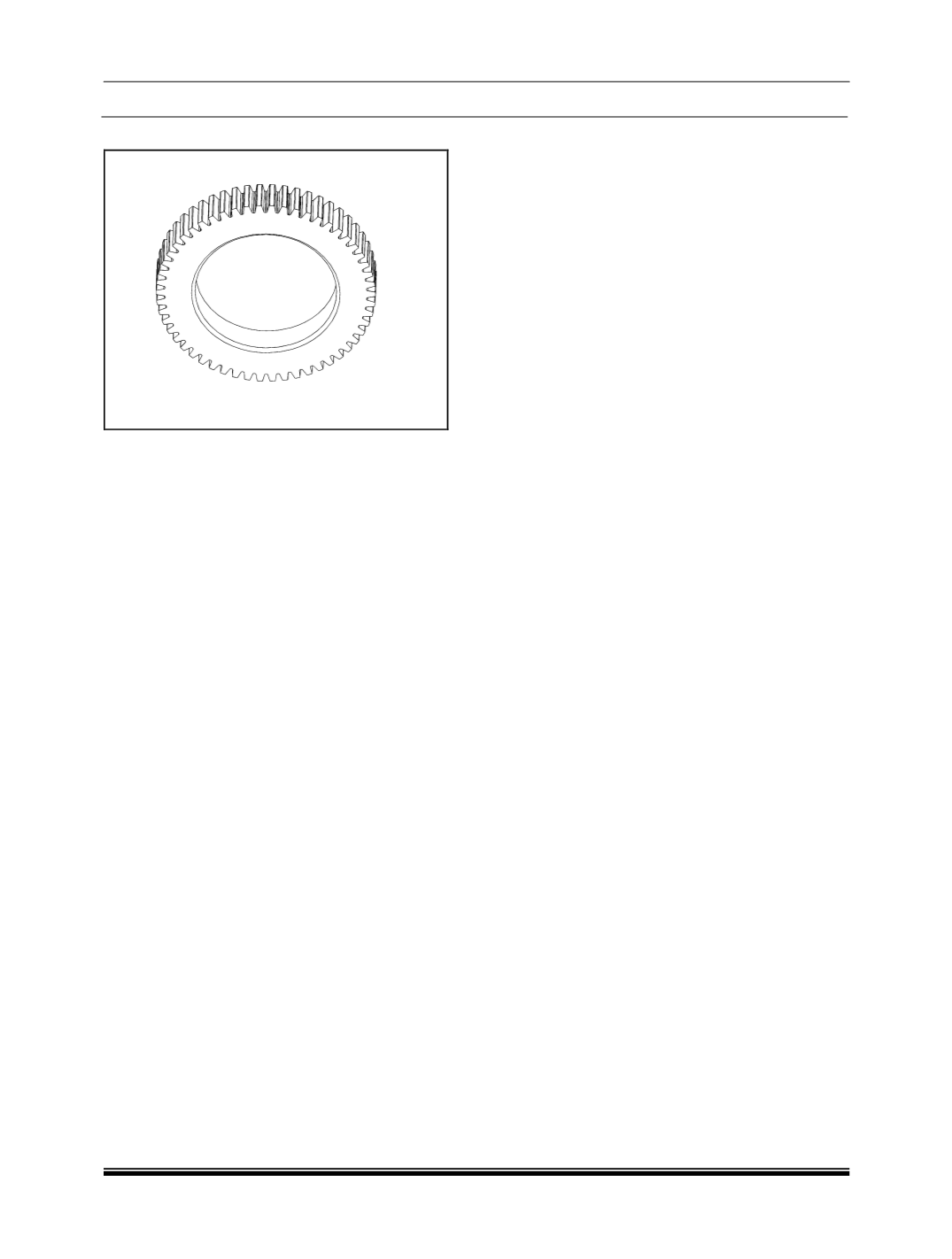

E. REAR TONER RING :
1. Position the vehicle in a 2 poster lift and raise
it.
2. Remove the rear axle wheel end axle shaft.
(For procedure refer Rear Axle section).
3. Closely inspect the toner ring and remove the
dust, mud or iron particles in between the
teeth.
4. Check for any damaged teeth. (Rear toner
ring got 54 teeth).
Replace toner ring if teeth are missing or
damaged.
Refer rear axle section and use
recommended tool to remove the toner ring.
