Anti-lock Braking System(ABS)
20

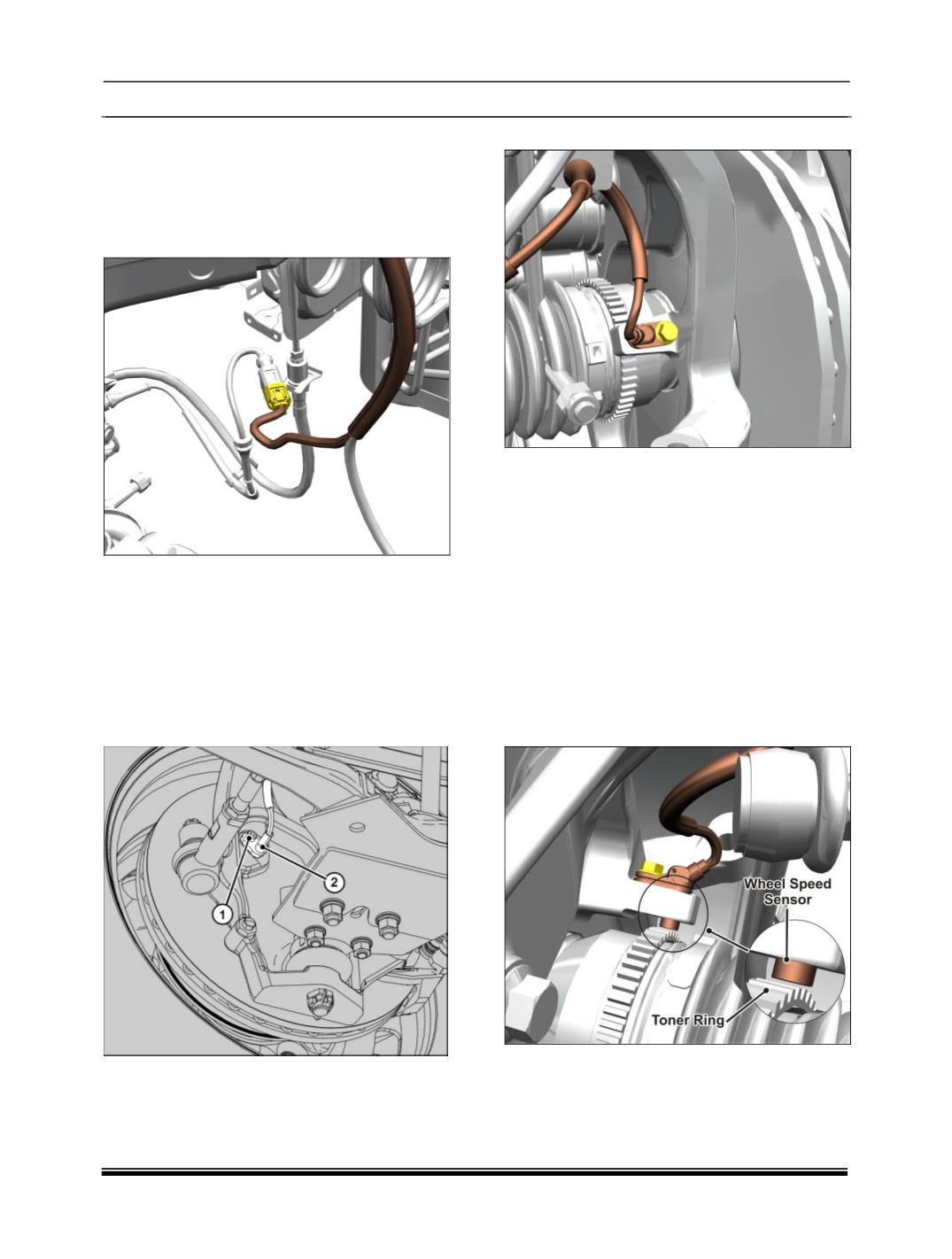

B. FRONT WHEEL SPEED SENSOR :
Removal :
1. Position the vehicle on two post lift.
2. Disconnect electrical connector of wheel
speed sensor located on the bracket at the
rear of the front suspension tower.
CAUTION :
Take proper precautions while disconnecting the
wheel speed sensor from vehicle wiring harness,
otherwise it might damage the pins of the
connecter.
3. Remove sensor mounting screw (1) and
remove the wheel speed sensor (2) from the
steering knuckle.
For 4x2 vehicles
For 4x4 vehicles
Installation :
A. Clean speed sensor and its mounting surface.
B. Route the cable properly.
C. Connect the wiring harness connector to
wheel speed sensor cable.
D. Make sure that the sensor cable connector is
fully seated and locked into vehicle wiring
harness connector.
E. Insert the sensor into the sensor mounting
hole and tighten the bolt to the specified
torque (1.0 Kg-m).
F. Check the air gap between the face of the
wheel speed sensor and the top surface of
the toner wheel using a feeler gauge.
