Anti-lock Braking System(ABS)
27
1. Start Communication :

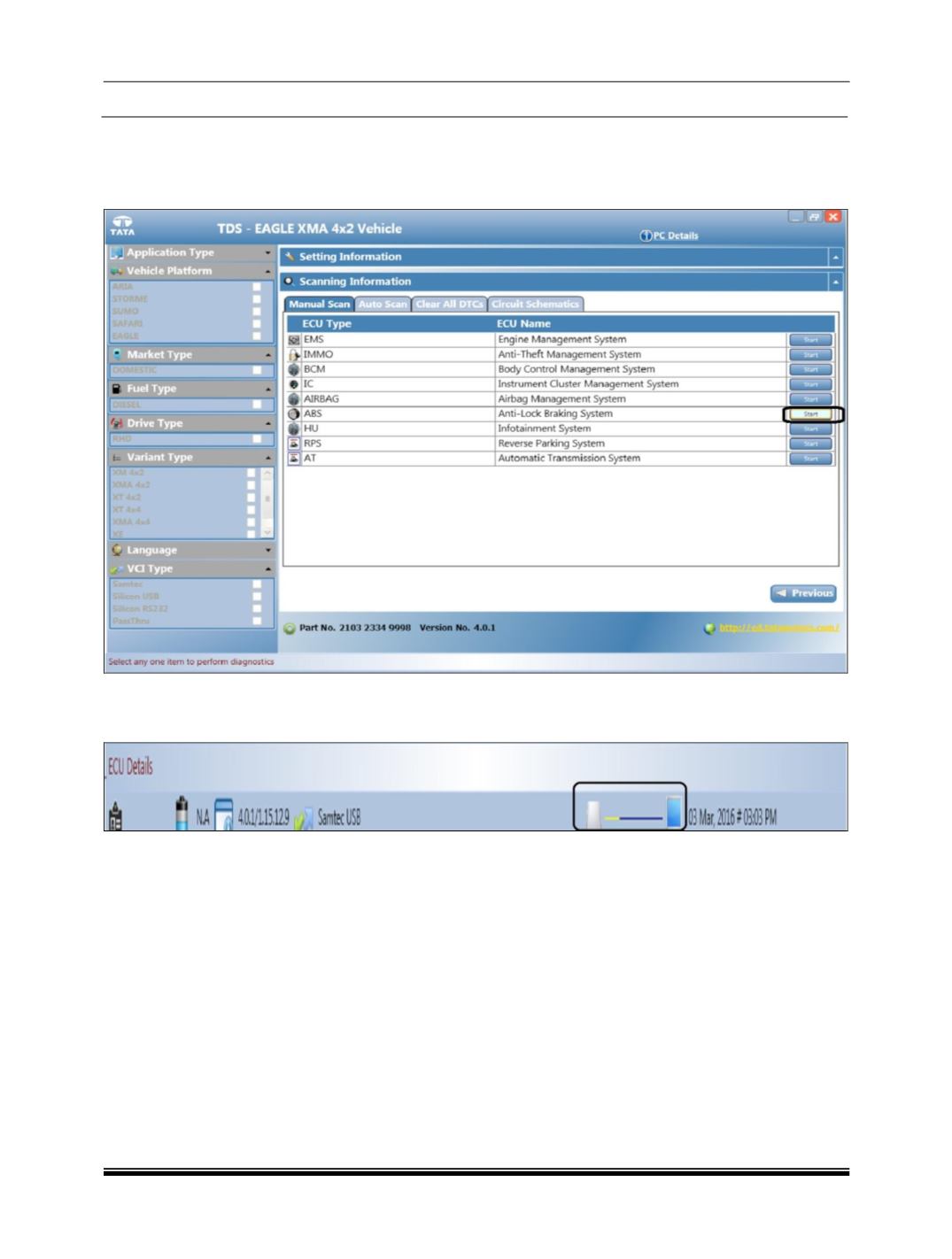

Once you arrive at below screen, you can see all the ECUs present in that particular variant of the chosen
vehicle platform. Click on the Start button next to ABS ECU to establish the communication between ABS
ECU and your PC. Refer connection diagram below.
Once the communication is established the SERVICES panel will open automatically. You can see the
moving green line at the bottom as a representation of established communication between ECU and your
PC as shown in below diagram.
