HEXA

Anti-lock Braking System(ABS)

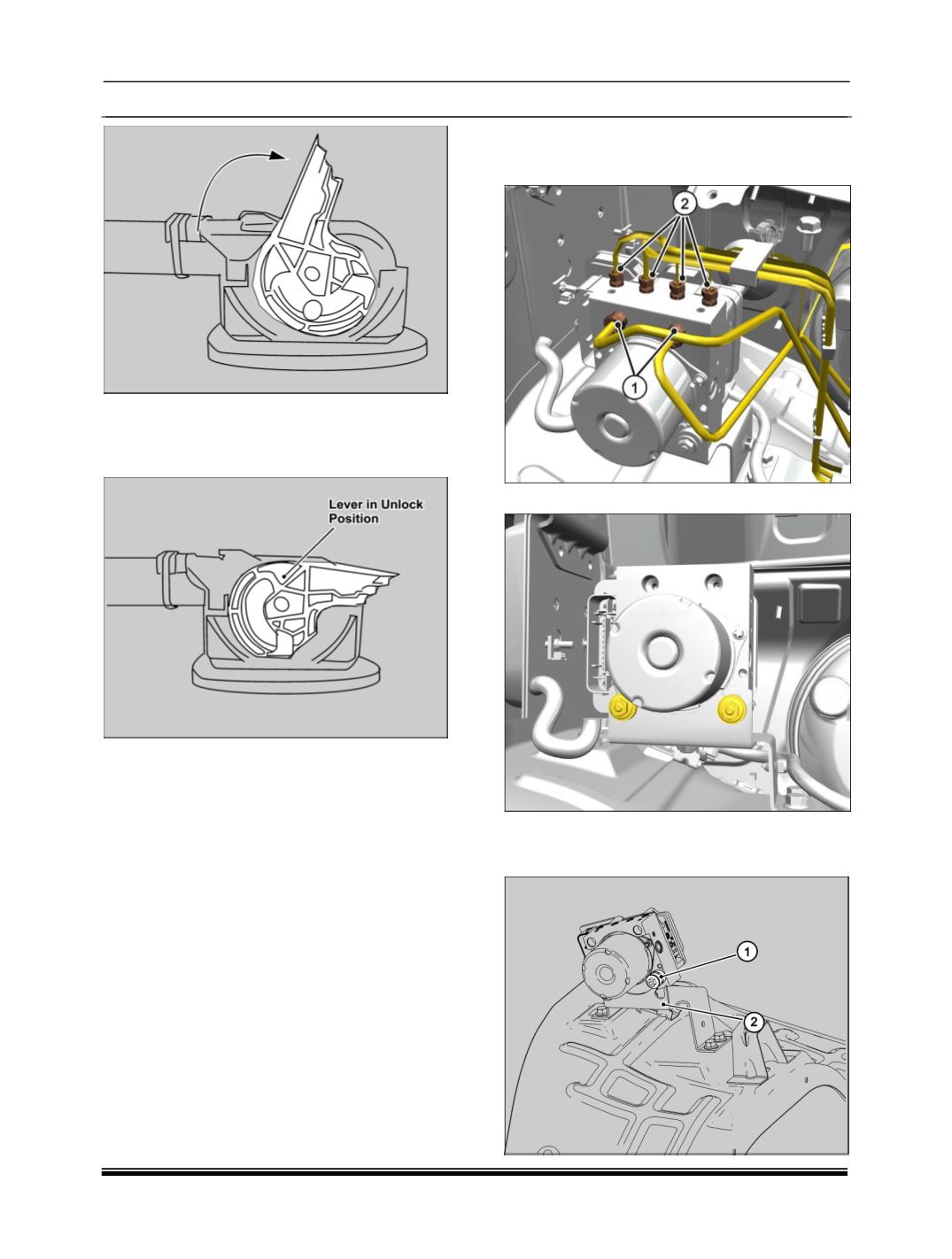

(ii) Lock the lever to it’s unlocking position by

pressing the lever till the

Click

sound is

heard and remove the connector from ABS

ECU.

WARNING :

Never apply a 12V power source to any terminal

of the ECU connector when it’s disconnected.

3. Identify the brake pipes going into and out of

the Hydraulic Unit (HCU) with tags so that

reinstallation of the brake lines becomes

easy.

NOTE:

Proper care should be taken before disconnecting

the brake pipes from HCU and the HCU must be

thoroughly cleaned on the outside to prevent any

dirt particles from falling into the ports of HCU or

entering the brake pipes.

4. Remove the brake pipes from MC (1) and

feed pipes to calipers (2) from the HCU and

plug the ports with suitable grommet / Cap.

5. Loosen the 2 holding nuts of the ABS ECU.

6. Lift the right side

(when viewed from front)

damper element (1) from the ECU mounting

bracket (2).
