Anti-lock Braking System(ABS)
29

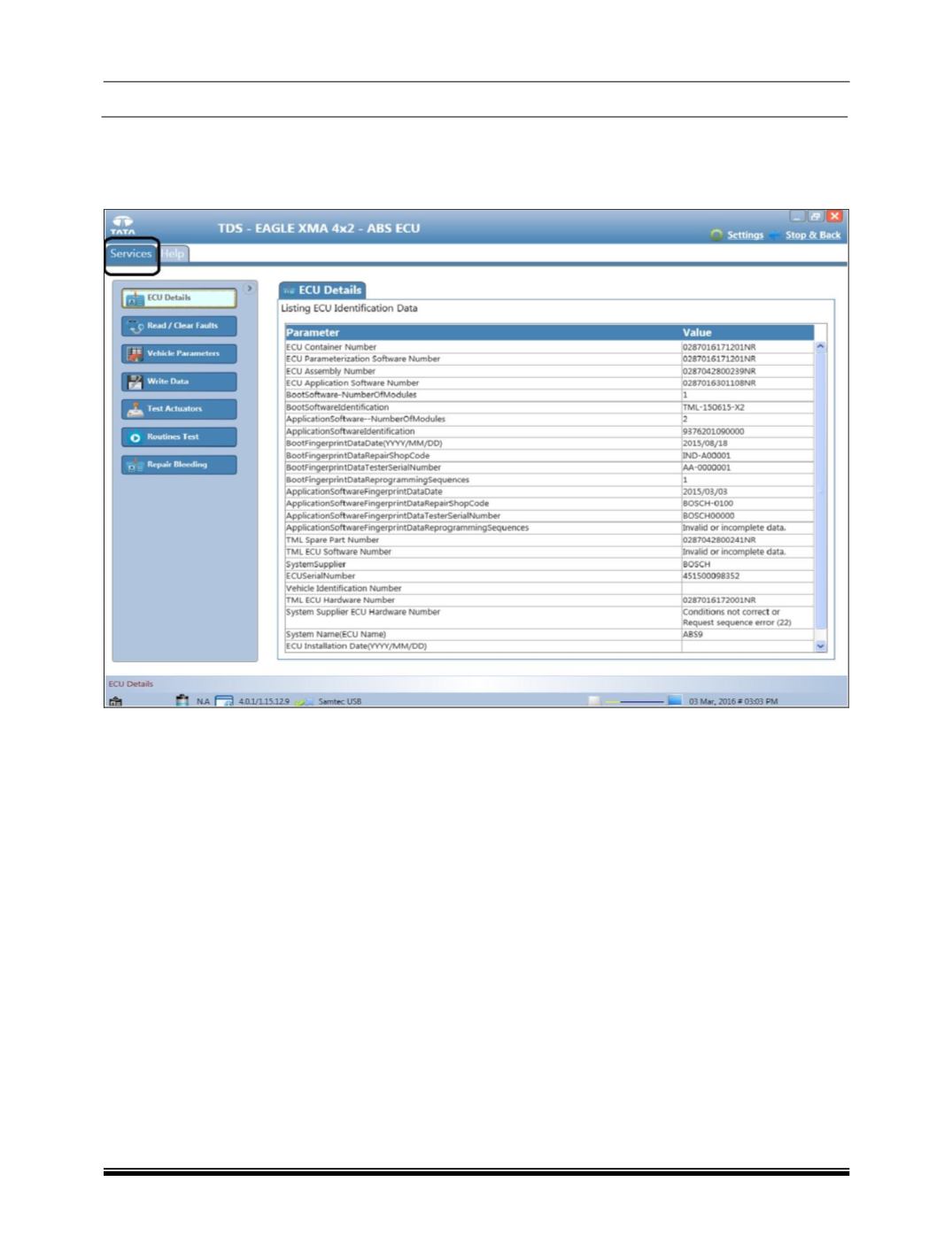

3. Introduction Of Services Panel :
SERVICES panel contains command buttons to execute various services supported by ECU. Also at the
bottom of the panel, displays ECU Details, Mode of communication (e.g. Samtec USB) and Version number
of the software.
Click on the buttons to execute respective Service of the ECU. Use the scroll bar to view more ECU Services
if available.
Services can be executed from “Services” menu bar. Click on Services
[Service name]. Auto hiding of
SERVICES panel is provided to have bigger preview of services data.
