FRONT AXLE (4X4)

33

III

WHEEL END ASSEMBLY

DISMENTALING

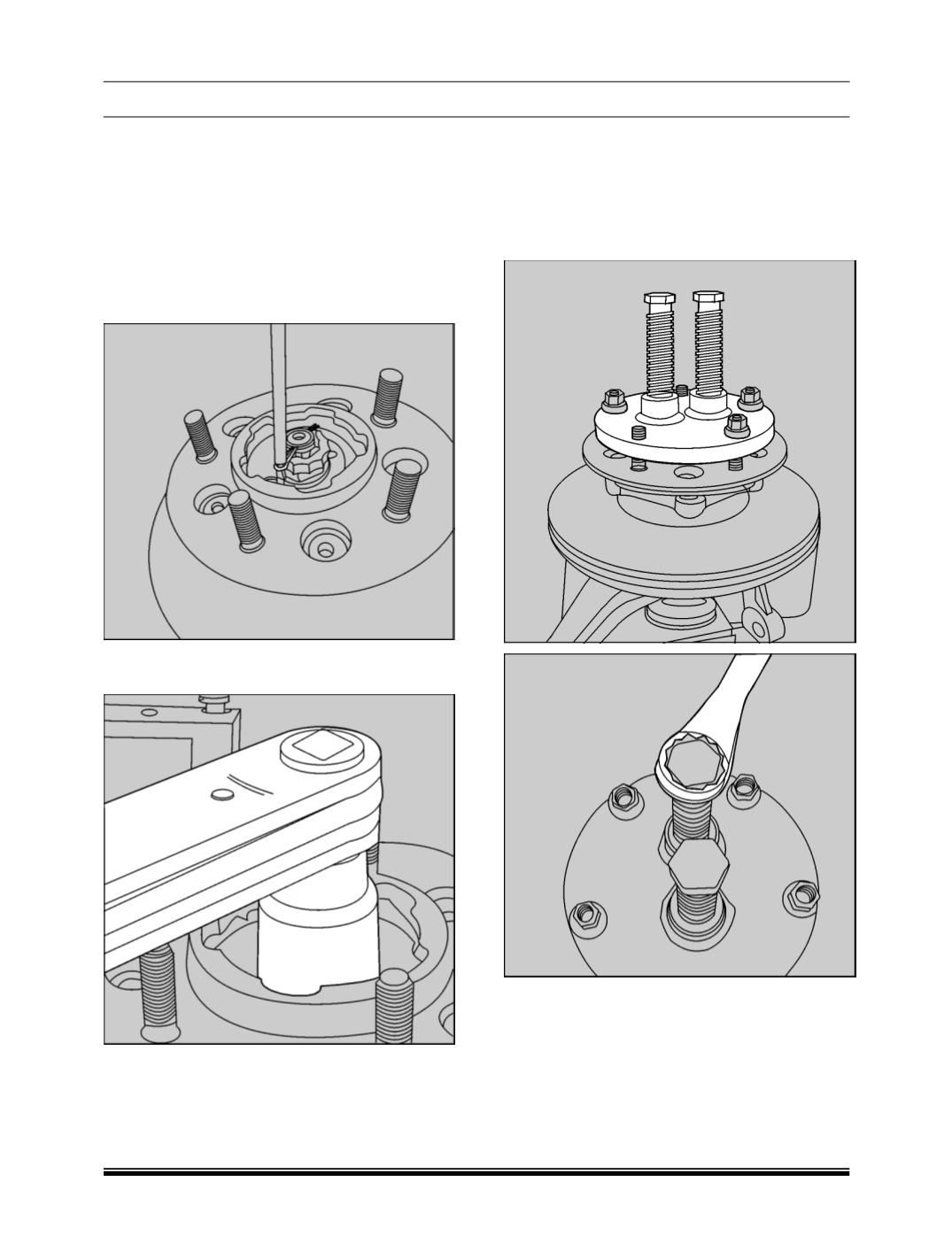

1. Take the wheel end assembly and mount it on

the suitable stand.

NOTE

Ensure No Damage to the CV Joints while

mounting on the stand

2. Remove the cotter pin and remove the cap.

3. Lock the spindle

(Wheel)

bolts and remove the

spindle nut.

4. Tap with the nylon mallet and remove the CV

joint from the wheel end assembly.

NOTE

Ensure No Damage to CV Joints and Rubber

Boots are not cut.

5. Use special puller

(Part No.287058903311)

for

spindle removal from wheel end and remove

the spindle from the wheel end assembly
