HEXA

FRONT AXLE (4X4)

ASSEMBLY

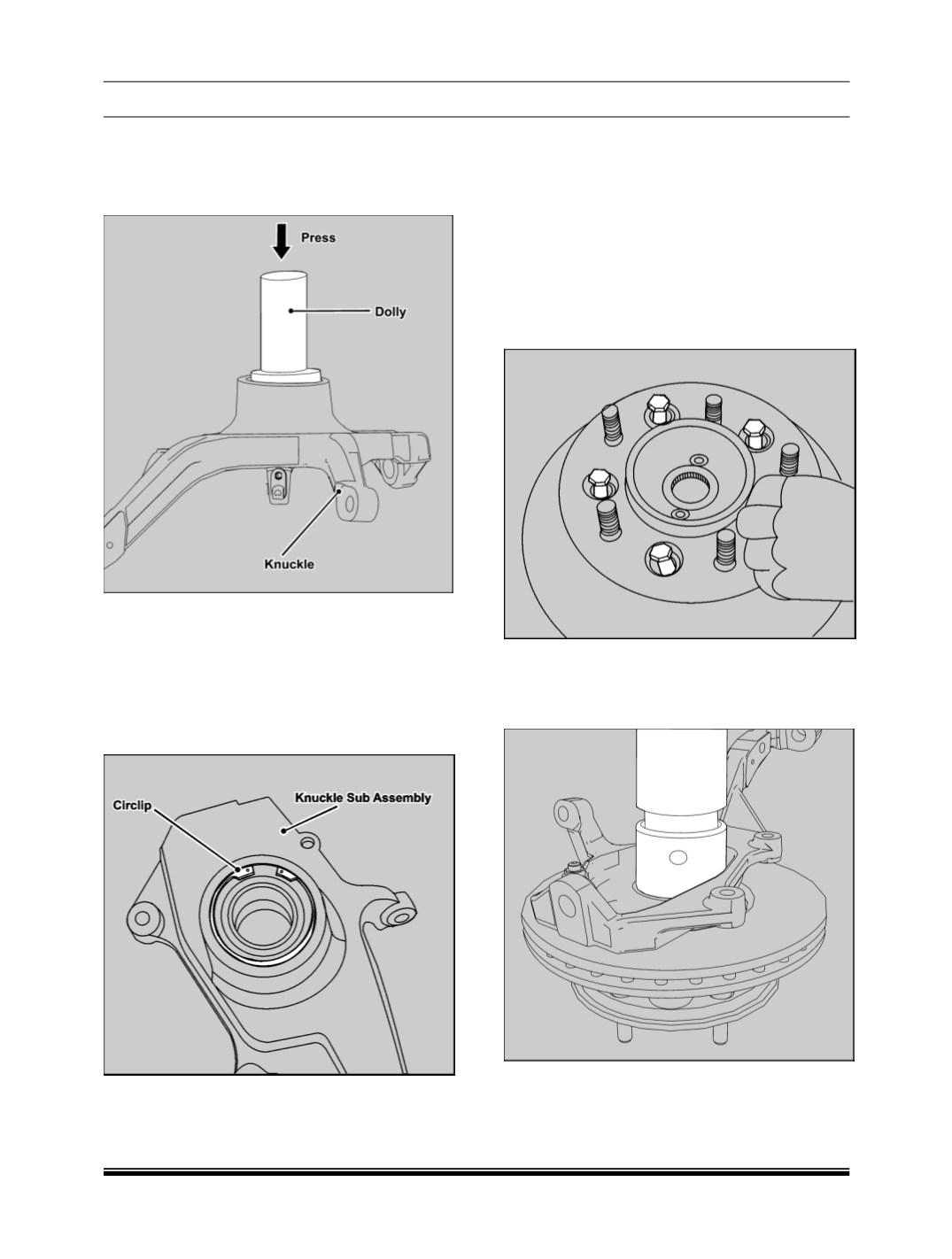

1. Press the Wheel Bearing into Knuckle using

the

Bearing

Pressing

Dolly

(Part

No.2870589033 14)

NOTE

Ensure bearing is getting pressed uniformly from

all direction, if bearing tilts while pressing then it

may get damaged during further pressing

operation results in higher drag.

2. Install Circlip which locks the bearing in

knuckle

NOTE

Ensure Circlip is installed after bearing pressing

done, if not used; this may cause failure of wheel

end assembly due to high cornering loads coming

on it during vehicle operation.

3. Clamp the Spindle assembly with brake disc

with the help of spindle bolts and spring

washers, Ensure proper fitment is done and

spindle bearing Dia. is not damaged. Torque

the bolts to specified torque.

(Refer service

data)

4. Take the above made assembly and press the

Knuckle into Spindle using knuckle pressing

dolly

(Part

No.287058903312

)

while

referencing the bearing ID.
