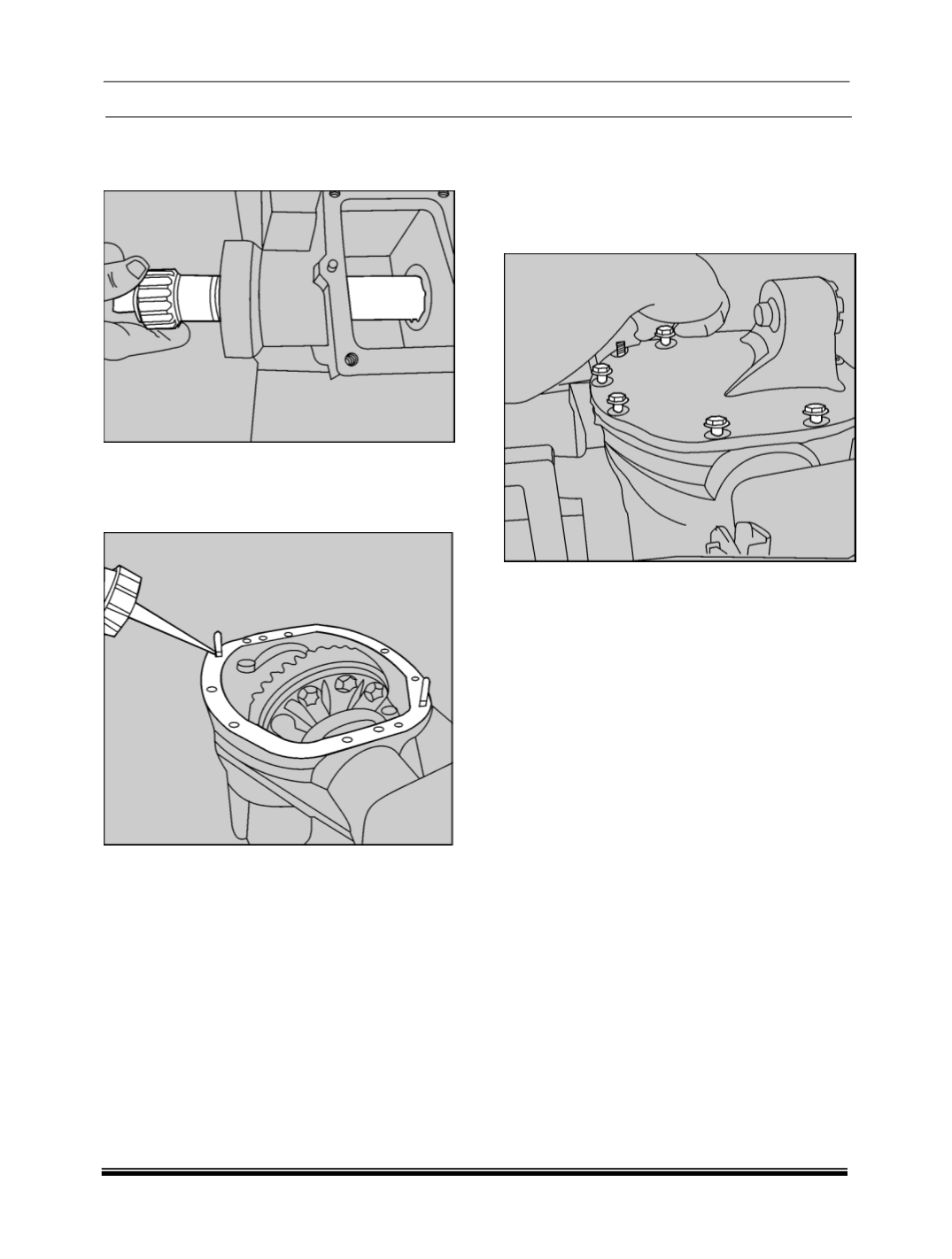

34.Once correct backlash and contact pattern is

achieved insert the axle intermediate shaft.

35.Ensure the cleanliness of the carrier cover face

and apply the uniform sealant bid along the

carrier cover face avoiding the bolt holes as far

as possible.

NOTE

Use Anabond A-676 or 3M sealant

36.Install the carrier cover plate and locate it on

the cover plate mounting studs on the carrier.

Install and tighten the cover plate bolts to

specified torque.

(Refer service data for correct

torque value)

NOTE



Discard the old bolts and use new bolts for

cover plate mounting as the bolts are coming

with sealant patch on it and during tightening

sealant patch wears off.



Reusing cover bolts may leads to leakage from

cover bolts sides
